1. Projection
2. Seat holder
TIP
Make sure that the seat is properly
secured before riding.
EAUS1920

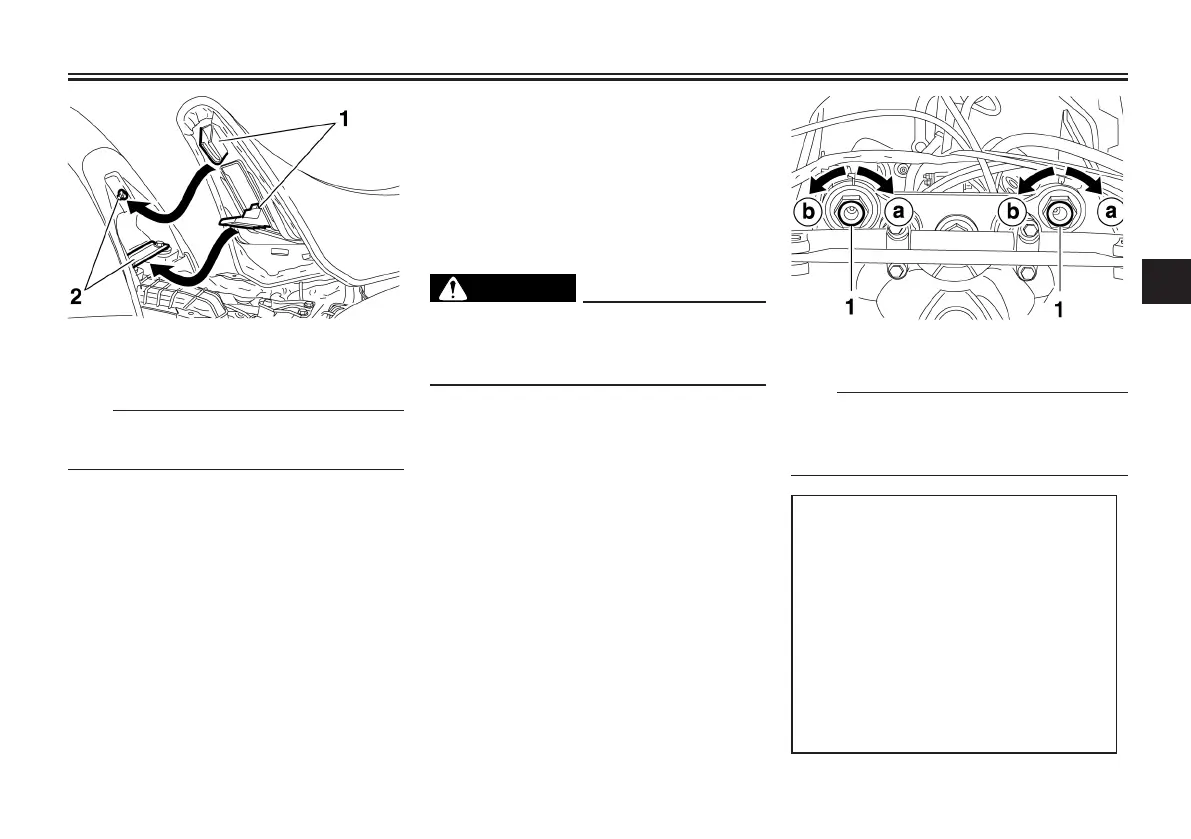

Adjusting the front fork
For XT660Z:
This front fork is equipped with spring
preload adjusting bolts.
EWA10180
Always adjust both fork legs
equally, otherwise poor handling
and loss of stability may result.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting bolt on each fork leg in
direction (a). To decrease the spring
preload and thereby soften the sus-
pension, turn the adjusting bolt on
each fork leg in direction (b).
1. Spring preload adjusting bolt
TIP
Use the 10 mm hexagon wrench
included in the owner’s tool kit to turn
the adjusting bolts.
Spring preload setting:
Minimum (soft):
0 complete turn(s) in direction
(b)*
Standard:
22 complete turn(s) in direction
(b)*
Maximum (hard):
27 complete turn(s) in direction
(b)*
* With the adjusting bolt fully turned
in direction (a)
INSTRUMENT AND CONTROL FUNCTIONS
3-17
3
56P-F8199-E0 30/6/10 09:24 Página 35
