Instrument and control functions
3-6
3
Try to reset the traction control system
and the lights by following the proce-
dures under “Resetting” on page 3-24.
EAU54682
Immobilizer system indicator
light “ ”
When the key is turned to “OFF” and
30 seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”. The indicator light should
come on for a few seconds, and then
go off.
If the indicator light does not come on
initially when the key is turned to “ON”,
or if the indicator light remains on, have
a Yamaha dealer check the electrical
circuit.
The self-diagnosis device also detects
problems in the immobilizer system
circuits. (See page 3-17 for an expla-
nation of the self-diagnosis device.)
EAU63143
Multi-function meter unit
The multi-function meter unit is
equipped with the following:
 speedometer
 tachometer
 clock
 fuel meter
 eco indicator
 transmission gear display
 drive mode display
 information display
 setting mode display
WARNING
EWA12423
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
settings while riding can distract the
operator and increase the risk of an
accident.
TIP
 The select switch “ / ” and
the menu switch “MENU” are lo-
cated on the left handlebar. These
switches allow you to control or
change the settings of the multi-
function meter unit.
 The key must be turned to “ON”
before you can use the handlebar
switches and buttons.

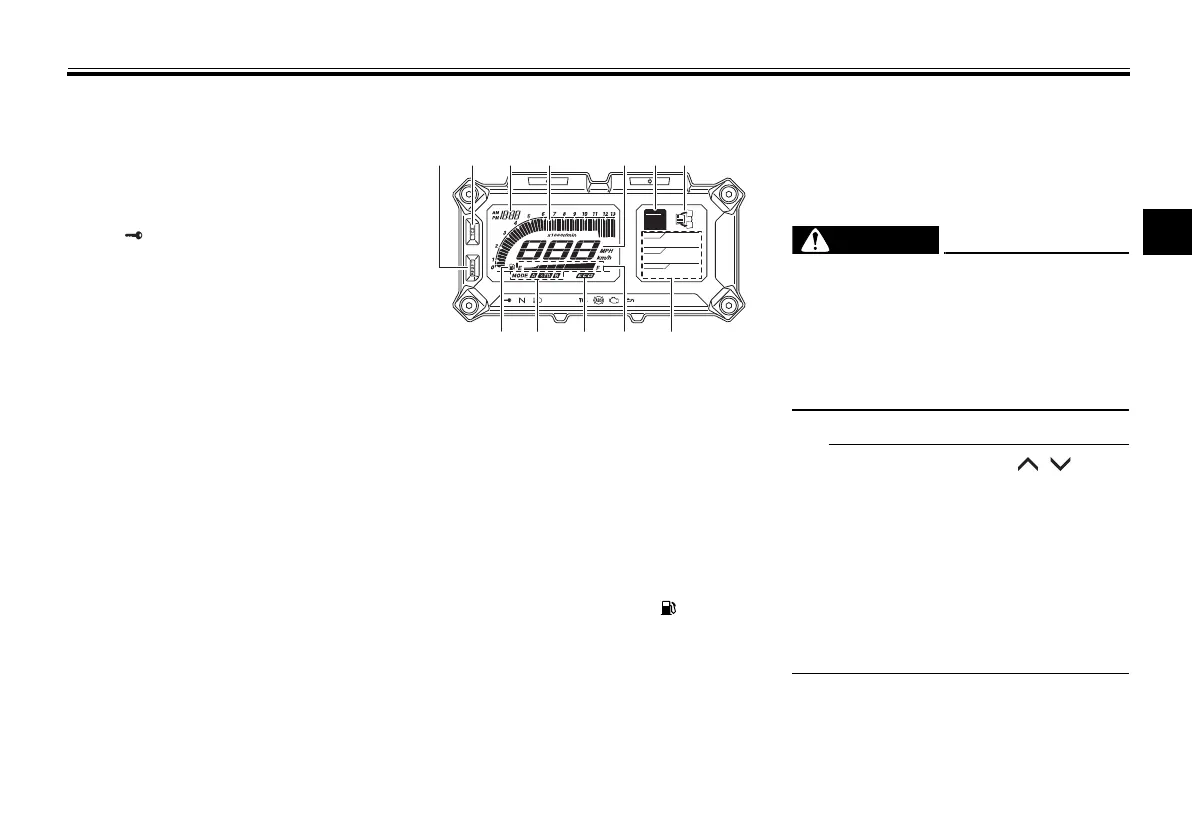

1. “RESET” button
2. “TCS” button
3. Clock
4. Tachometer
5. Speedometer
6. Transmission gear display
7. Information display selection function
8. Information display
9. Fuel meter
10.Eco indicator “ECO”
11.Drive mode display
12.Fuel level warning indicator “ ”
GEAR
N
25
A.TEMP ˚C
Lo
C.TEMP ˚C
0:00
TIME TRIP
89101112
12 3 4 56
7
