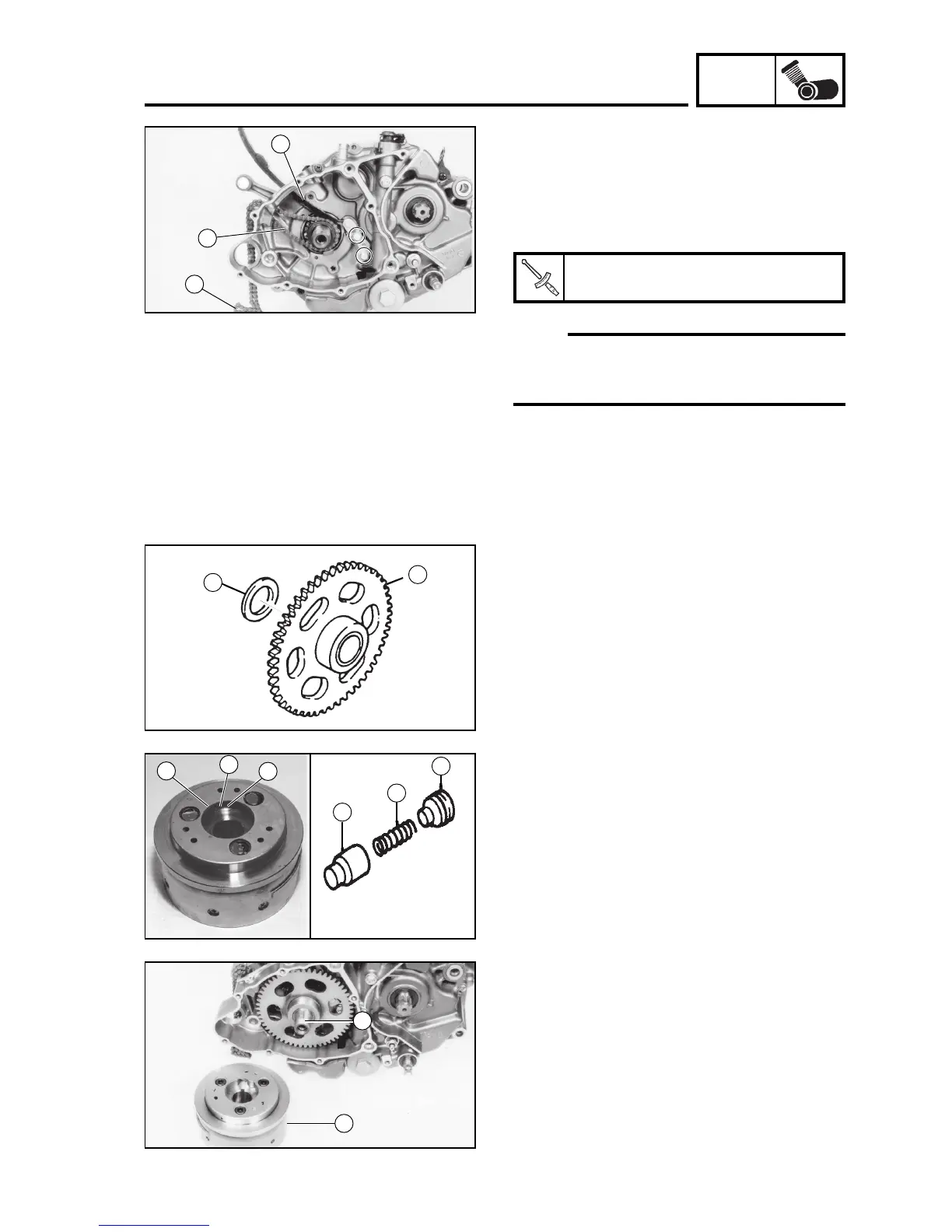

ENGINE
MAGNET ROTOR AND STARTING
GEARS
ENGINE MOUNTING AND ADJUSTMENTS
5. Install:
• Key 1
• Magnet rotor 2
4. Install:
• Driving pin 1
• Spring 2
• Fastener 3
3. Install:
• Washer 1
• Starting gear 2 2
2. Apply:
• Engine oil 4T
(to starting gears)
1. Install:
• Chain guide 1
• Camshaft chain 2
4-73
2
1
3
Bolt (chain guide):
8N.m (0,8 Kg.m; 5,8 ft.Ib)
NOTE:
Fasten to the camshaft chain 3 using a
wire in order to prevent it from falling into
the case.
1
3
2
2
1
2
1
2
1
3

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
