FRAME
Each fork:
352 ± 10 cc
After filling, pump the fork up and
down slowly in order to distribute
the oil.

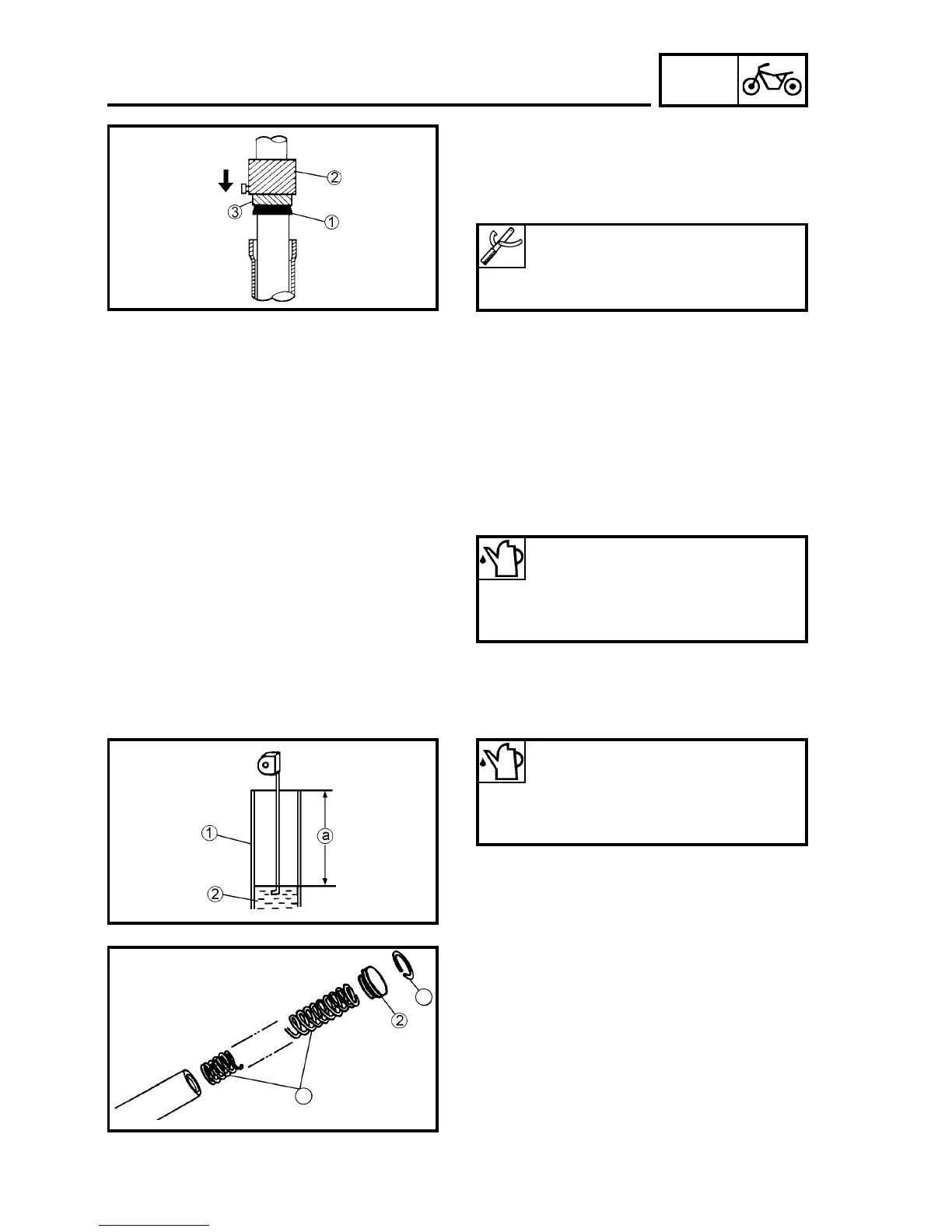

FRONT FORK
6-37
10. Install:
• Dust protector 1
Use the sliding hammer 1 and the
adapter 1.
12. Install:
• Spring 1
• Spring seat 2
• Lock ring 3
1 Internal tube
2 Oil
11. Fill:
• Front fork
Sliding hammer:
90890-01367
Adapter 36 mm:
90890-01370
Oil level at:
161 mm
From the top of the internal tube
with the external tube totally
compressed without spring.
1
3

Yamaha ttr230 Specifications

General

Engine Type	223cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke	70.0mm x 58.0mm
Compression Ratio	9.5:1
Ignition	CDI
Transmission	Constant-mesh 6-speed; multiplate wet clutch
Final Drive	Chain
Rear Suspension	Single shock; 8.7-in travel
Front Tire	80/100-21
Rear Tire	100/100-18
Length	81.3 in
Width	31.5 in
Seat Height	34.3 in
Wheelbase	54.5 in
Ground Clearance	11.6 in
Front Suspension	Telescopic fork
Rear Brake	Drum
