Yamaha TX7 - Transmission for Dump Request

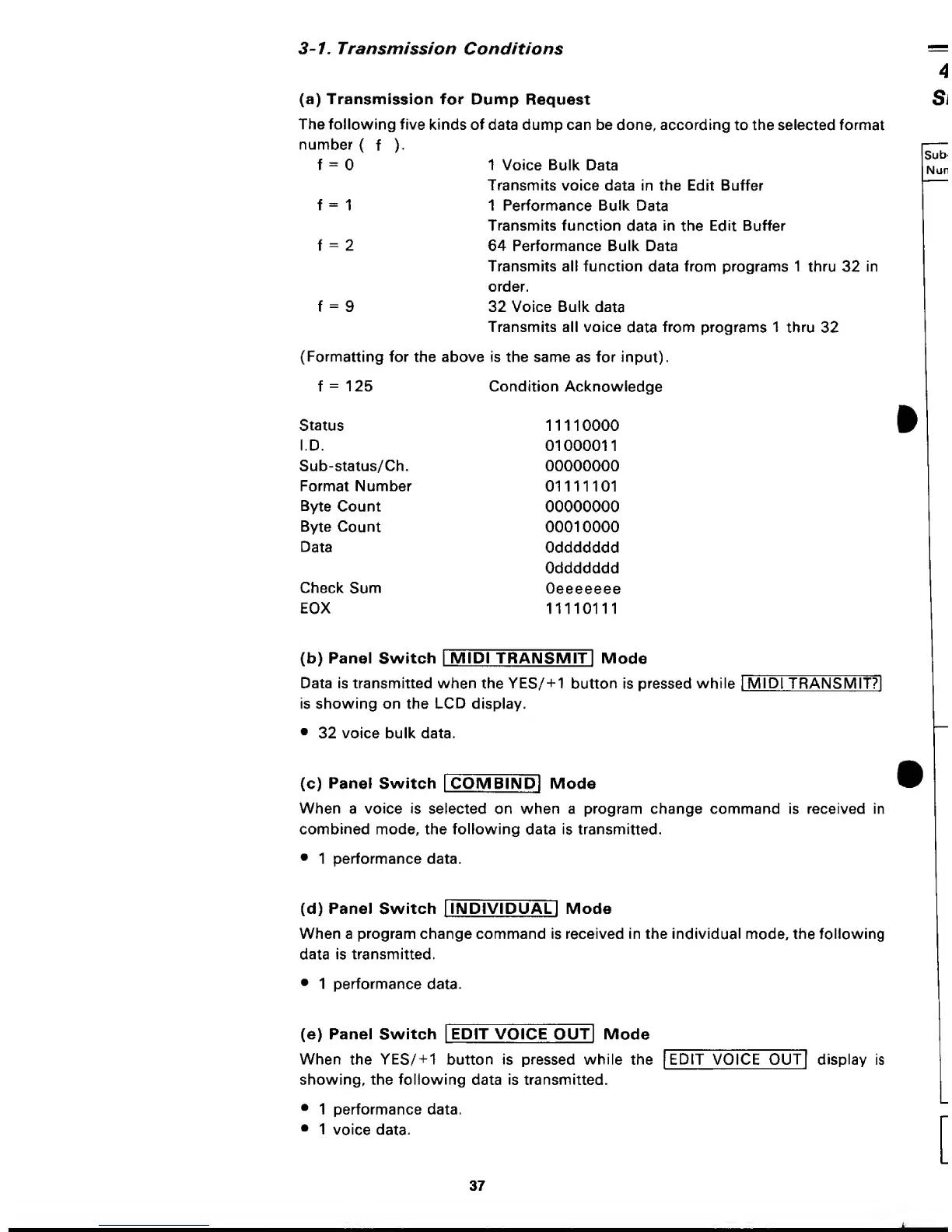

3-1.
Transmission
Conditions
(a) Transmission for
Dump Request
The
following five
kinds of data dump can be done, according
to
the selected format
number
(
f
).
f
=
1 Voice Bulk
Data
Transmits
voice data in the Edit Buffer
f
=
1 1 Performance Bulk
Data
Transmits function
data
in
the Edit
Buffer
f
=
2
64 Performance Bulk Data
Transmits all function
data
from
programs
1
thru
32
in
order.
f
=
9 32 Voice Bulk
data
Transmits all voice
data
from
programs
1
thru
32
(Formatting
for the above is the same
as
for
input).
f
=
125 Condition
Acknowledge
Status
1111 0000
I.D.
01000011
Sub-status/Ch.
00000000
Format
Number
01111101
Byte Count
00000000
Byte
Count
00010000
Data
Oddddddd
Oddddddd
Check
Sum
Oeeeeeee
EOX
11110111
(b) Panel
Switch
I
IVIIPI TRANSMIT!
Mode
Data is transmitted when
the
YES/
+
1
button
is
pressed
while
IMIDI
TRANSIVIIT?!
is showing on the
LCD
display.
•
32 voice bulk data.
(c)
Panel Switch
ICOMBIND
l
Mode
When a voice
is
selected on when a program change command is received in
combined mode, the following
data is transmitted.
•
1 performance data.
(d) Panel Switch IINDIVIDUALl Mode
When a program change command
is
received in the individual
mode, the
following
data is
transmitted.
•
1 performance
data.
(e)
Panel Switch [EDIT VOICE OUT| Mode
When
the
YES/
+
1
button is pressed while
the
showing, the following
data
is transmitted.
•
1 performance data.
•
1 voice
data.
EDIT
VOICE
OUT display
is
37
