The
DX7
itself also
has
32
voice
memories,
but
only a
single
function
memory.
Thus,
if a
new
voice
is
selected
which
requires
a
different
set
of
function
parameters,
these
must
be
re-programmed
via the
DX7
panel
controls.
The
TX7
supplies
the
DX7
with a
complete
set
of
32
function
memories
corresponding
to
each
voice.
In
the case
of
the
DX9,
which
only
has
20
voice
memories,
the
TX7's
first 20
(1
through
20)
DX
function
memories
apply,
and
only
those
functions
which the
DX9
incorporates
can be
used.
In
the
basic
system
connection
configuration
given in
the
previous
section,
each
time a
new
voice is
selected
on
the
DX
synthesizer,
the
corresponding
function
memory
in
the
TX7 is
called,
and
the
parameters
it
contains
are
automatically
sent
to
the
synthesizer
via the
MIDI
interface.
The TX7
also
has
voice
and
function
edit
buffer
memories,
which
contain
the
voice
and
function
data
in use.

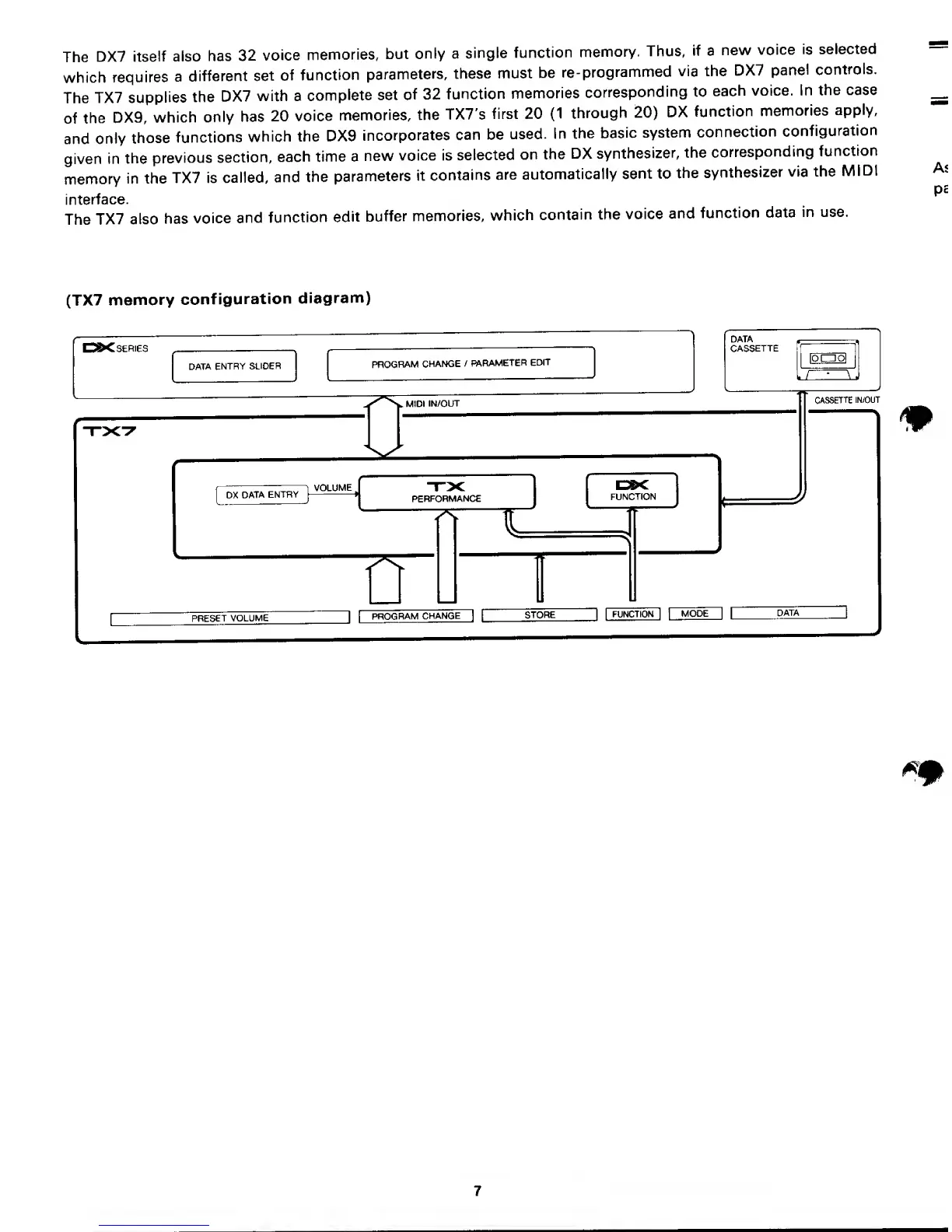

(TX7
memory
configuration
diagram)
SERIES
DATA
ENTRY
SLIDER
PROGRAM
CHArWE
/
R^RAMETER
EDIT
MIDI
IN/OUT
DX
DATA
ENTRY
VOLUME
PERFORMANCE
—Ts;
—
FUNCTION
CASSETTE
IN/OUT
PRESET
VOLUME
]
I
PROGRAM
CHANGE
STORE
I
I
FUNCTION
|
|
MODE
|
\_
7
