Yamaha VF250LA User Manual

5-37
(* 1) Select either speedometer or GPS (NMEA0183) If GPS is connected, speed hose is not required. (* 2) Water separator (Market obtainable)
(*1)
(*2)
Fuel tank
Speed hose (* 1)
OUT
IN
688-82520-00
6Y5-83553-F1 :
8 m (26 ft)
6Y5-83553-M0 :
2.5 m (8 ft)
6Y5-85752-02
6Y5-85721-F0
6Y5-87122-S0
68F-82553-50 : 5 m (16 ft)
-60 : 6 m (19 ft) -70 : 7 m (23 ft) -80 : 8 m (26 ft) -90 : 9 m (29 ft) -A0 : 10.5 m (34 ft)
6R3-85721-30 : 3 m (10 ft)
-50 : 5 m (16 ft) -80 : 8 m (26 ft)
6Y5-8350T-03
Engine Oil Tank
FUEL
SPEED
TACH
Remote
Oil Tank
GPS
NMEA
0183
(+)

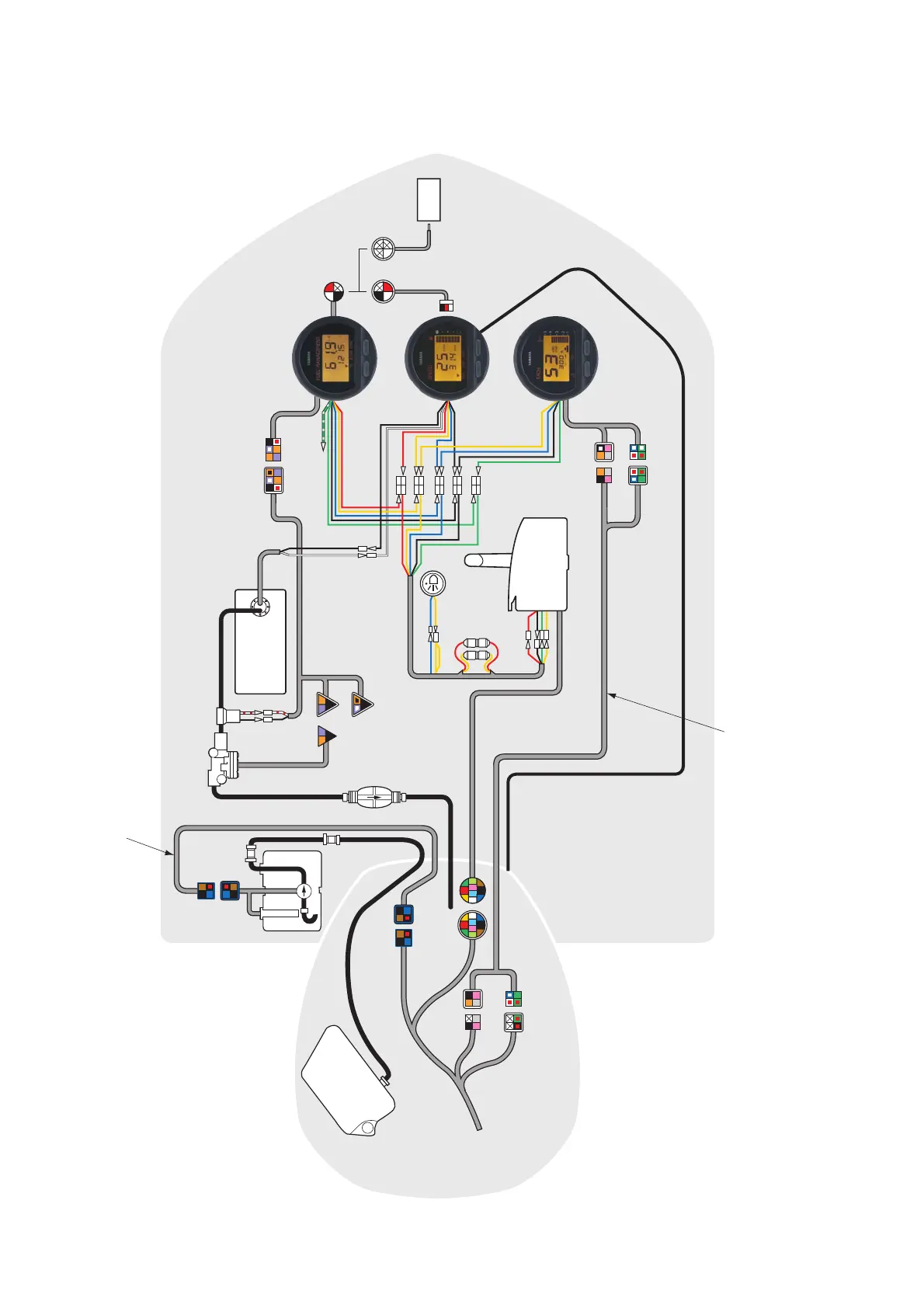

WIRING DIAGRAMS
DIGITAL METER (6Y5)
SINGLE ENGINE APPLICATION
250G
