PERIODIC MAINTENANCE AND MINOR REPAIR
2
1
ZAUM00**
1. Headlight coupler
2. Bulb cover
3. Remove the headlight bulb holder
by turning it counterclockwise, and
then remove the defective bulb.
1
ZAUM00**
1. Headlight bulb holder
EWA10790
w
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooled
down.
4. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.
ECA10660
cC
Do not touch the glass part of the
headlight bulb to keep it free from oil,
otherwise the transparency of the
glass, the luminosity of the bulb, and
the bulb life will be adversely affected.
EAU23780
Replacing the headlight bulb
This model is equipped with a quartz
bulb headlight. If the headlight bulb burns
out, replace it as follows.

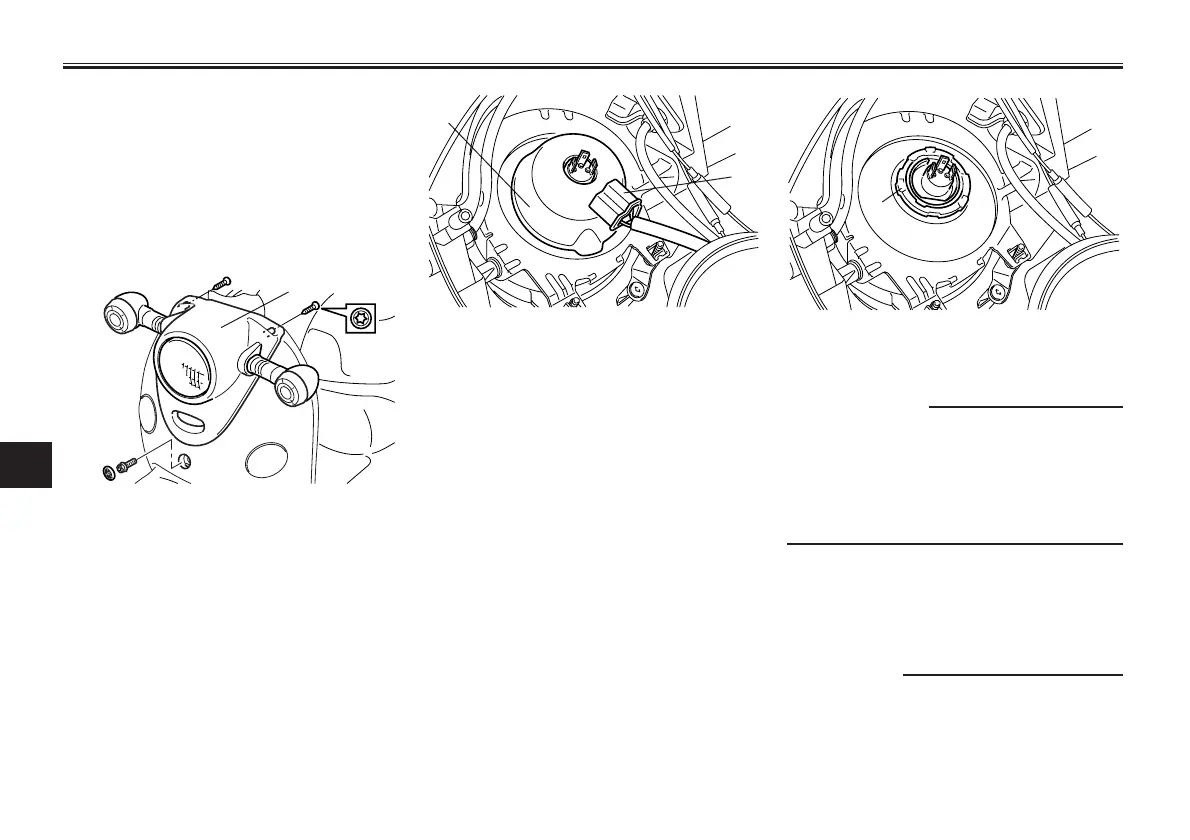

1. Remove the headlight unit by re-
moving the screws.
1
ZAUM00**
1. Headlight unit
2. Disconnect the headlight coupler,
and then remove the bulb cover.
Headlight bulb, replacing<IXE>
