PERIODIC MAINTENANCE AND MINOR REPAIR
Rear brake lever free play, adjusting<IXE>
Brake shoes, checking<IXE>
EAU22170
Adjusting the rear brake lever
free play
1
ZAUM00**

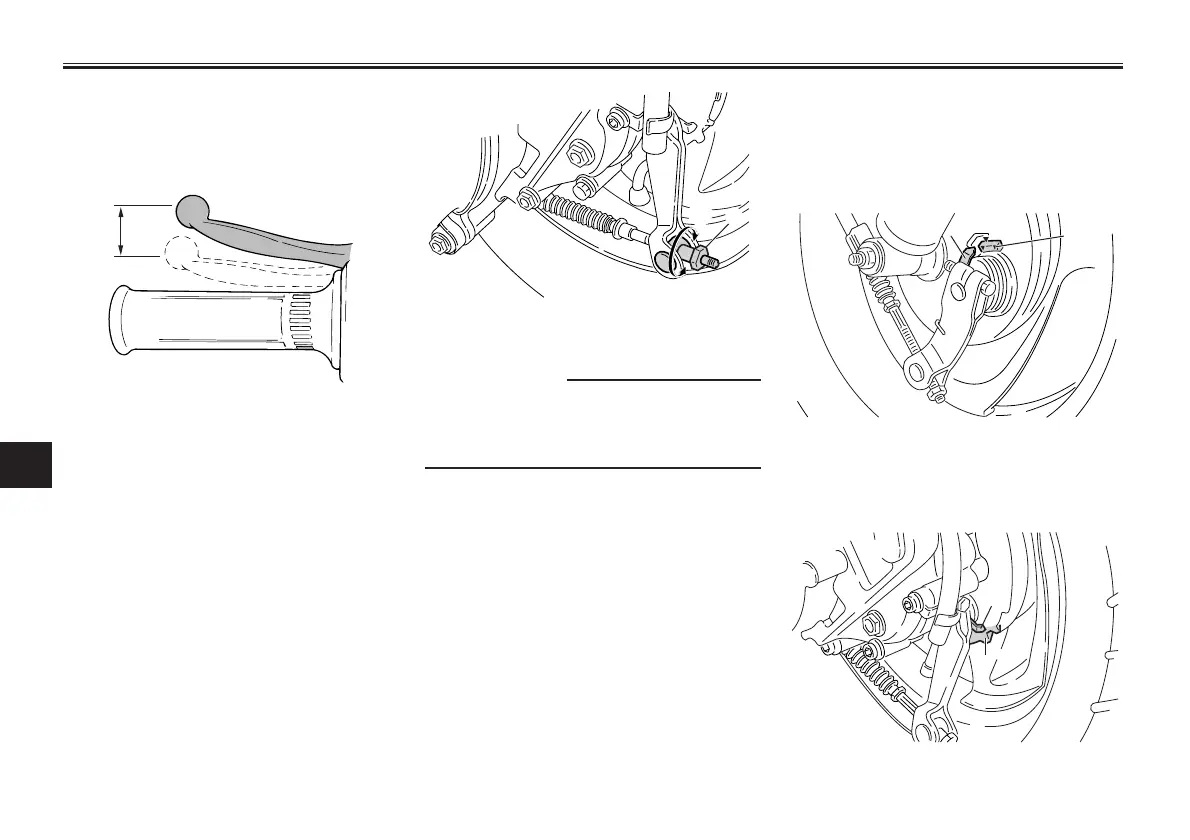

1. Rear brake lever free play
The brake lever free play should mea-
sure 10~20 mm (0.039~0.79 in) as
shown. Periodically check the brake le-
ver free play and, if necessary, adjust it
as follows.
To increase the brake lever free play,
turn the adjusting nut at the brake shoe
plate in direction (a). To decrease the
brake lever free play, turn the adjusting
nut in direction (b).
1
(b)
(a)
ZAUM00**
1. Adjusting nut
EWA10650
w
If proper adjustment cannot be ob-
tained as described, have a Yamaha
dealer make this adjustment.
EAU22361
Checking the front and rear
brake shoes
Front
2
1
ZAUM00**
1. Wear indicator
2. Wear limit line
Rear
1
2
ZAUM00**
1. Wear indicator
2. Wear limit line
