PERIODIC MAINTENANCE AND MINOR REPAIR
6-36
6
2. Lift the wheel up between the fork
legs.
N
TE:
Make sure that there is enough space
between the brake pads before insert-
ing the brake disc and that the slot in
the speedometer gear unit fits over the
retainer on the fork leg.
3. Insert the wheel axle.
4. Lower the front wheel so that it is
on the ground.
5. Tighten the wheel axle to the spec-
ified torque.
6. Tighten the front wheel axle pinch
bolt to the specified torque.
7. Push down hard on the handlebar
several times to check for proper
fork operation.
8. Connect the speedometer cable.

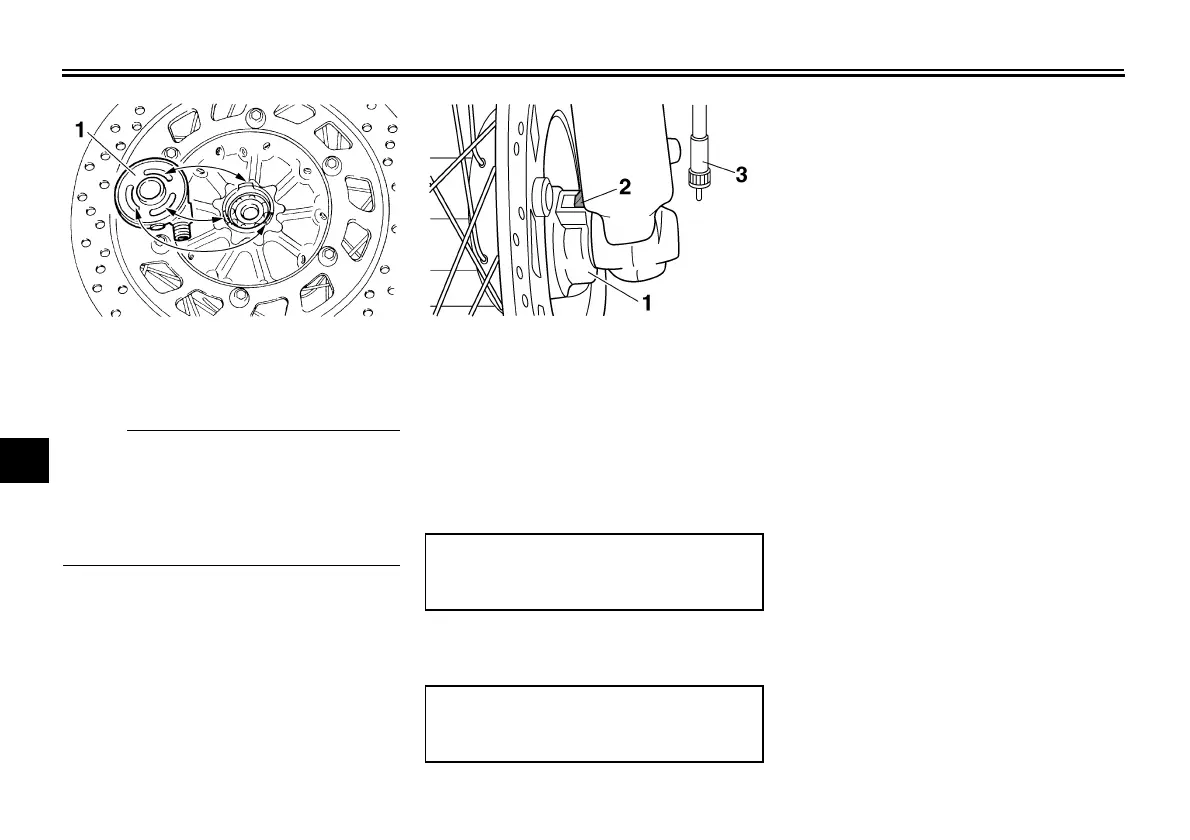

1. Speedometer gear unit 1. Speedometer gear unit
2. Retainer
3. Speedometer cable
Tightening torque:
Wheel axle:
59 Nm (5.9 m·kgf, 43 ft·lbf)
Tightening torque:
Front wheel axle pinch bolt:
20 Nm (2.0 m·kgf, 14 ft·lbf)
