Air filter cleaning
NOTE:
_
There is a check hose at the bottom of the air
filter case. If dust or water collects in this
hose, empty the hose and clean the air filter
element and air filter case.
_

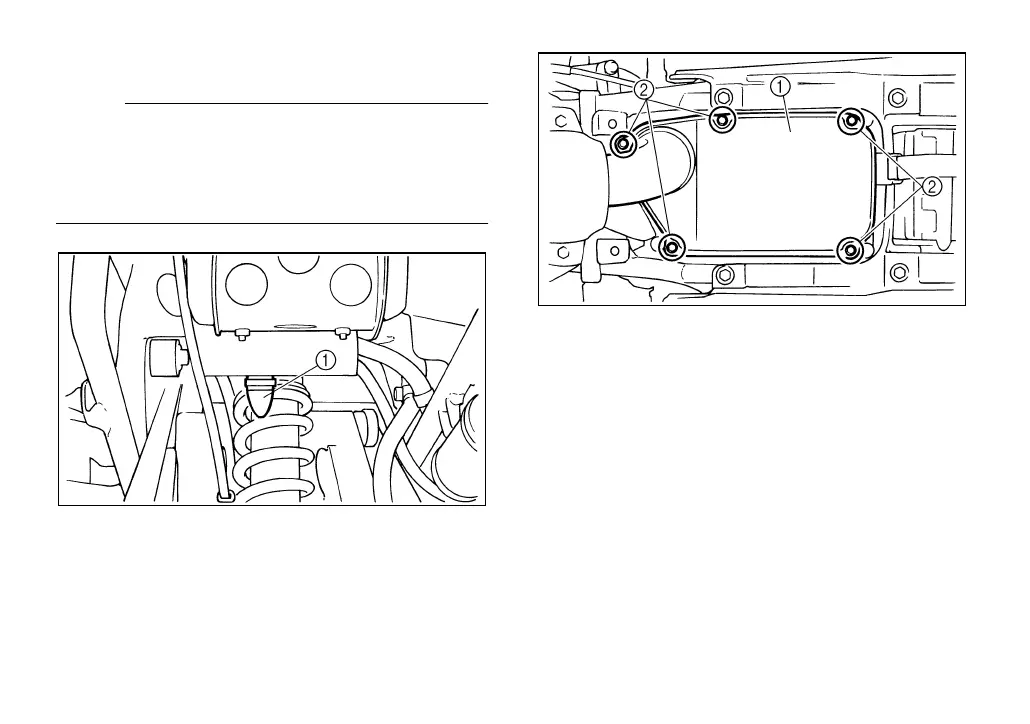

1. Check hose
1. Remove the seat. (See page 4-12 for
seat removal and installation proce-
dures.)
2. Remove the air filter case cover by re-
moving the screws.
1. Air filter case cover 2. Screw (× 5)
3. Remove the air filter element.
4. Remove the air filter element from the
frame.
