11. Pull the foam air filter element over its
frame, and then install the lock plate.
12. Insert the primary air filter into the air filter
case, and then install the air filter case
cover by hooking the holders onto the air
filter case.
13. Install the hood.
To replace the secondary air filter
1. Remove the hood.
2. Remove the primary air filter.
3. Remove the secondary air filter by re-
moving the screws.
4. Insert a new air filter element and tighten
the screws.
5. Install the primary air filter.
6. Install the hood.
EBU37520
Air filter check hoses
There is a check hose at the bottom of the air
filter case and at the bottom of the air intake
duct. If dust or water collects in a check hose,

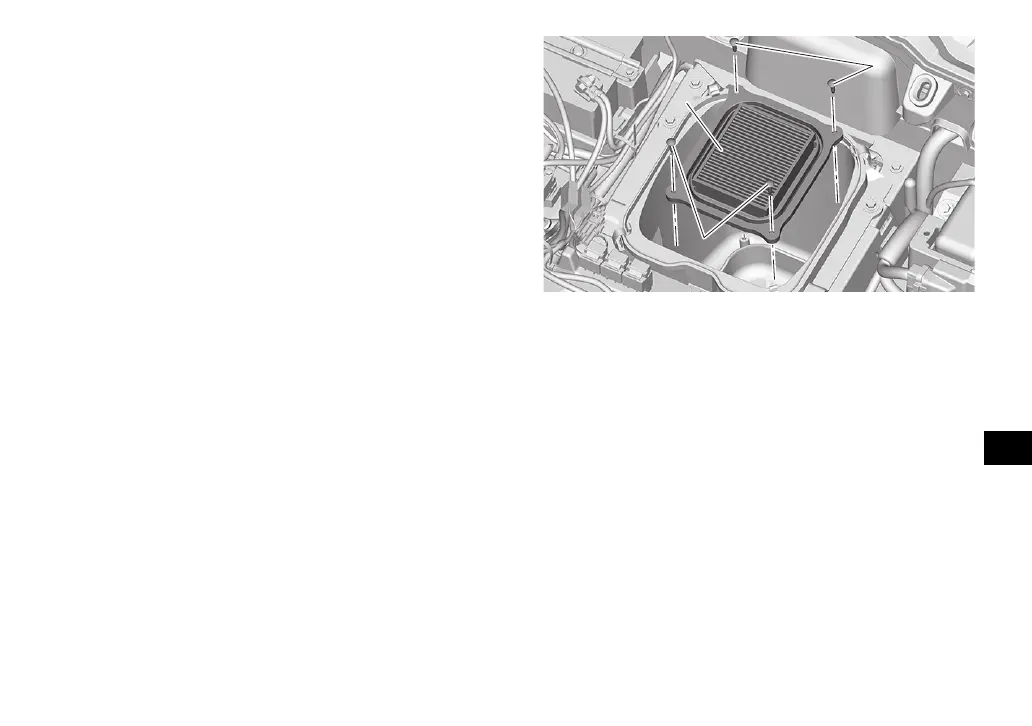

1. Secondary air filter
2. Screw
