TIP
When adjusting the damping force settings,
turn the adjuster in direction (a) until it stops,
and then count the turns in direction (b).
Slow compression damping force
To increase the slow compression damping
force and thereby harden the compression
damping, turn the slow compression damp-
ing force adjusting screw in direction (a). To
decrease the slow compression damping
force and thereby soften the compression
damping, turn the adjusting screw in direction
(b).

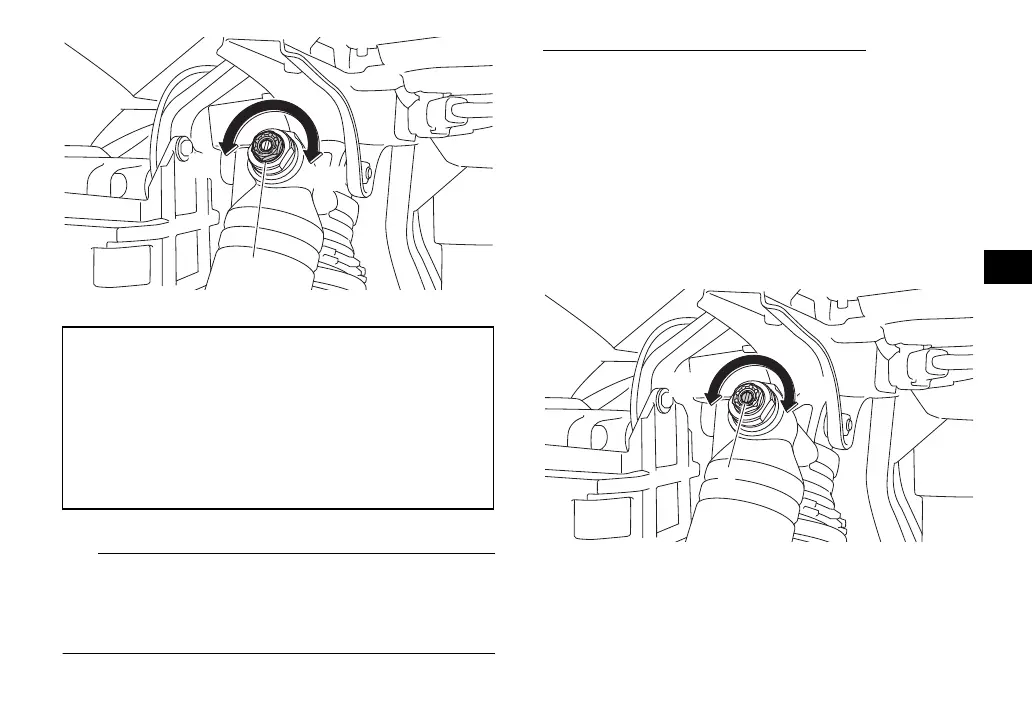

1. Fast compression damping force adjusting bolt
Fast compression damping force settings:
Minimum (soft):
1 3/4 turn(s) out
Standard:
1 3/4 turn(s) out
Maximum (hard):
Adjuster fully turned in
(b)
(a)
1
1. Slow compression damping force adjusting screw
(b)
(a)
1
