Yamaha WR450FB 2012 - Installing the Shift Guide and Shift Lever Assembly; Installing the Shift Shaft

SHIFT SHAFT
6-50
EAS1DX3183

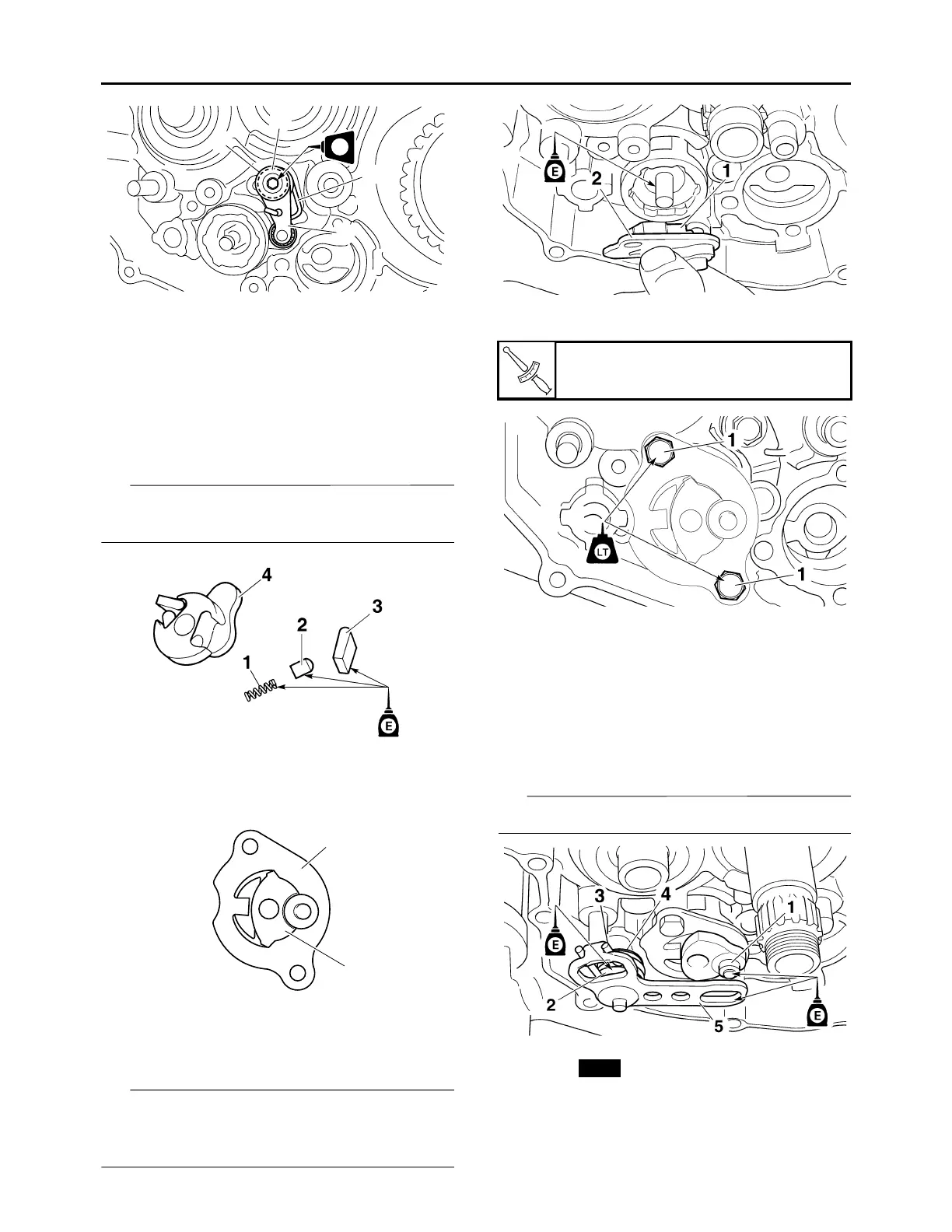

INSTALLING THE SHIFT GUIDE AND SHIFT
LEVER ASSEMBLY
1. Install:
•Spring “1”
•Pawl pin “2”
•Pawl “3”
To shift lever “4”.
TIP
Apply the engine oil on the spring, pawl pin and
pawl.
2. Install:
•Shift lever assembly “1”
To shift guide “2”.
3. Install:
•Shift lever assembly “1”
•Shift guide “2”
TIP
•The shift lever assembly is installed at the
same time as the shift guide.
•Apply the engine oil on the segment bolt shaft.
4. Install:
•Shift guide bolt “1”
EAS25450
INSTALLING THE SHIFT SHAFT
1. Install:
•Roller “1”
•Collar “2”
•Shift shaft spring “3”
•Washer “4”
•Shift shaft “5”
TIP
Apply the engine oil on the roller and shift shaft.
2. Install:
•Oil seal
•Shift pedal
1
2
3
4
LT
2
1
Shift guide bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
T
R
.
.
New
