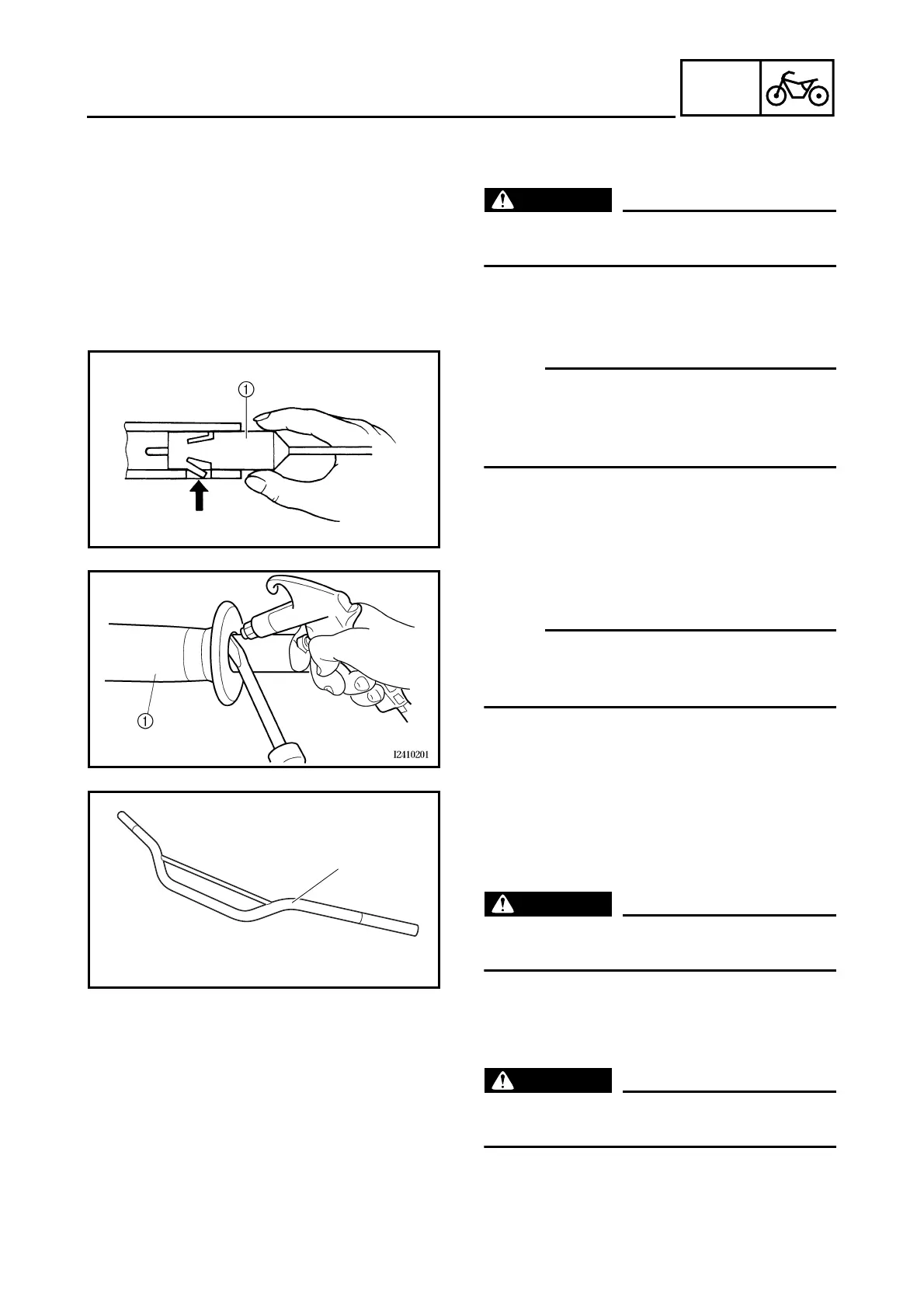

Yamaha XT660R S Service Manual

4 - 65
CHAS
HANDLEBAR
EAS00666
REMOVING THE HANDLEBAR
1. Stand the motorcycle on a level surface.
WARNING
_
Securely support the motorcycle so that
there is no danger of it falling over.
2. Remove:
• front brake light switch
1
• clutch switch
NOTE:
• Push the fastener to remove the front brake
light switch from the brake master cylinder.
• Push the fastener to remove the clutch
switch from the clutch lever.
3. Remove:
• handlebar grip
1
NOTE:
_
Blow compressed air between the handlebar
and the handlebar grip, and gradually push the
grip off the handlebar.
EAS00668
CHECKING THE HANDLEBAR
1. Check:
• handlebar
1
Bends/cracks/damage
→
Replace.
WARNING
_
Do not attempt to straighten a bent handle-
bar as this may dangerously weaken it.
1
EAS00671
INSTALLING THE HANDLEBAR
1. Stand the motorcycle on a level surface.
WARNING
_
Securely support the motorcycle so that
there is no danger of it falling over.
