Yamaha XVS650 Supplementary Service Manual

–21–
HEADLIGHT BEAM ADJUSTMENT
INSP
ADJ
a
b
***************************************
***************************************
a
b
EB305020

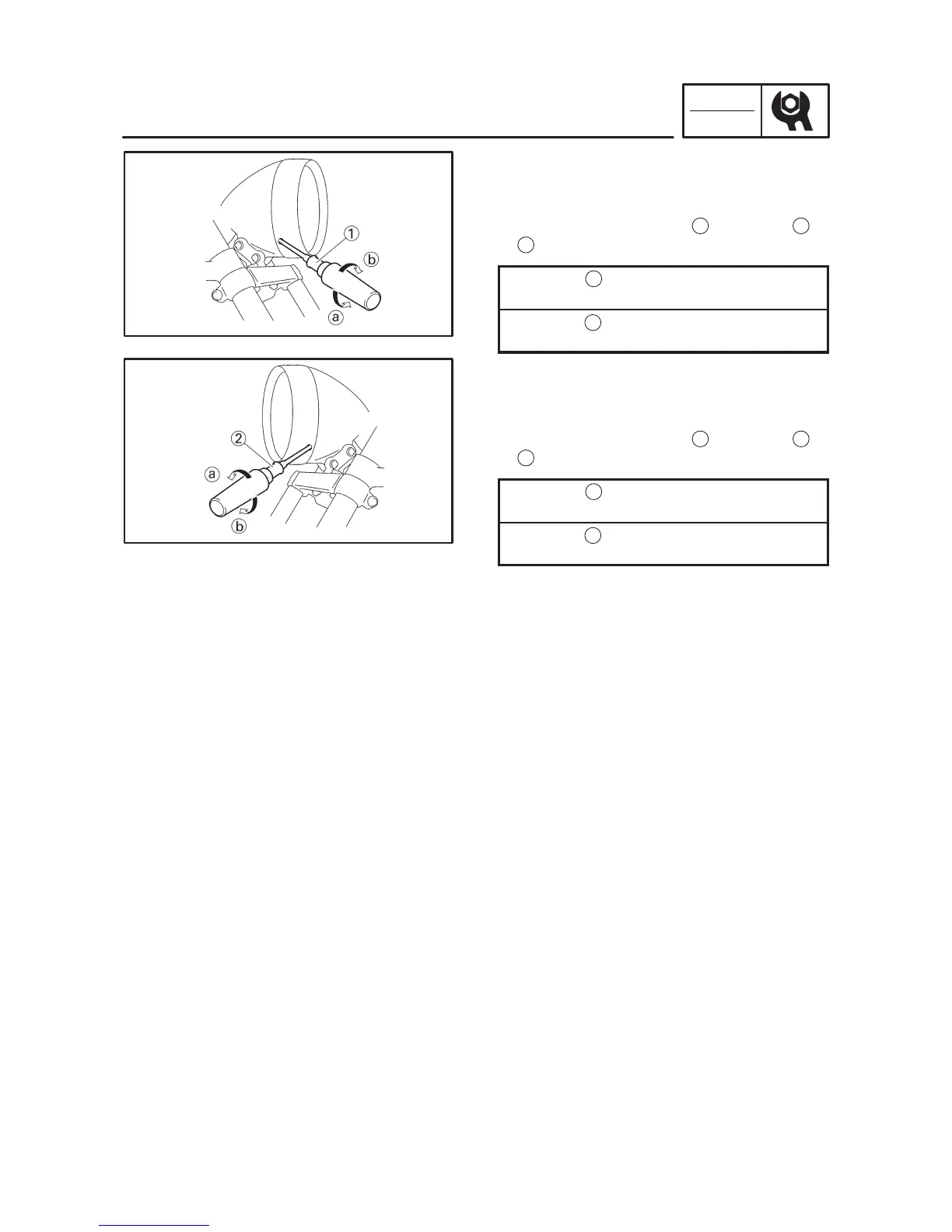

HEADLIGHT BEAM ADJUSTMENT
1. Adjust:
 headlight beam (vertically)
a. Turn the adjusting screw
1
in direction
a
or
b
.
Direction  Headlight beam is
raised.
Direction  Headlight beam is
Lowered.
2. Adjust:
 headlight beam (horizontally)
a. Turn the adjusting screw
2
in direction
a
or
b
.
Direction  Headlight beam moves
to the right.
Direction  Headlight beam moves
to the left.

Yamaha XVS650 Specifications

General

Compression Ratio	9.0:1
Ignition	TCI
Transmission	5-speed
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Tire	130/90-16
Rear Tire	170/80-15
Front Brakes	Single disc
