PERIODIC MAINTENANCE AND ADJUSTMENT
7-13
7
5. Remove the oil filter element and
O-ring.
6. Install a new oil filter element and
the O-ring.
TIP
Make sure that the O-ring is properly
seated.
7. Install the oil filter element covers
by installing the bolts, and then
tighten them to the specified
torque.
8. Install the engine oil drain bolt and
its new gasket, and then tighten
the bolt to the specified torque.
9. Refill with the specified amount of
the recommended oil, and then in-
stall and tighten the oil filler cap.
TIP
Be sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.
NOTICE
ECA11620
● In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-

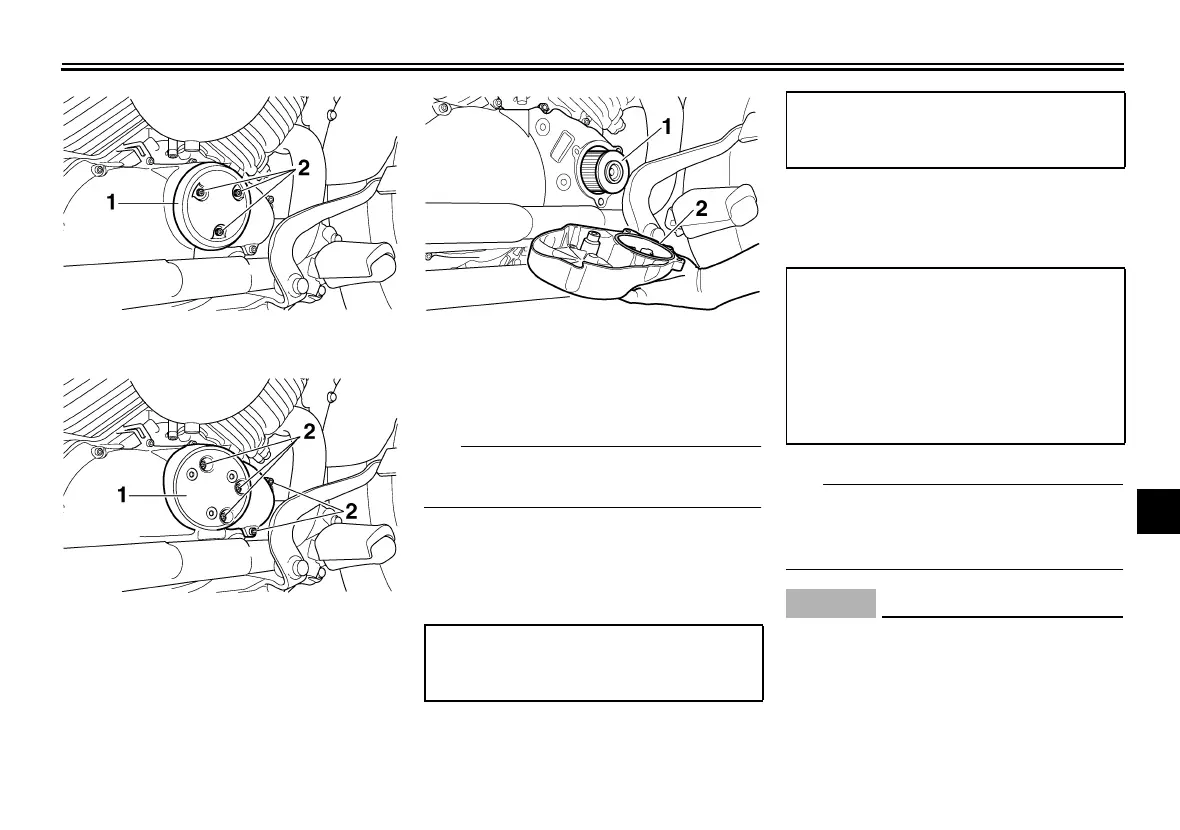

1. Outer oil filter element cover
2. Bolt
1. Inner oil filter element cover
2. Bolt
1. Oil filter element
2. O-ring
Tightening torque:
Oil filter element cover bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf, 31 ft·lbf)
Recommended engine oil:
See page 9-1.
Oil quantity:
Without oil filter element replace-
ment:
2.60 L (2.75 US qt, 2.29 Imp.qt)
With oil filter element replacement:
2.80 L (2.96 US qt, 2.46 Imp.qt)
