PERIODIC MAINTENANCE AND ADJUSTMENT
7-16
7

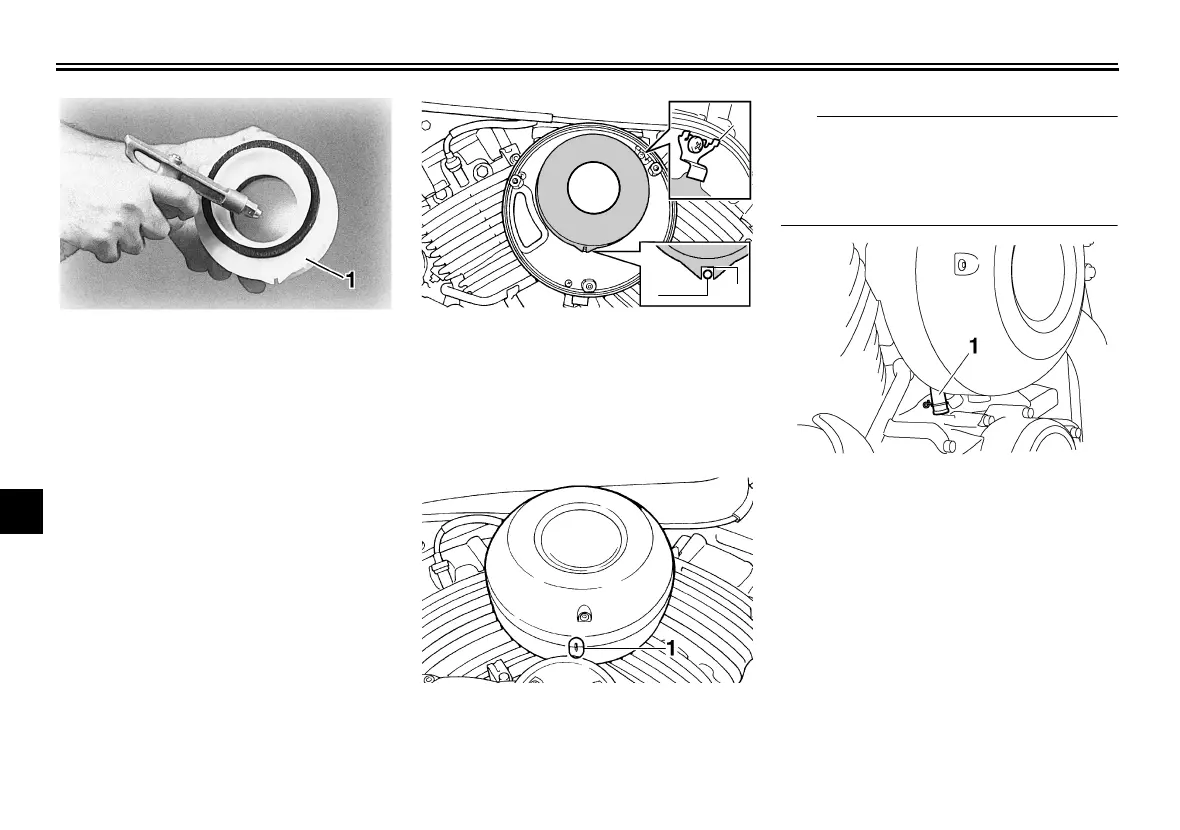

4. Insert the air filter element into the
air filter case as shown. NOTICE:
Make sure that the air filter ele-
ment is properly seated in the
air filter case. The engine
should never be operated with-
out the air filter element in-
stalled, otherwise the piston(s)
and/or cylinder(s) may become
excessively worn.
[ECA10481]
5. Install the air filter case cover by
aligning the match marks and in-
stalling the bolts.
TIP
If dust or water collects in the air filter
check hose, remove the clamp from it,
and then remove the plug to drain the
hose.
1. Air filter element 1. Air filter element holder
2. Projection
3. Slot
1. Match marks
1
23
1. Air filter check hose
