FRONT AND REAR WHEELS

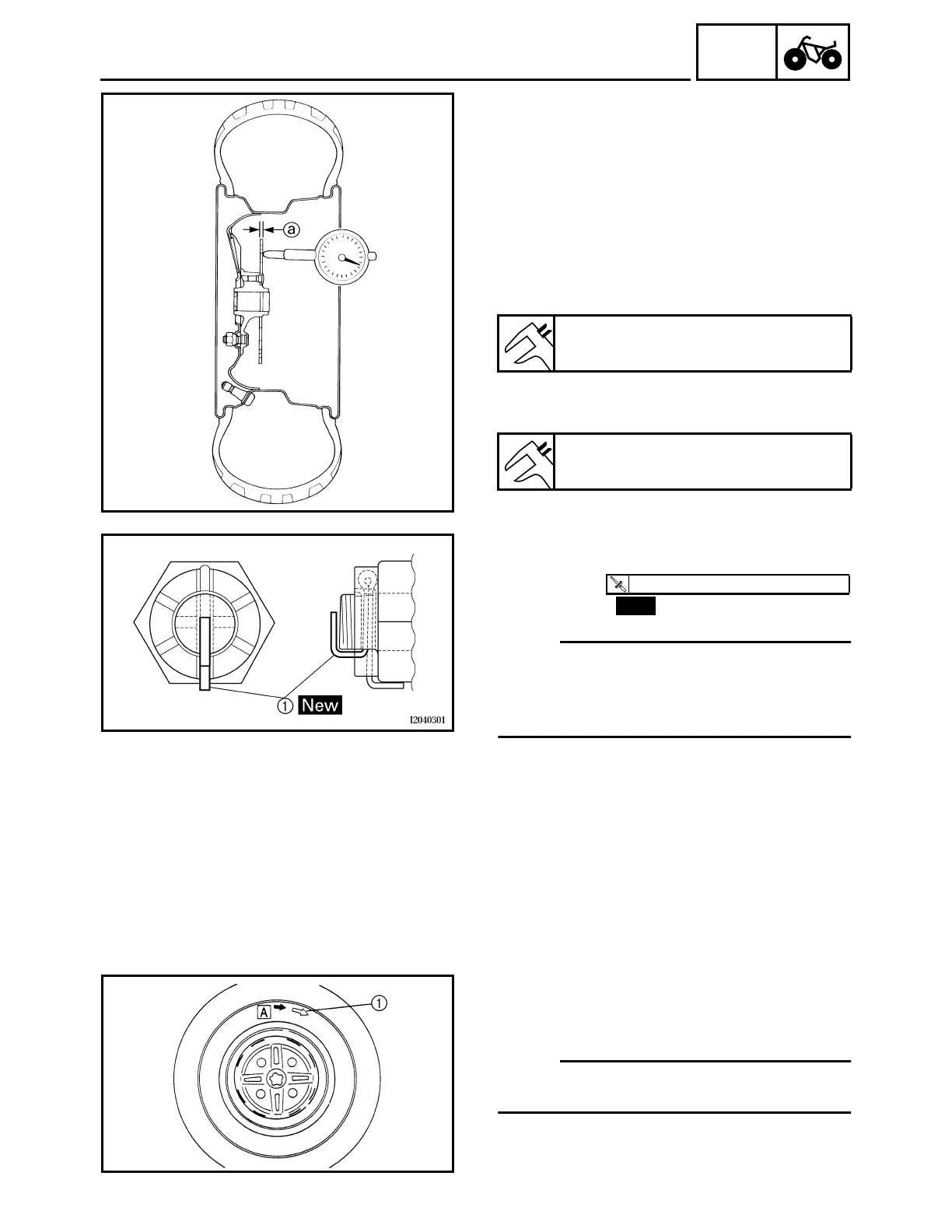

CHECKING THE BRAKE DISCS
1.Check:
●
Brake disc
Galling/damage → Replace.
2.Measure:
●
Brake disc deflection
Out of specification → Check the wheel
runout.
If wheel runout is within the limits, replace
the brake disc.
●
Brake disc thickness a
Out of specification → Replace.
Brake disc maximum deflection:
0.15 mm (0.006 in)
Brake disc minimum thickness:
3 mm (0.12 in)
INSTALLING THE WHEEL HUBS
1.Install:
●
Axle nut
●
Cotter pin 1
OTE:
Do not loosen the axle nut after torquing it. If
the axle nut groove is not aligned with the
cotter pin hole, align the groove with the hole
by tightening the axle nut.
T
R
.
.
150 Nm (15.0 m • kg, 110 ft • lb)
New
INSTALLING THE WHEELS
1.Install:
●
Wheel
OTE:
The arrow mark 1 on the tire must point in the
direction of rotation È of the wheel.
