5 - 1
COOL
RADIATOR AND THERMOSTAT
EB500000
COOLING SYSTEM
RADIATOR AND THERMOSTAT
Order Job/Part Q’ty Remarks

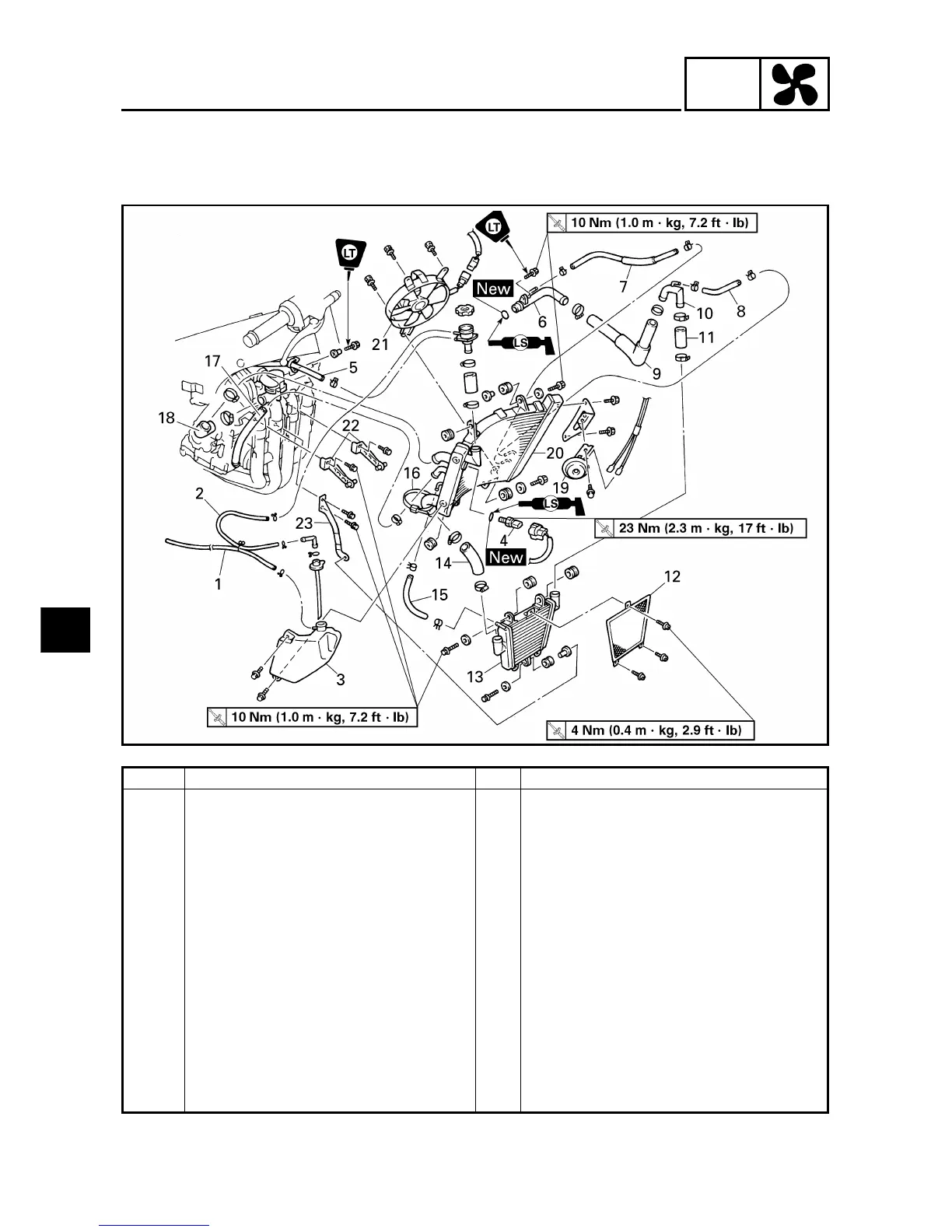

Removing the radiator
Remove the parts in the order listed.
Bottom cowling and front cowling Refer to “COWLINGS” in chapter 3.
Coolant Drain.
Refer to “CHANGING THE COOLANT”
in chapter 3.
1 Coolant reservoir breather hose 1
2 Coolant reservoir hose 1
3 Coolant reservoir 1
4 Thermo switch 1
5 Thermostat assembly breather hose 1 Disconnect.
6 Water pump inlet pipe 1
7 Water pump breather hose 1
8 Radiator outlet pipe breather hose 1
9 Water pump inlet hose 1
10 Radiator outlet pipe 1
5
To Next Page
