Hull construction material polyester resin/reinforced glass fibre
14
5.1 DIMENSIONS AND VOLUMES
Main dimensions: Length overall (LOA) 4.70 m
Hull length 4.70 m
Max. width 2.01 m
Weight without engine,
fluids or equipment. approx. 375 kg
Maximum load: Number of passengers 5 +weight of fuel 30 kg
Maximum engine power: 45kW (60 hp)
Electrical system: voltage 12V DC
5.2 LAY-OUT AND EQUIPMENT

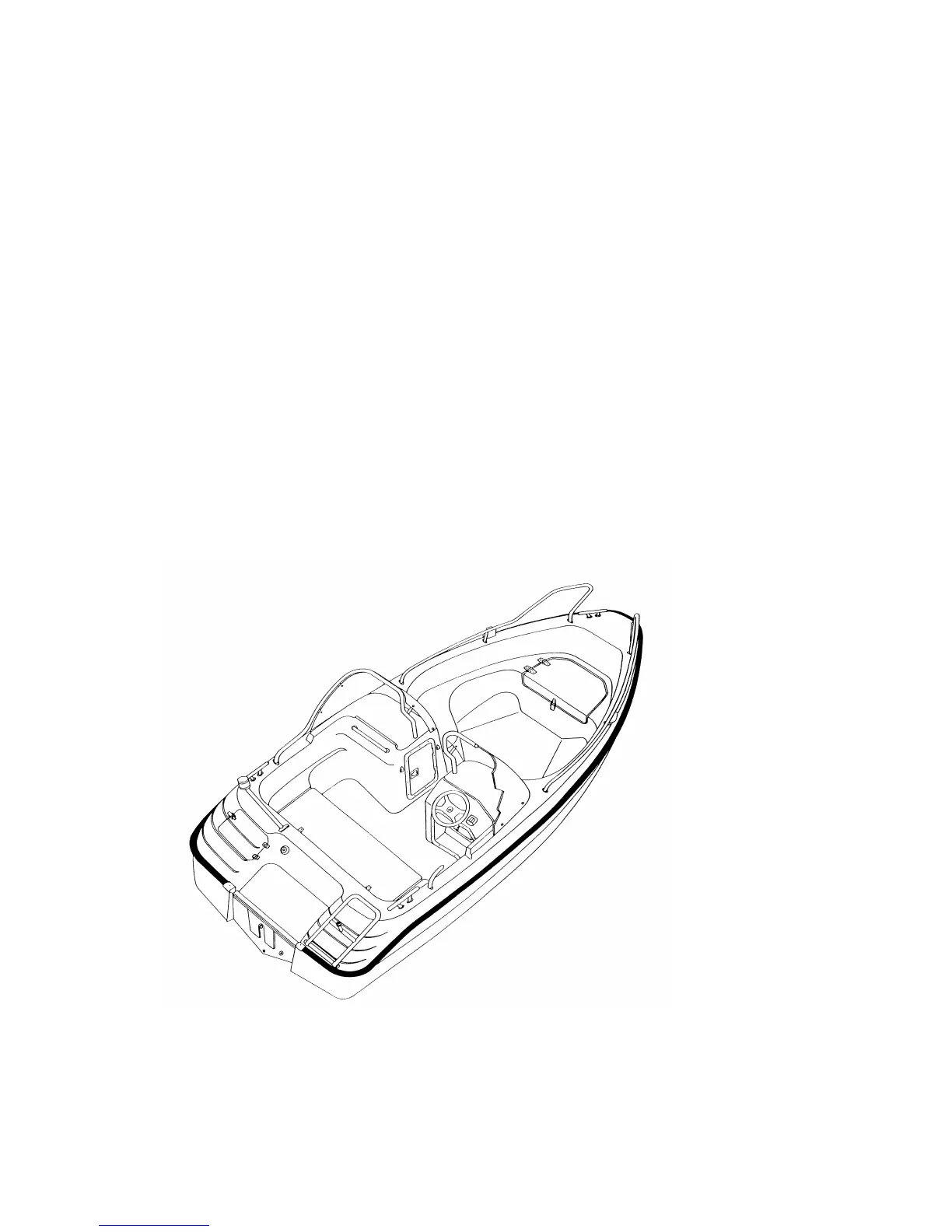

5.2.1 General arrangement, see fig. 3
Figure 3. General arrangement
5.2.2 Draining system
The boat draining systems discussed here help to drain the boat at sea in particular. In
addition to these systems, all Yamarin boats feature a draining plug
at the lower end of transom. Draining the boat on land is done by opening the plug.
NOTE! Remember to fasten the draining plug before launching the boat.
