17
The electrical system installed as standard equipment in the YAMARIN 4730 boat includes
the following main components:
1 BATTERY (not standard)
2 SWITCH PANEL
3 WIRE SET
4 MAIN SWITCH
5 MAIN FUSE
6 ELECTRIC ACCESSORIES (light mast)
In addition, an essential part of the boat's electrical system is the engine, which functions
as a power source and power consumer. Cables for connecting the engine with the boat's
electrical system are normally delivered together with the engine.
For battery (not standard) mounting the Yamarin boats have a battery acid resistant,
ventilated compartment under the aft seat, where the battery can be steadily fastened .

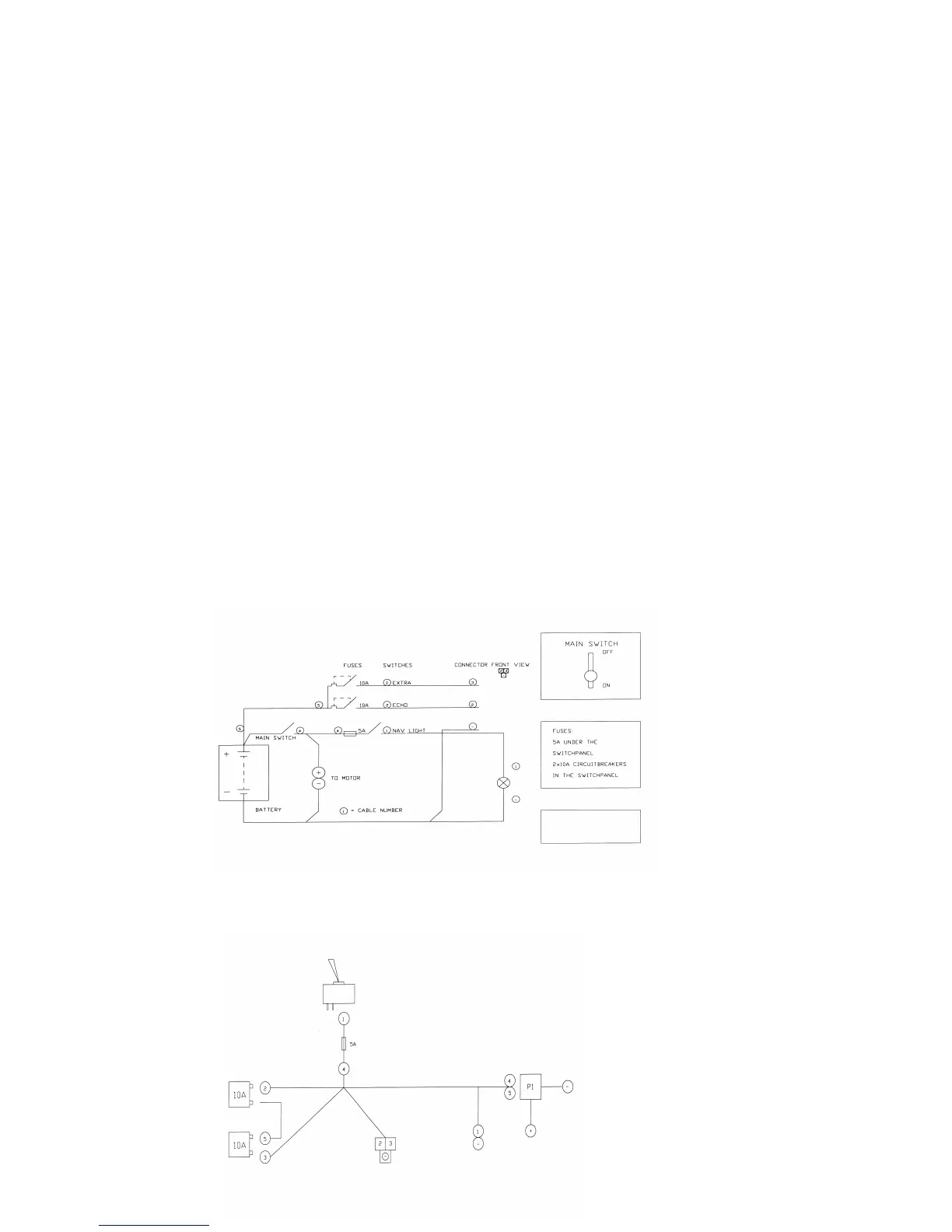

WIRING DIAGRAM
The wiring diagram of the YAMARIN 4730 is shown in fig. 6
In addition, the wiring diagram can also be found in the battery compartment of the
YAMARIN 4730.
Figure 6. Wiring diagram
