Yamatake Corporation Operation Using SFC
ST3000 Smart Transmitter Series 900 Electronic Differential Pressure/Pressure Transmitter 6-41
5
Press the key.
Set the low limit value to 20.00kPa.

6
Press the key, to display the high
limit value.
7
Press the and keys (numeric),
in that order.
8
Press the key.
The high limit value was set to 60.00 kPa.

9
Press the and keys, in that
order.
Saves the data in the transmitter.


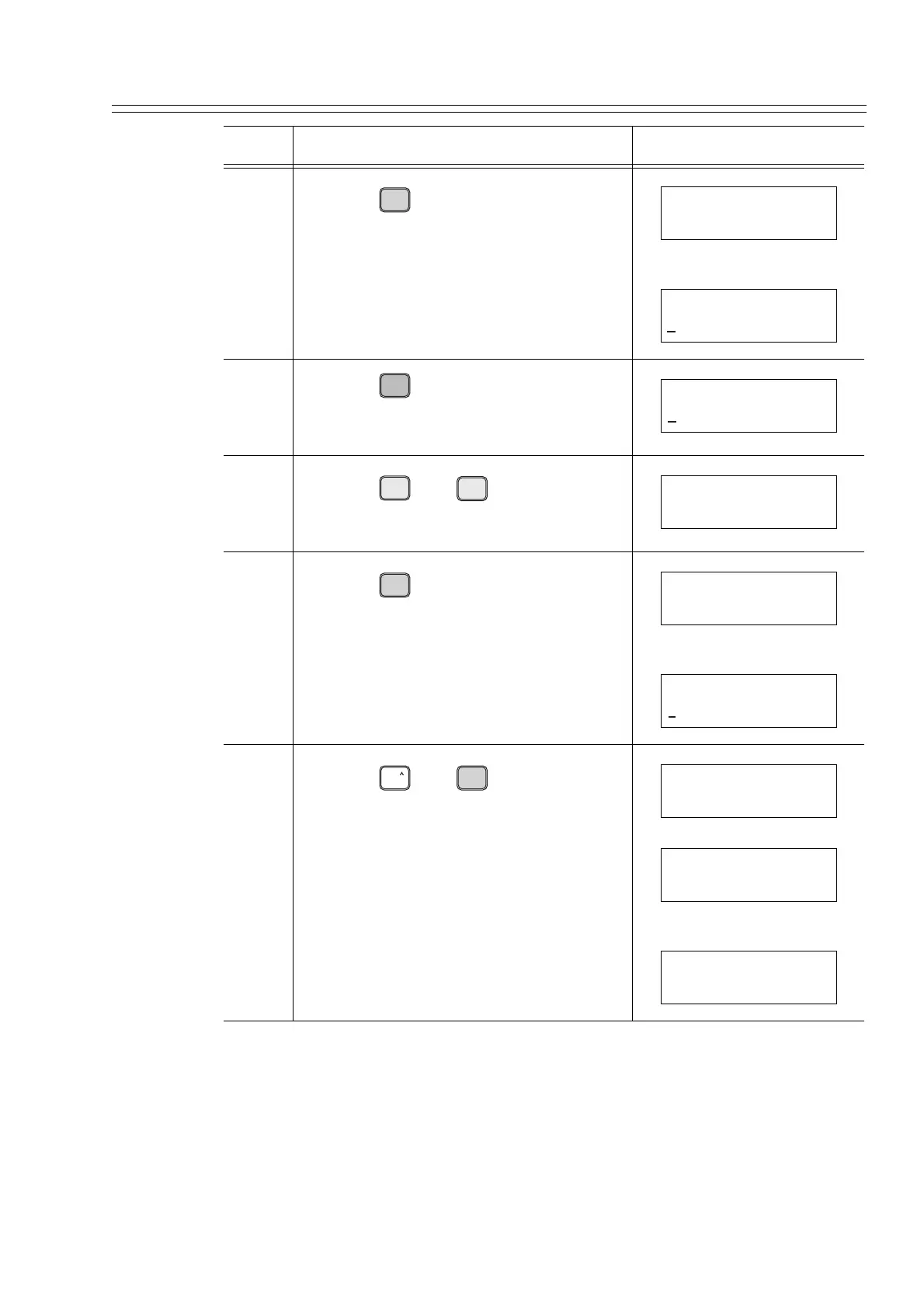

Step Description SFC screen
ENTER
( Yes )
NON-VOL
LRV FIT-1234
WORKING...
LRV FIT-1234
20.00 kPa
URV
F
100%
URV FIT-1234
50.00 kPa
T
6
Z
0
ACT PR
URV FIT-1234
60_ kPa
ENTER
( Yes )
NON-VOL
URV FIT-1234
WORKING...
URV FIT-1234
60.00 kPa
SHIFT
ENTER
( Yes )
NON-VOL
SHIFT-
DSTJ FIT-1234
WORKING...
DSTJ FIT-1234
DATA NONVOLATILE
