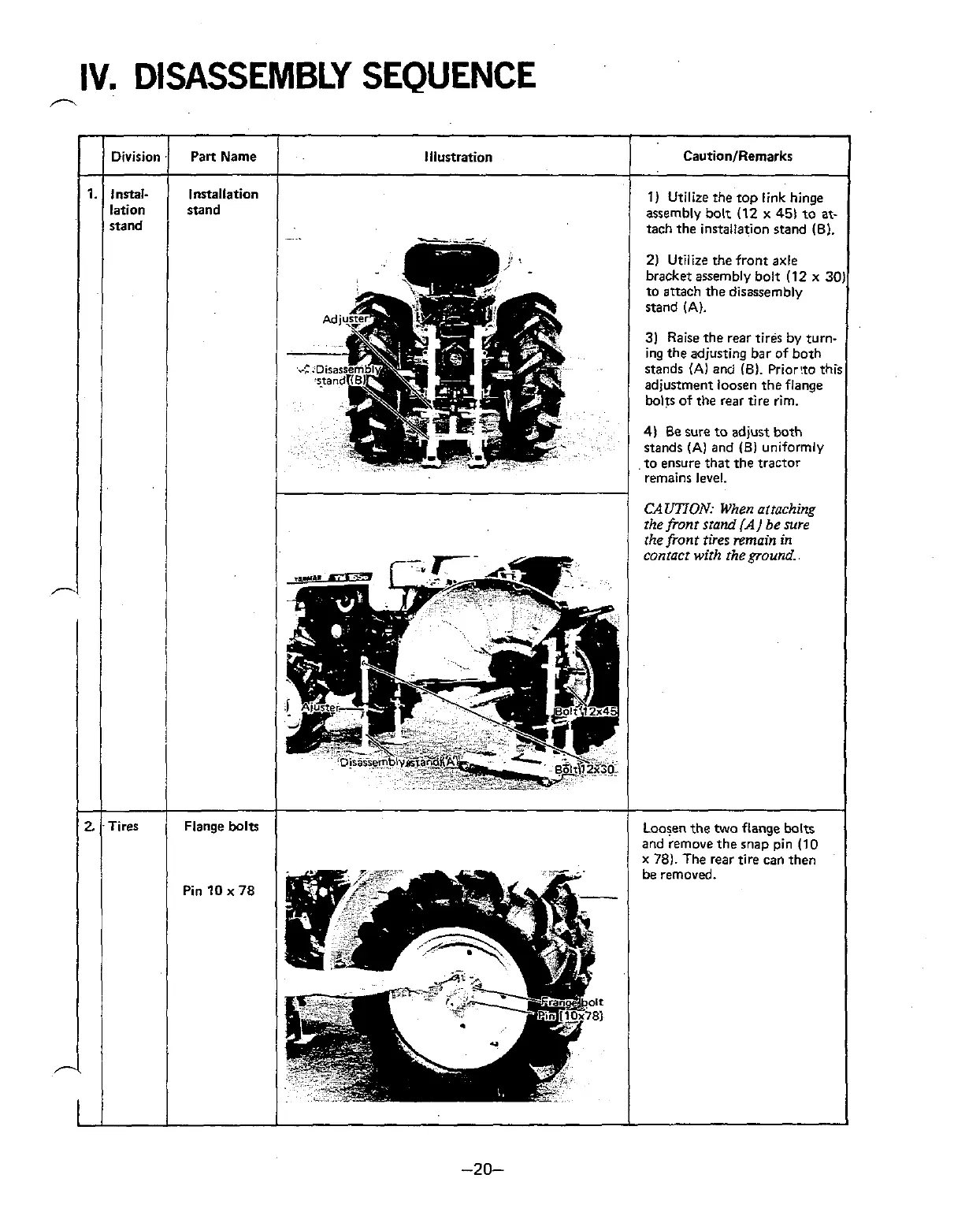

IV.
DISASSEMBLY SEQUENCE
I
2
I~im
/
Flange bolts
I
/
1) Utilize the top link hinge
assembly bolt
(12
x
451
to at-
1
1
tach the installation stand
(B).
1
I
Pan Name
Installation
stand
7.
I
2)
Utilize the front axle
bracket assembly bolt (12 x
30)
to attach the disassembly
stand
(A).
Division
Instal-
lation
stand
3) Raise the rear tires by turn-
ing the adjusting bar of both
stands
(A) and (B). Prior!to this
adjustment loosen the flange
bolts of the rear tire rim.
4)
Be sure to adjust both
stands
(A1 and (BI uniformly
to ensure that the tractor
remains level.
CAUTION:
When attaching
the front stand
(A]
be
sure
the
front
tires
amain in
contact with
theground.
Loosen the two flange bolts
and remove the snap pin (10
x
78).
The rear tire can then
be removed.
