Yard Machines 462B series User Manual

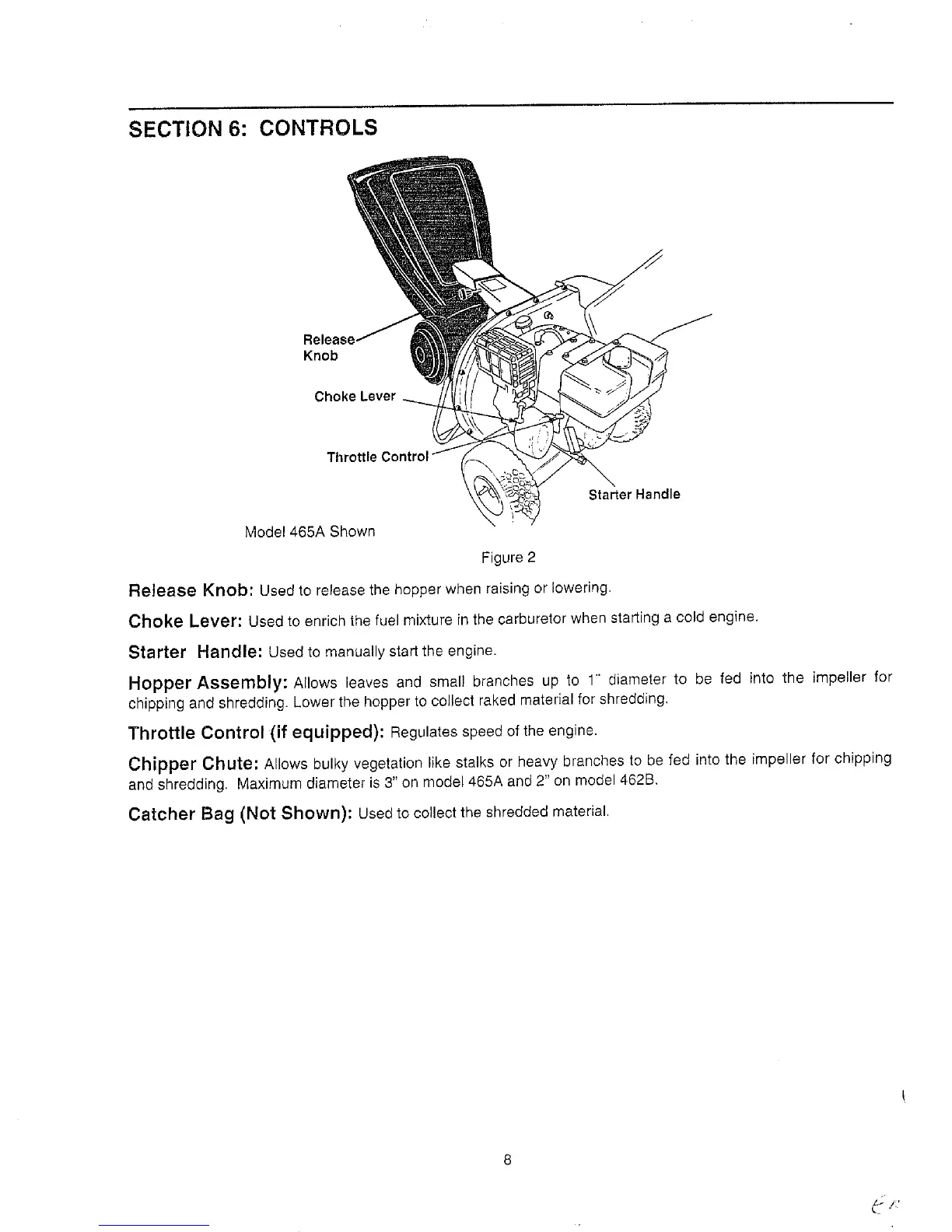

SECTION 6: CONTROLS
Release
Knob
Choke Lever
Throttle Control
Starter Handle
Model 465A Shown
Figure 2
Release Knob: Used to release the hopper when raising or lowering.
Choke Lever: Used to enrich the fuel mixture
in the carburetor when starting a cold engine.
Starter Handle: Used to manually start the engine•
Hopper Assembly: Atlows leaves and smart branches up to 1" diameter to be fed
chipping and shredding• Lower the hopper to collect raked material for shredding.
Throttle Control (if equipped): Regulates speed of the engine.
Chipper Chute: Allows bulky vegetation like stalks or heavy branches to be fed into the
and shredding. Maximum diameter is 3" on model 465A and 2" on model 462B.
Catcher Bag (Not Shown): Usedto collect the shredded material,
into the impeller for
impeller for chipping
8

Yard Machines 462B series Specifications

General

Brand	Yard Machines
Model	462B series
Category	Chippers/Shredders
Language	English
