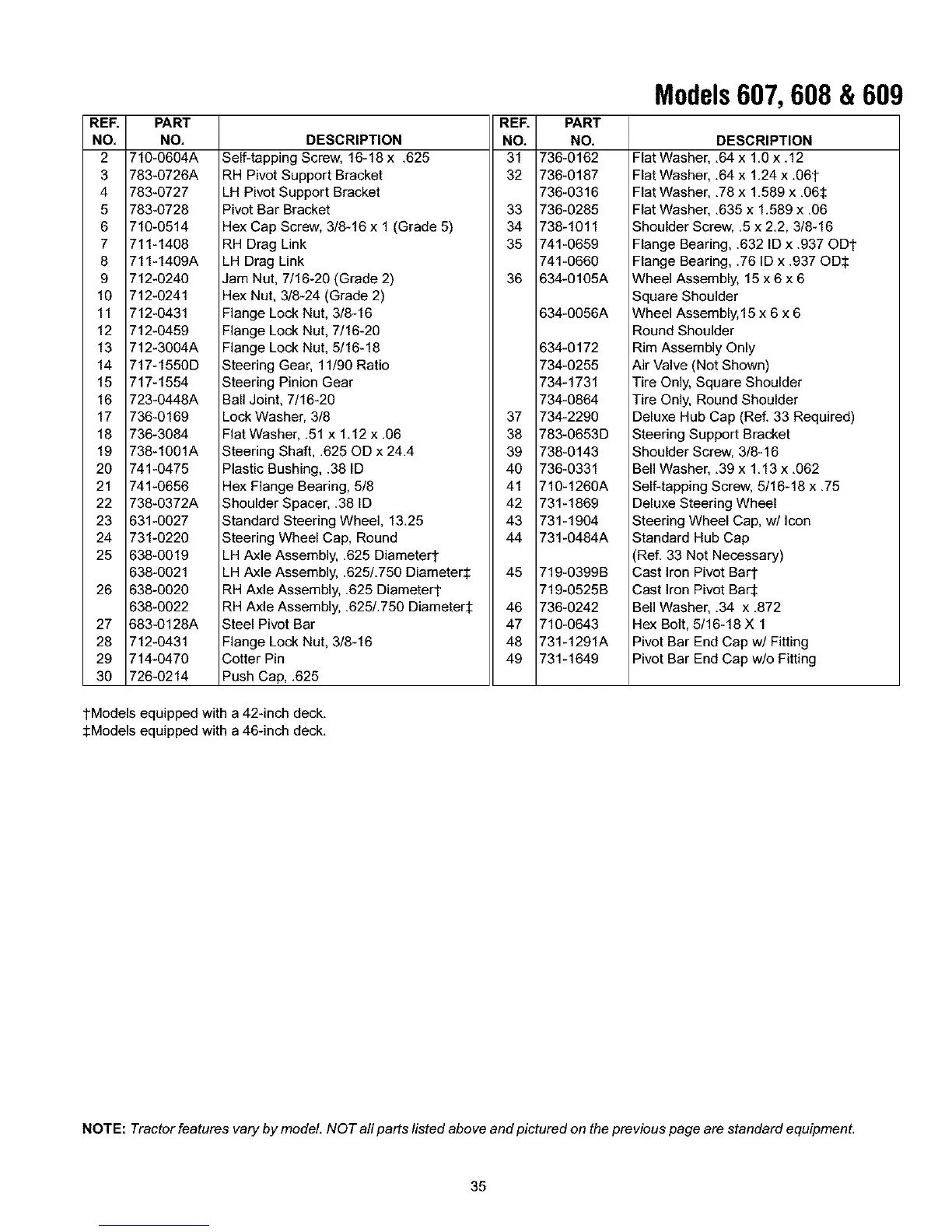

Yard Machines 607 - Page 35

RER PART
NO. NO.
2 710-0604A
3 783-0726A
4 783-0727
5 783-0728
6 710-0514
7 711-1408
8 711-1409A
9 712-0240
10 712-0241
11 712-0431
12 712-0459
13 712-3004A
14 717-1550D
15 717-1554
16 723-0448A
17 736-0169
18 736-3084
19 738-1001A
20 741-0475
21 741-0656
22 738-0372A
23 631-0027
24 731-0220
25 638-0019
638-0021
26 638-0020
638-0022
27 683-0128A
28 712-0431
29 714-0470
30 726-0214
DESCRIPTION
Self-tappingScrew.16-18x .625
RHPivotSupportBracket
LHPivotSupportBracket
PivotBarBracket
HexCapScrew,3/8-16x1(Grade5)
RHDragLink
LHDragLink
JamNut.7/16-20(Grade2)
HexNut,3/8-24(Grade2)
FlangeLockNut.3/8-16
FlangeLockNut.7/16-20
FlangeLockNut.5/16-18
SteeringGear,11/90Ratio
SteeringPinionGear
BallJoint,7/16-20
LockWasher,3/8
FlatWasher,.51x 1.12x .06
SteeringShaft,.625ODx24.4
PlasticBushing,.38ID
HexFlangeBearing,5/8
ShoulderSpacer,.38ID
StandardSteeringWheel.13.25
SteeringWheelCap,Round
LHAxleAssembly,.625Diametert
LHAxleAssembly,.625/.750Diameters
RHAxleAssembly,.625Diametert
RHAxleAssembly,.625/.750Diameters
SteelPivotBar
FlangeLockNut,3/8-16
CotterPin
PushCap,.625
REF.
NO.
31
32
33
34
35
36
37
38
39
40
41
42
43
44
PART
NO.
736-0162
736-0187
736-0316
736-0285
738-1011
741-0659
741-0660
634-0105A
634-0056A
634-0172
734-0255
734-1731
734-0864
734-2290
783-0653D
738-0143
736-0331
710-1260A
731-1869
731-1904
731-0484A
45 719-0399B
719-0525B
46 736-0242
47 710-0643
48 731-1291A
49 731-1649
Models607, 608 &609
DESCRIPTION
Flat Washer, .64 x 1.0 x .12
Flat Washer, .64 x 1.24 x .061"
Flat Washer, .78 x 1.589 x .06S
Flat Washer, .635 x 1.589 x .06
Shoulder Screw, .5 x 2.2, 3/8-16
Flange Bearing, .632 ID x .937 OD1"
Flange Bearing, .76 ID x .937 ODS
Wheel Assembly, 15 x 6 x 6
Square Shoulder
Wheel Assembly,15 x 6 x 6
Round Shoulder
Rim Assembly Only
Air Valve (Not Shown)
Tire Only, Square Shoulder
Tire Only, Round Shoulder
Deluxe Hub Cap (Ref. 33 Required)
Steering Support Bracket
Shoulder Screw, 3/8-16
Bell Washer, .39 x 1.13 x .062
Self-tapping Screw. 5/16-18 x .75
Deluxe Steering Wheel
Steering Wheel Cap. w/Icon
Standard Hub Cap
(Ref. 33 Not Necessary)
Cast Iron Pivot Bar1"
Cast Iron Pivot Bars
Bell Washer, .34 x .872
Hex Bolt, 5/16-18 X 1
Pivot Bar End Cap w/Fitting
Pivot Bar End Cap w/o Fitting
1"Models equipped with a 42-inch deck.
SModels equipped with a 46-inch deck.
NOTE: Tractor features vary by model. NOT all parts listed above and pictured on the previous page are standard equipment.
35
