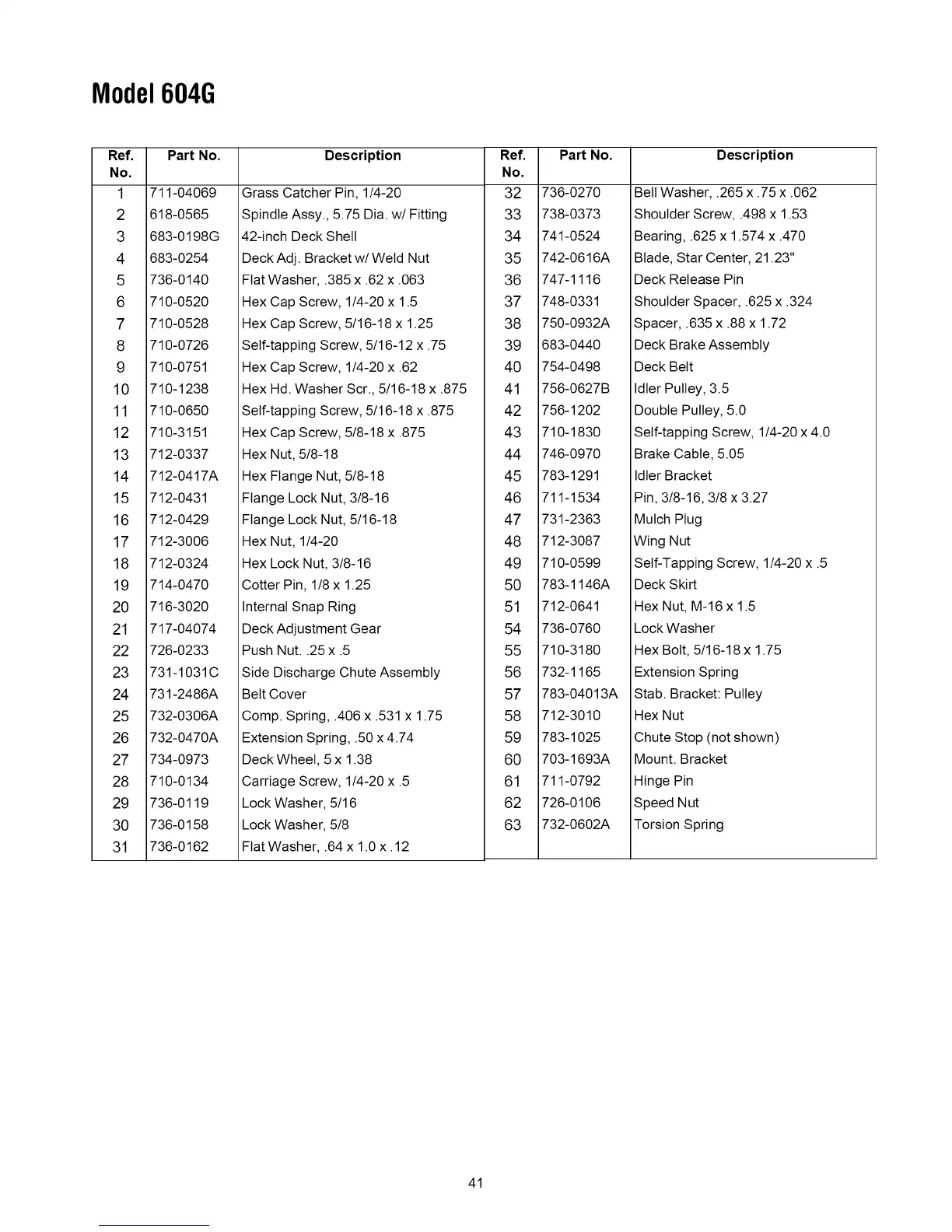

Yard-Man 604G - Page 41

Model604G
Ref.
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2O
21
22
23
24
25
26
27
28
29
3O
31
Part No.
711-04069
618-0565
683-0198G
683-0254
736-0140
710-0520
710-0528
710-0726
710-0751
710-1238
710-0650
710-3151
Description
Grass Catcher Pin, 1/4-20
Spindle Assy., 5.75 Dia. w/Fitting
42-inch Deck Shell
Deck Adj. Bracket w/Weld Nut
Flat Washer, .385 x .62 x .063
Hex Cap Screw, 1/4-20 x 1.5
Hex Cap Screw, 5/16-18 x 1.25
Self-tapping Screw, 5/16-12 x .75
Hex Cap Screw, 1/4-20 x .62
Hex Hd. Washer Scr., 5/16-18 x .875
Self-tapping Screw, 5/16-18 x .875
Hex Cap Screw, 5/8-18 x .875
Ref. Part No.
No.
32 736-0270
33 738-0373
34 741-0524
35 742-0616A
36 747-1116
37 748-0331
38 750-0932A
39 683-0440
40 754-0498
41 756-0627B
42 756-1202
43 710-1830
Description
Belt Washer, .265 x .75 x .062
Shoulder Screw, .498 x 1.53
Bearing, .625 x 1.574 x .470
Blade, Star Center, 21.23"
Deck Release Pin
Shoulder Spacer, .625 x .324
Spacer, .635 x .88 x 1.72
Deck Brake Assembly
Deck Belt
Idler Pulley, 3.5
Double Pulley, 5.0
Self-tapping Screw, 1/4-20 x 4.0
712-0337
712-0417A
712-0431
712-0429
712-3006
712-0324
714-0470
716-3020
717-04074
726-0233
Hex Nut, 5/8-18
Hex Flange Nut, 5/8-18
Flange Lock Nut, 3/8-16
Flange Lock Nut, 5/16-18
Hex Nut, 1/4-20
Hex Lock Nut, 3/8-16
Cotter Pin, 1/8 x 1.25
Internal Snap Ring
Deck Adjustment Gear
Push Nut..25 x .5
44 746-0970
45 783-1291
46 711-1534
47 731-2363
48 712-3087
49 710-0599
50 783-1146A
51 712-0641
54 736-0760
55 710-3180
Brake Cable, 5.05
Idler Bracket
Pin, 3/8-16, 3/8 x 3.27
Mulch Plug
Wing Nut
Self-Tapping Screw, 1/4-20 x .5
Deck Skirt
Hex Nut, M-16 x 1.5
Lock Washer
Hex Bolt, 5/16-18 x 1.75
731-1031C
731-2486A
732-0306A
732-0470A
734-0973
710-0134
736-0119
736-0158
736-0162
Side Discharge Chute Assembly
Belt Cover
Comp. Spring, .406 x .531 x 1.75
Extension Spring, .50 x 4.74
Deck Wheel, 5 x 1.38
Carriage Screw, 1/4-20 x .5
Lock Washer, 5/16
Lock Washer, 5/8
Flat Washer, .64 x 1.0 x .12
56 732-1165
57 783-04013A
58 712-3010
59 783-1025
60 703-1693A
61 711-0792
62 726-0106
63 732-0602A
Extension Spring
Stab. Bracket: Pulley
Hex Nut
Chute Stop (not shown)
Mount. Bracket
Hinge Pin
Speed Nut
Torsion Spring
41
