E25
PARTS LIST
HOUSING PARTS - MODEL YM320BV

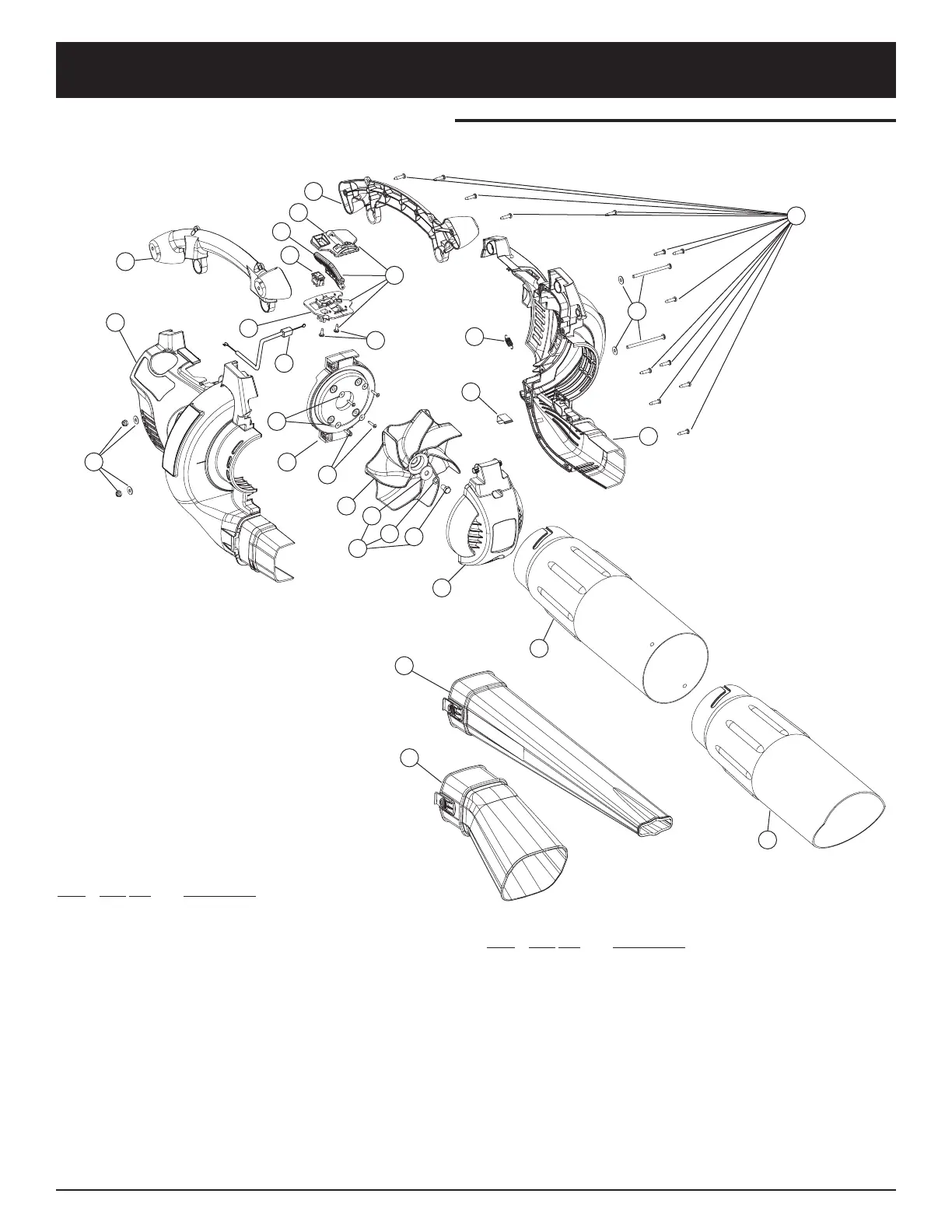

2-CYCLE GAS MULCHING BLOWER VACUUM
1
5
8
3
10
19
7
11
25
24
26
21
1
22
20
14
3
23
22
Item Part No. Description
1 753-04837 Engine Cover Assm (includes 2)
2 791-181345 Screw
3 753-04451 Handle Assm (includes 2)
4 791-00047 Throttle control Assm (includes 5-7 & 9)
5 791-182420 Upper Throttle Control Plate
6 791-00048 Throttle Control Lever
7 791-182423 Screw
8 791-182405 Rocker Switch Assm
9 791-182422 Lower Throttle Control Plate
10 791-00049 Throttle Cable
11 753-04483 Engine Mount Plate (includes 12 & 13)
12 791-182409 Washer
13 791-181903 Screw
14 753-04596 Impeller Blade
15 753-04482 Impeller Hardware (includes 16-18)
16 753-04833 Washer
17 753-04834 Lock Washer
18 791-182414 Bolt
Item Part No. Description
19 753-04456 Vacuum Door Spring
20 753-04455 Vacuum Door Lock
21 753-04454 Vacuum Door
22 791-182424 Mounting Plate Hardware
23 791-182647 Blower Tube
24 791-182477 Vacuum Bag Adaptor
25 791-180466 Upper Vacuum Tube
26 791-180467 Lower Vacuum Tube
* 791-612930 Cable Tie
* 753-04458 Vacuum Bag Assm
(includes 24, Bag, & Cable Tie)
* 791-682075B Shoulder Strap
* Items Not Shown
6
13
12
18
2
16
9
4
17
15
To Next Page
