Yard-Man YM320BV - Parts List

E24
PARTS LIST

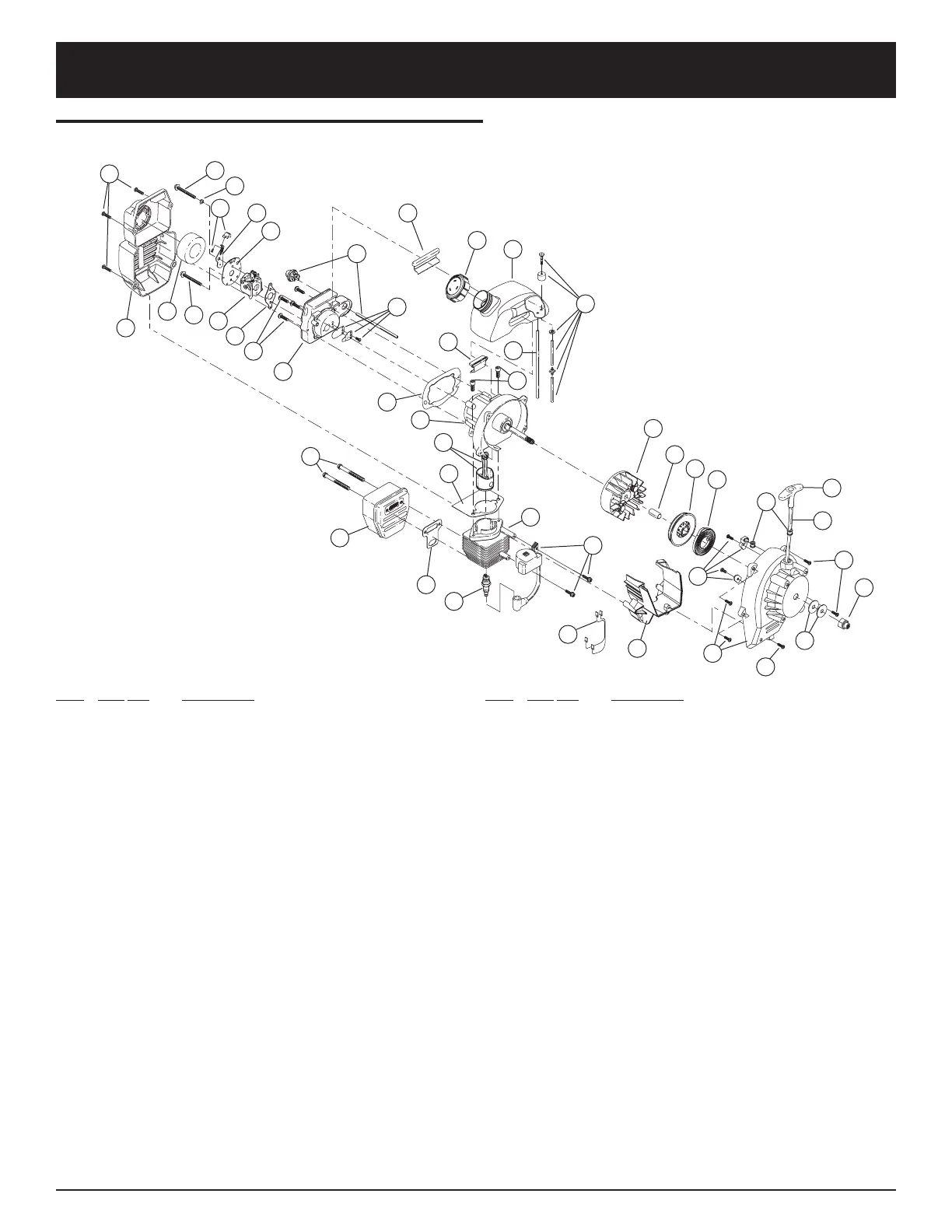

HOUSING PARTS - MODEL YM320BV
2-CYCLE GAS MULCHING BLOWER VACUUM
32
1
2
3
8
10
12
3
4
5
7
6
11
13
14
15
41
42
19
43
21
16
18
17
20
23
24
25
26
27
29
30
31
44
32
33
22
34
35
40
36
37
28
9
Item Part No. Description
1 753-04511 Air Cleaner/Muffler Cover Assembly
(includes 2 & 32)
2 791-180350B Air Cleaner Filter
3 791-180351 Carburetor Mounting Screw
4 791-180226 Wavey Washer
5 791-182202 Choke Knob and Screw
6 753-04418 Choke Lever Assembly (includes 5)
7 753-04419 Choke Lever and Plate (includes 6)
8 753-04408 Carburetor Assembly (includes 9 & 20)
9 791-610675 Carburetor Gasket
10 791-181860 Carb Mount Screw
11 791-683974B Primer and Hose Assembly
12 753-1196 Carb Mount Assembly (includes 10,13 & 14)
13 791-684451 Reed Assembly
14 753-1208 Carburetor Mount Gasket
15 753-04328 Crank Case Service Assembly
(includes 10)
16 791-612134 Rear Mounting Pad
17 753-04310 Fuel Tank Assembly (includes 18-20)
18 791-182612 Fuel Cap Assembly
19 791-181086 Fuel Return Line
20 791-682039 Fuel Line Assembly
21 791-145308 Front Mounting Pad
22 753-04409 Shroud Extension (includes 32)
23 791-182736 Flywheel Assembly
24 753-04481 Spacer
25 753-1199 Recoil Pulley Assembly
26 791-613102 Recoil Spring
27 791-611061 Rope Guide
28 791-180930 Pulley Retainer Assembly
Item
Part No. Description
29 791-181079 Pull Handle
30 791-613103 Rope
31 791-181862 Housing Screw
32 791-181345 Cover Screw
33 791-181931 Starter Housing Assembly (includes 25-32)
34 791-182402 Wire Lead Assembly
35 753-04336 Module Assembly
36 791-610311B Spark Plug
37 753-04619 Exhaust Gasket
38 753-04620 Muffler Mounting Bolt Assembly
39 753-04618 Muffler Assembly (includes 37 & 38)
40 753-04814 Cylinder Assembly (includes 42 & 43)
41 753-04367 Piston and Rod Assembly
42 753-04182 Cylinder Gasket
43 791-182723 Cylinder Bolt
44 791-181524 Impeller Drive Nut
45 791-182396 Washer
* 753-04689 Spark Arrestor Screen
* 753-1209 Piston Ring
* 753-04895 Short Block Assembly
(includes 10, 15, 36, 40-43)
* Items Not Shown
38
39
45
