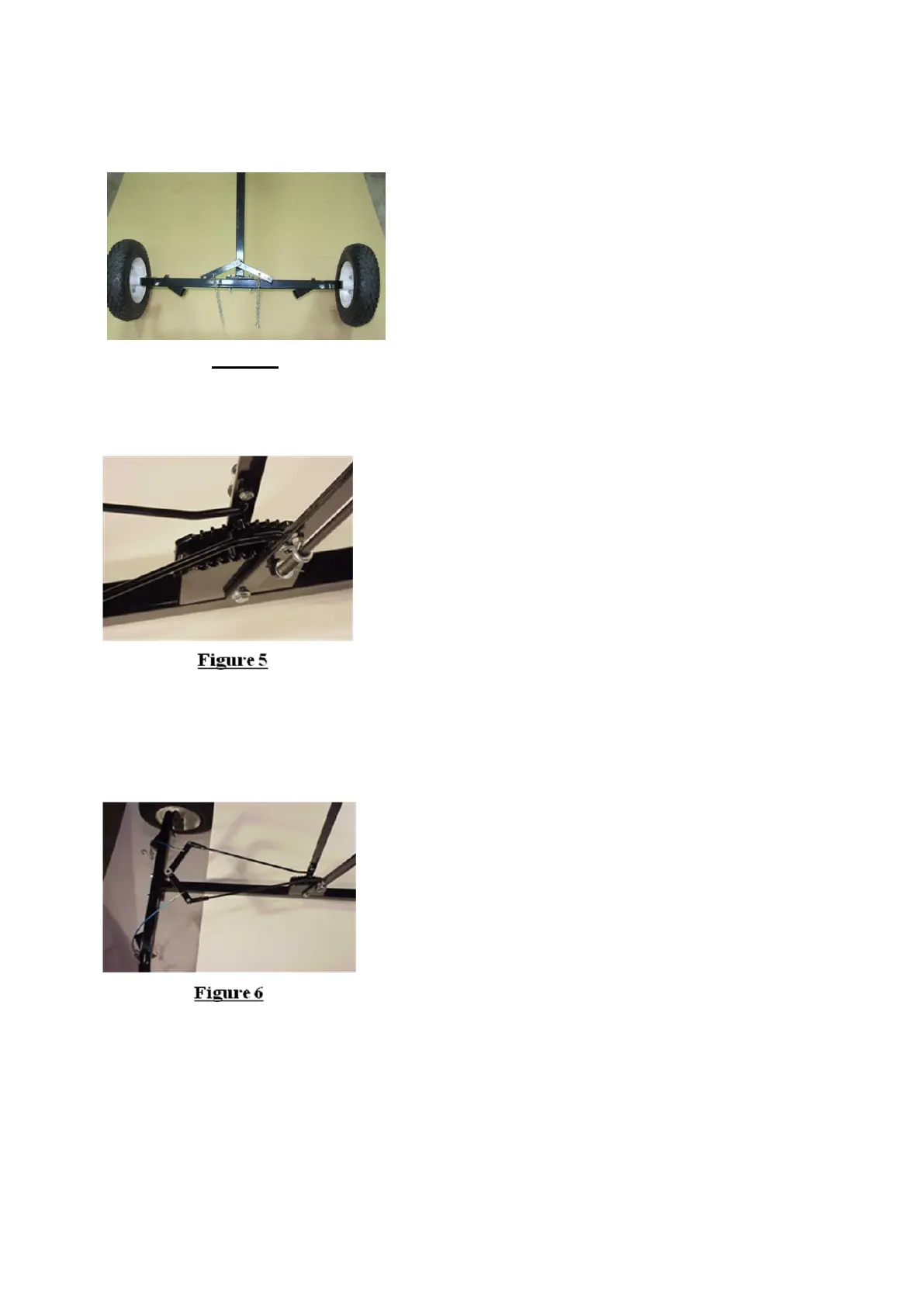

STEP 4: ATTACH CABLE PIVOT BAR
Attach the two lift chain bars (K) to the 19mm x 118mm shaft on the tongue assembly. Install each
chain bar on top of shaft; use a 5/16” nylock nut (M). The chains should be positioned facing the
rear of rake. See figure 4.
STEP 5: ATTACHING LIFT ROD
Attach the end of the lift rod (L) to the 1/4” hole on the inside of lifting handle. Install 1/4” flatwasher
(C). Secure with cotter pin. See figure 5.
STEP 6: ATTACH CLEVIS TO PIVOT BAR
Attach the clevis (opposite end of lift handle) to the chain bar from STEP 4, secure with diameter
1/4” x 1” clevis pin (I). See figure 6.
Do not insert cotter pin until adjustment procedure in STEPS 11 to 13. Repeat STEPS 5 and 6 for
second lifting rod.
