(Figure 18) Insert an Ø8X59.5 clevis pin through the lower hole in each upper hopper side tube.
Next assemble a bag arm tube onto each clevis pin and secure it with a hair cotter pin Ø3.

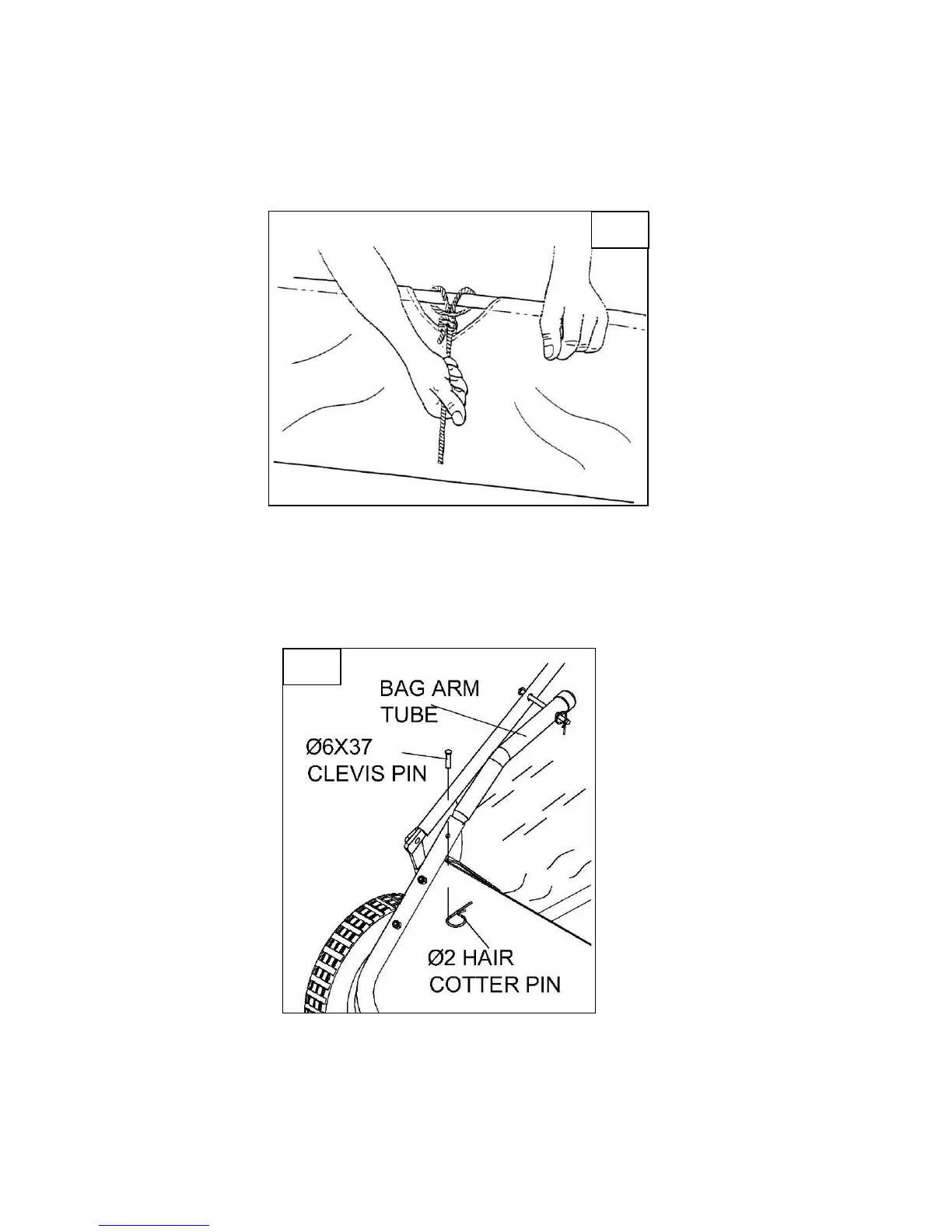

(Figure 19) Secure the rope to the top center of the hopper bag frame.
(Figure 20) To assemble the hopper bag to the sweeper, slide the ends of the bag arm tubes into the
ends of the sweeper’s hitch tubes and secure with two Ø6X37 clevis pins and hair cotter pins Ø2.
