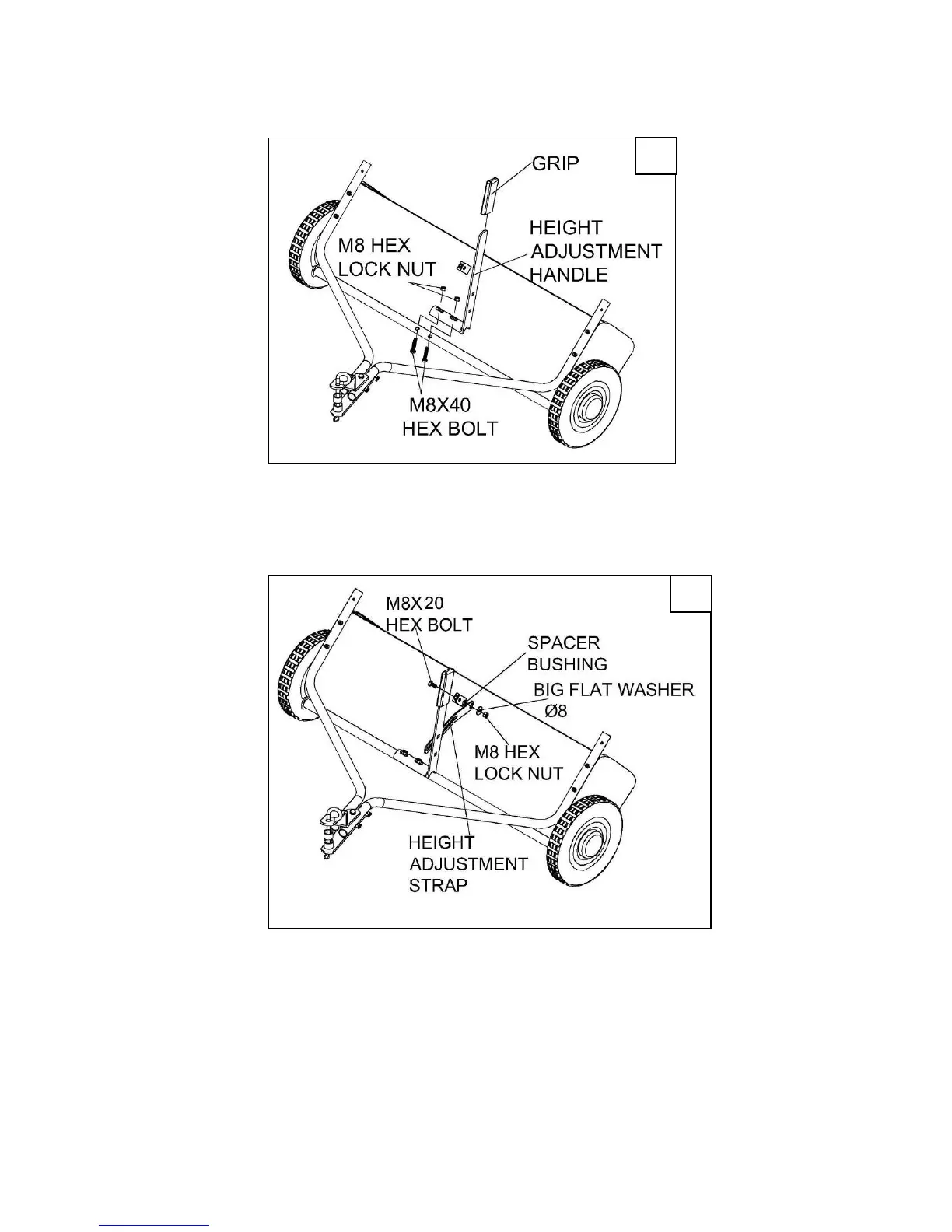

(Figure 6) Assemble the height adjustment handle to the height adjustment tube, as shown in figure 6.
Use two M8x40 hex bolts and M8 lock nuts. Do not tighten yet.
(Figure 7) Insert an M8x20 hex bolt through the angle bracket. Assemble onto the bolt (in order) the
spacer bushing, the height adjustment strap, an Ø8 big flat washer and a M8 hex lock nut. Tighten.
