9

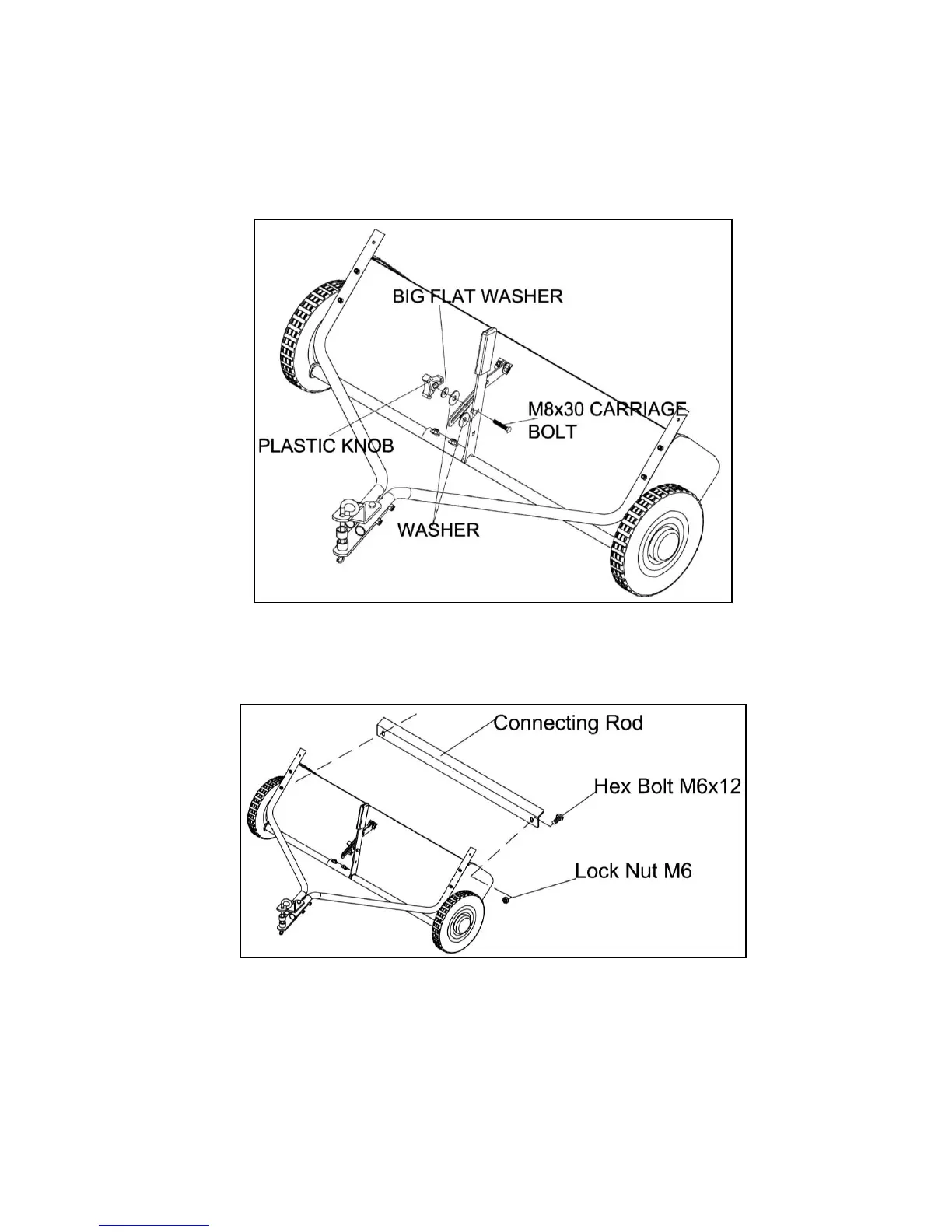

(Figure 8) Position the height adjustment handle side to side so that the wear washer can fit between
the handle and the height adjustment strap. Tighten the nuts securing the height adjustment handle.
(Figure 9) Assemble the Connecting Rod to the sweeper housing by using two sets of Hex Bolt M6x12
and Lock Nut M6.
