ATTACHING THE SEAT
Seat styles vary by tractor model and there are three
different styles available:
• Standard Adjustment
• Quick Adjustment
• Knob Adjustment
Refer to Figure
3,
Figure 4 and Figure 5 to
id~ntify
your
tractor's seat style and follow applicable instructions.
NOTE: For shipping reasons, seats are either
fastened
to
the tractor seat's pivot bracket with a plastic
tie,
or
mounted backward
to
the pivot bracket.
In
either
case, free
the
seat from its shipping position and
remove the two
hex screws (or knobs,
on
models so
equipped) from
the
bottom
of
seat before proceeding
with applicable instructions below.
Standard Adjustment Seat
1.
Position the shoulder screws (found
on
the base of
the seat) inside the slot openings
in
the seat pivot
bracket. See Figure
3.
2.
Slide the seat slightly rearward
in
the seat pivot
bracket, lining up the rear slots
in
the pivot bracket
with the remaining two holes
in
the seat's base.
3.
Select desired position for the seat, and secure with
the two hex screws removed earlier. See Figure 3.
Quick Adjustment Seat
NOTE:
If
your seat
was
shipped mounted backwards
on the seat pivot bracket, pull out the tab found
on
the
seat stop and hold it open while sliding the seat off the
seat pivot bracket.
See Figure
4.
1.
Line up the plastic seat spacers with the slots
in
seat pivot bracket.
2.
Slide seat
in
until front seat spacer engages the
seat stop.See Figure
4.
A WARNING: Before operating this machine,
..
make sure the seat is engaged
in
the seat
stop, stand behind the machine and pull back
on seat until fully engaged into stop.
Knob Adjustment Seat
1 . Position the shoulder screws (found
on
the base of
the seat) inside the slot openings
in
the seat pivot
bracket. See Figure
5.
2. Slide the seat Slightly rearward
in
the seat pivot
bracket, lining up the rear slots
in
the pivot bracket
with the remaining two holes
in
the seat's base.
3.
Select desired position for the seat, and secure with
the two knobs removed earlier. See Figure
5.
Standard Adjustment

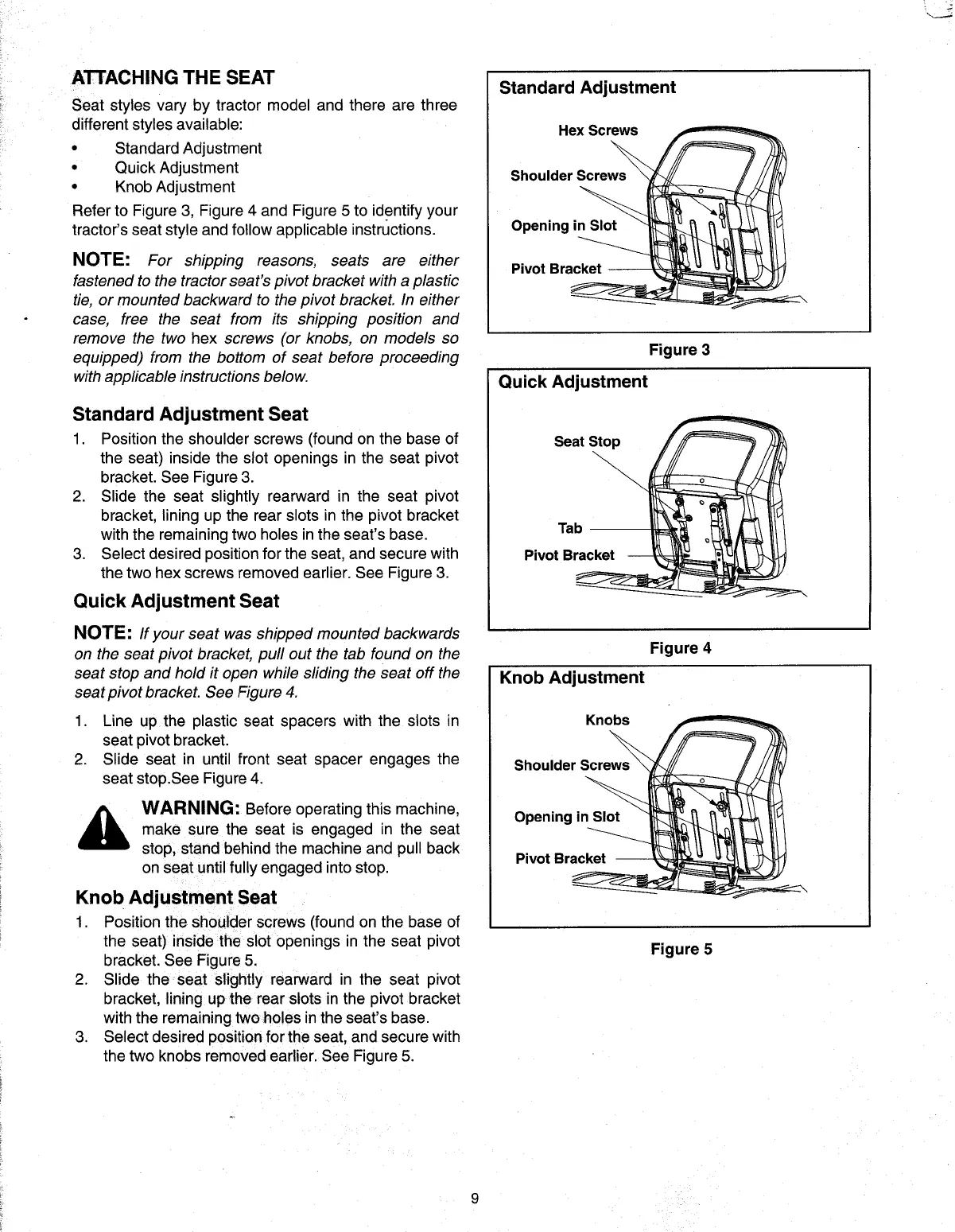

Figure 3
Quick Adjustment
Seat Stop
Tab
---~
..
~
Figure 4
Knob Adjustment
Figure 5
