9

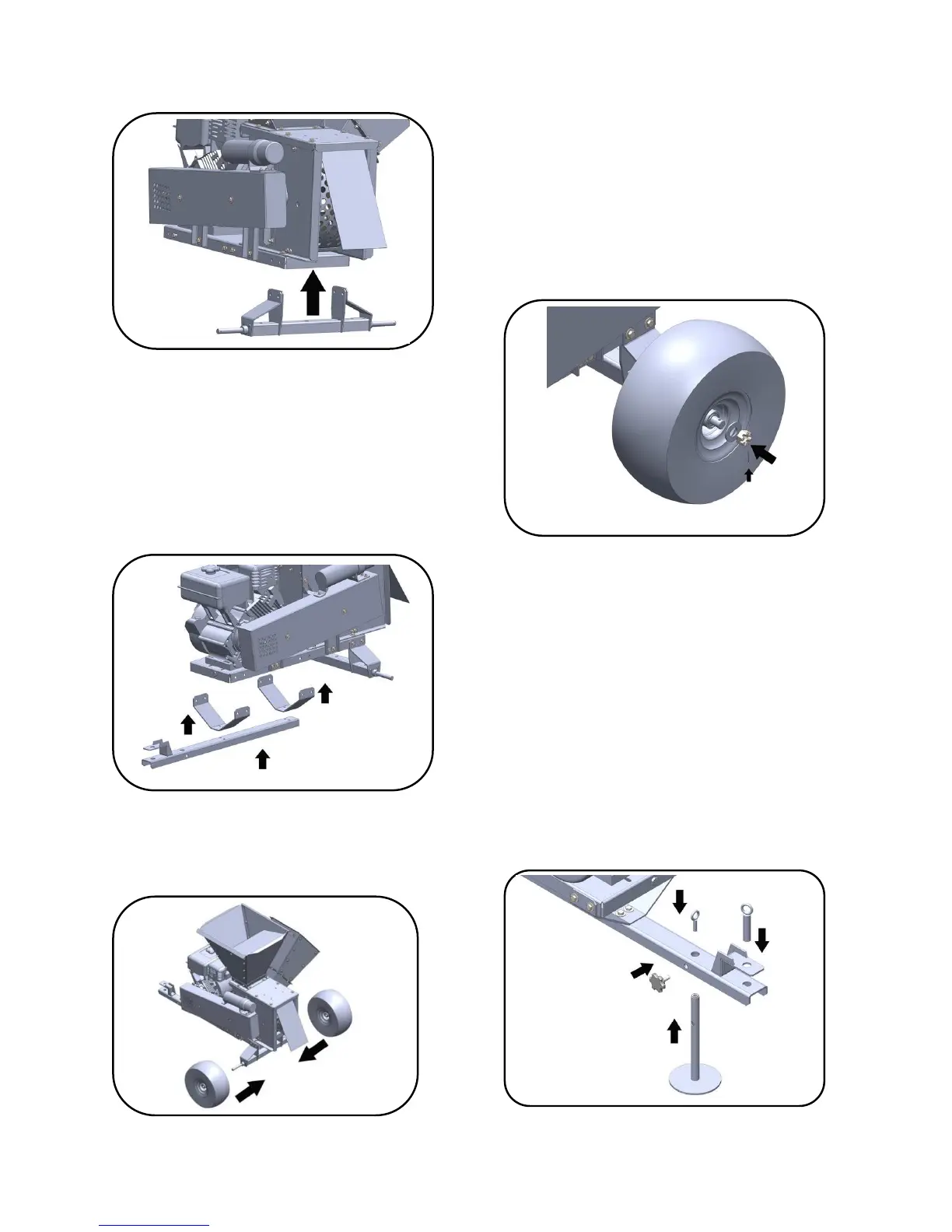

First, assemble the two trailer brackets as
shown. Then, assemble the tow bar below
the brackets, as shown on the same figure.
For this operation, 2-3 person assembly team
is recommended.
a. 8- Hex Bolts 3/8" x 1"
b. 8- Lock Nuts 3/8"
c. 8- Flat Washers 3/8"
- Slide a 3/4" flat washer first and then slide
the turf wheel in. Do this for each shaft.
a. 2 Flat Washers 3/4”
b.2 Turf Wheels 15 x 6.00-6
-To secure each wheel, slide a 3/4" flat
washer, then screw a castle nut on each
shaft end and secure by inserting a safety
cotter pin.
a. 2 Flat washer 5/8"
b. 2 Castle nut 3/4"
c. 2 Cotter pins 3/16" x 1-1/2"
-Now it's onto assemble the trailer hitch.
Slide through the trailer stand foot and
screw the stand thread ring on the top.
Secure it by inserting the bolted knob on the
side of the tow bar. Once it is tightened, the
chipper can rest on the stand. Slide the
hitch pin and use it when towing with an
ATV.
a.1 Hitch pin
b.1 Tightening knob
c. 1 Threaded Stand ring
d.1 Trailer stand
