Yardian Pro - Understand Your Irrigation System; Wiring Diagram Explained

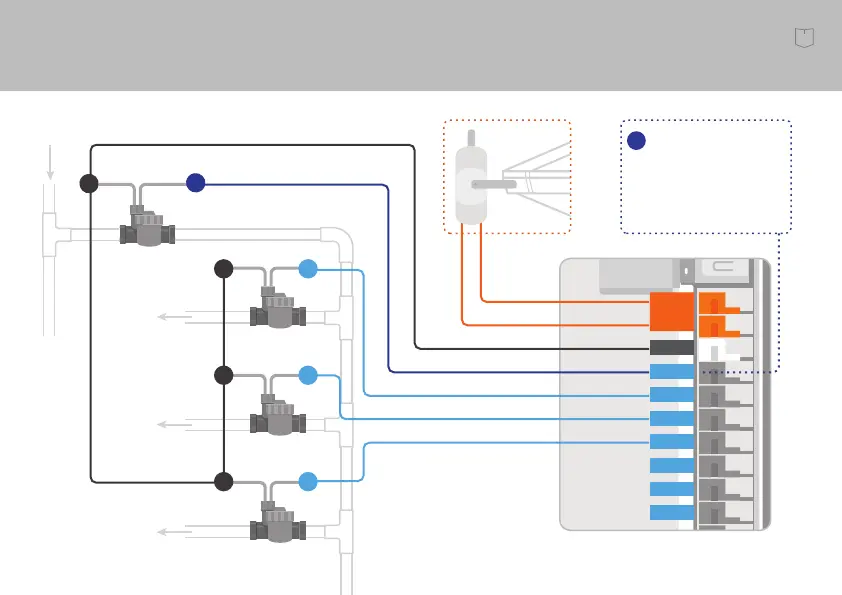

Understand Your Irrigation System
PLC
Sync
RAIN
SENSOR
COM
ZONE 1
ZONE 2
ZONE 3
ZONE 4
ZONE 5
ZONE 6
ZONE 7
Common Wire
Common Wire
Valve
Valve
Valve
Controller
Sprinkler Wires
Wire from controller
to corresponding valve
Water to Zones
Master Valve
Master Valve Wire
P
C
C
C
C
Master Valve Wire Rain Sensor
If you have a master
valve, connect it to
any zone and specify
it in Yardian app.
P
Z2
Z3
Z4
Water
Main
7
