27 support@yardistrystructures.com
Wood Parts
1 x (2236) Gable End Right Upright
1 x (2246) Gable End Left Upright
Hardware
4 x #10 x 1-1/4” Pan Screw (yellow)
8 x #8 x 7/8” Truss
Components
2 x Corner Bracket
2 x Jamb Mount
Inside View
Outside View
Corner Bracket
Jamb Mount
S12
S0
S0
S12
F2.27
F2.25
F2.28
F2.26
(2236)
(2246)
(2246)
(2243)
(2236)
(2236)
(2246)
(2246)
Pre-drill all pilot holes before installing Pan Screws.
Outside View
Inside View
Corner
Bracket
Corner
Bracket
Jamb
Mount

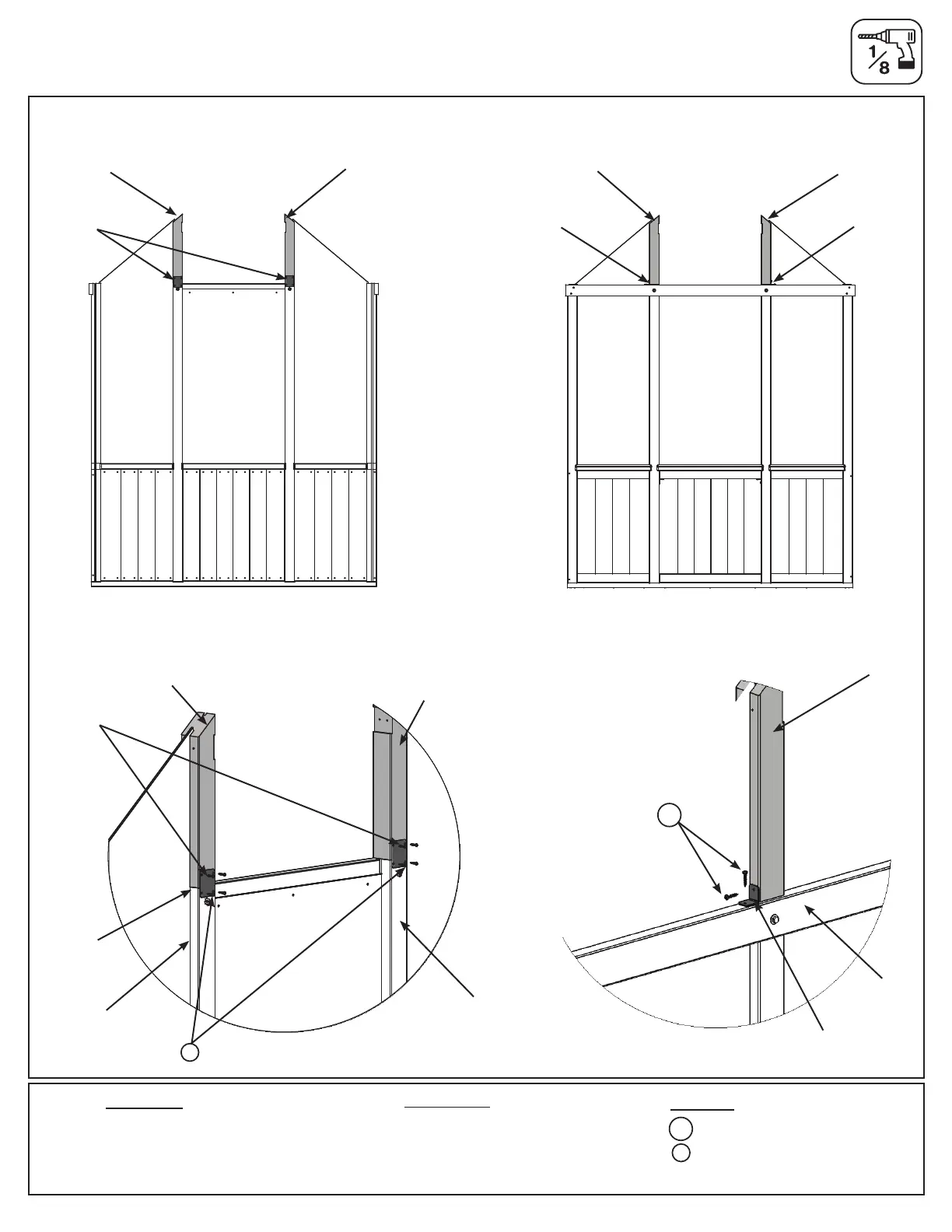

Step 2: End Wall with Gable Vent Assembly
Part 8
(yellow)
Flush and
Tight
Note: Attach Jamb
Mounts to 2249’s
before attaching to
2236 and 2246
(2249)
(2249)
