39 support@yardistrystructures.com
F3.25
F3.27
Outside View
Inside View
Wood Parts
1 x (2261) Gable Right Upright
1 x (2262) Gable Left Upright
Hardware
4 x #10 x 1-1/4” Pan Screw (yellow)
8 x #8 x 7/8” Truss
Components
2 x Corner Bracket
2 x Jamb Mount
S12
S0
F3.26
F3.28
Corner Bracket
Jamb Mount
S0
S12
(2261)
(2261) (2262)
(2262)
(2261)
(2262)
(2243)
(2243)
Outside View
Inside View
Corner
Bracket
Corner
Bracket
Jamb
Mount

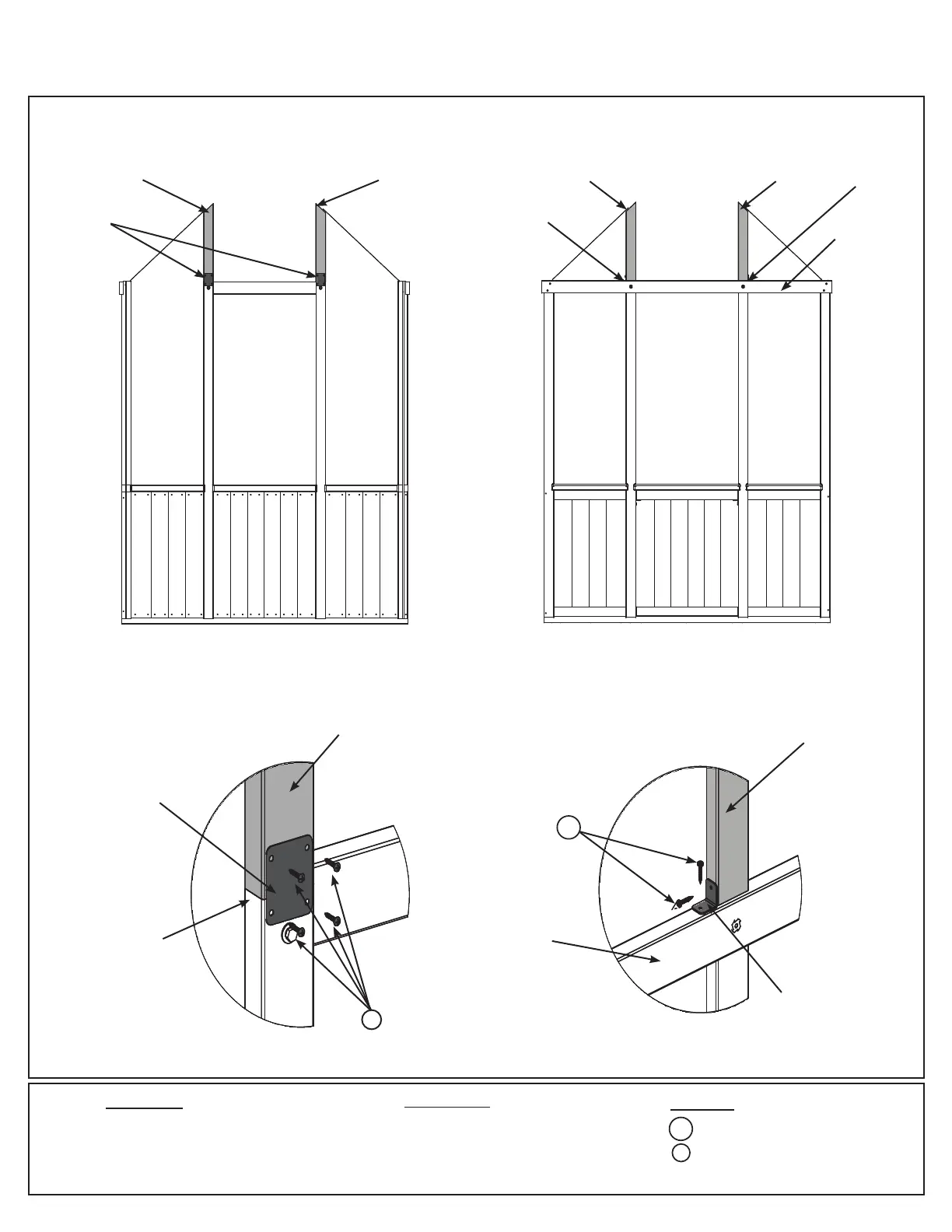

Step 3: End Wall Assembly
Part 8
(yellow)
Flush and Tight
Note: Attach Jamb
Mounts to 2249’s
before attaching to
2261 and 2262
