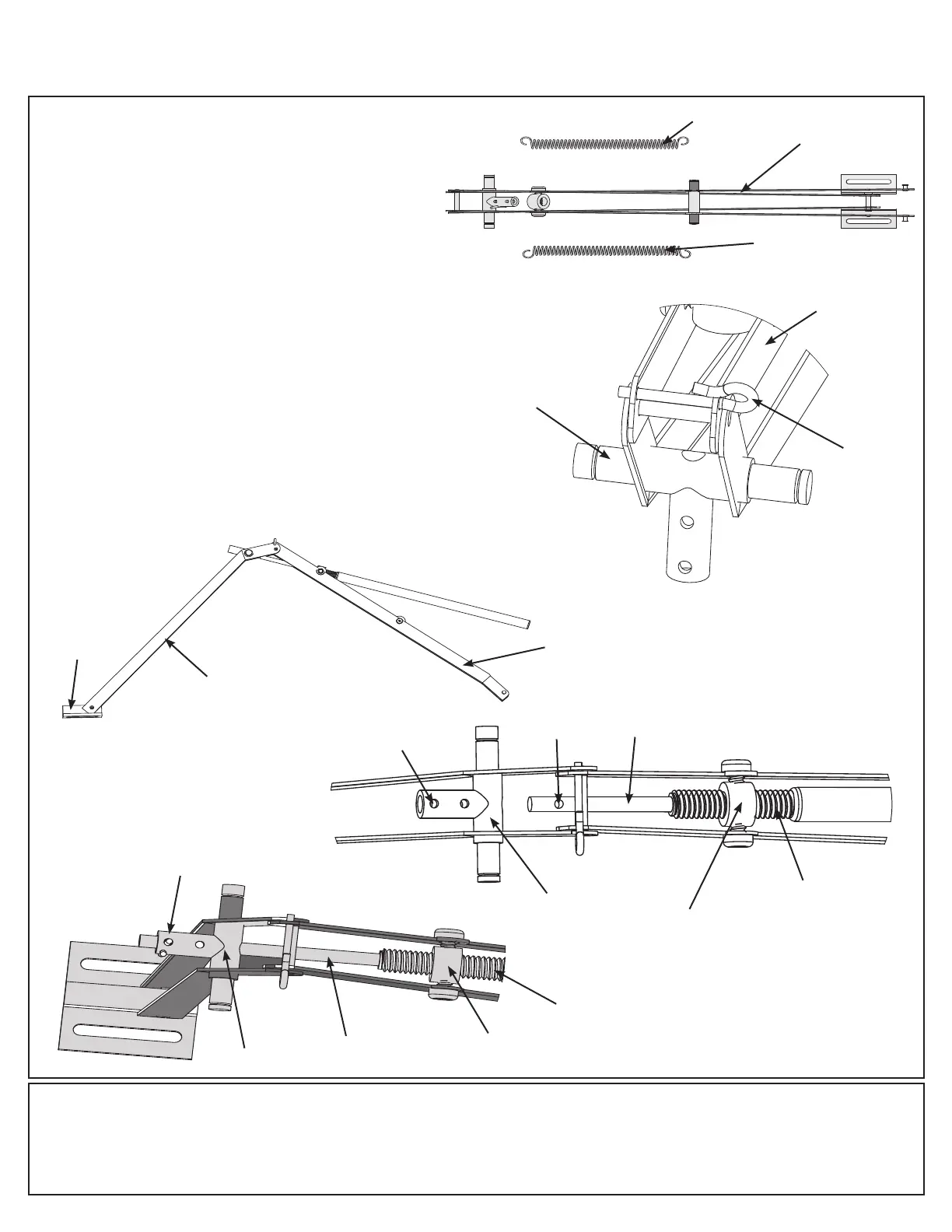

Step 15: Attach Temperature Control
Part 2
A: Remove Spring from each side of Double
Spring Temperature Control. (F15.4)
B: Insert Assembly Pin into holes on Frame Arm.
(F15.5)
C:
Temperature Control as shown in F15.6.
D: Insert Cylinder Thread into Cylinder Nut so
there is equal amounts of thread on each side.
(F15.7 and F15.8)
E: Make sure hole in Piston Rod is facing the
same direction as holes in T-Tube then insert
Piston Rod into T-Tube aligning the hole in Piston
Rod to the second hole in T-Tube. (F15.7 and
F15.8)
F15.4
F15.5
F15.8
T-Tube
Cylinder Nut
Frame
Arm
Cylinder Thread
Window
Bracket
Frame Arm
F15.7
F15.6
Assembly
Pin
Spring
2nd hole
Piston
Rod hole
Spring
Double Spring
Temperature Control
Window Arm
Cylinder
Thread
Cylinder Nut
Piston
Rod
T-Tube
2nd hole
Piston
Rod
T-Tube
