Step 15: Attach Temperature Control
Part 3

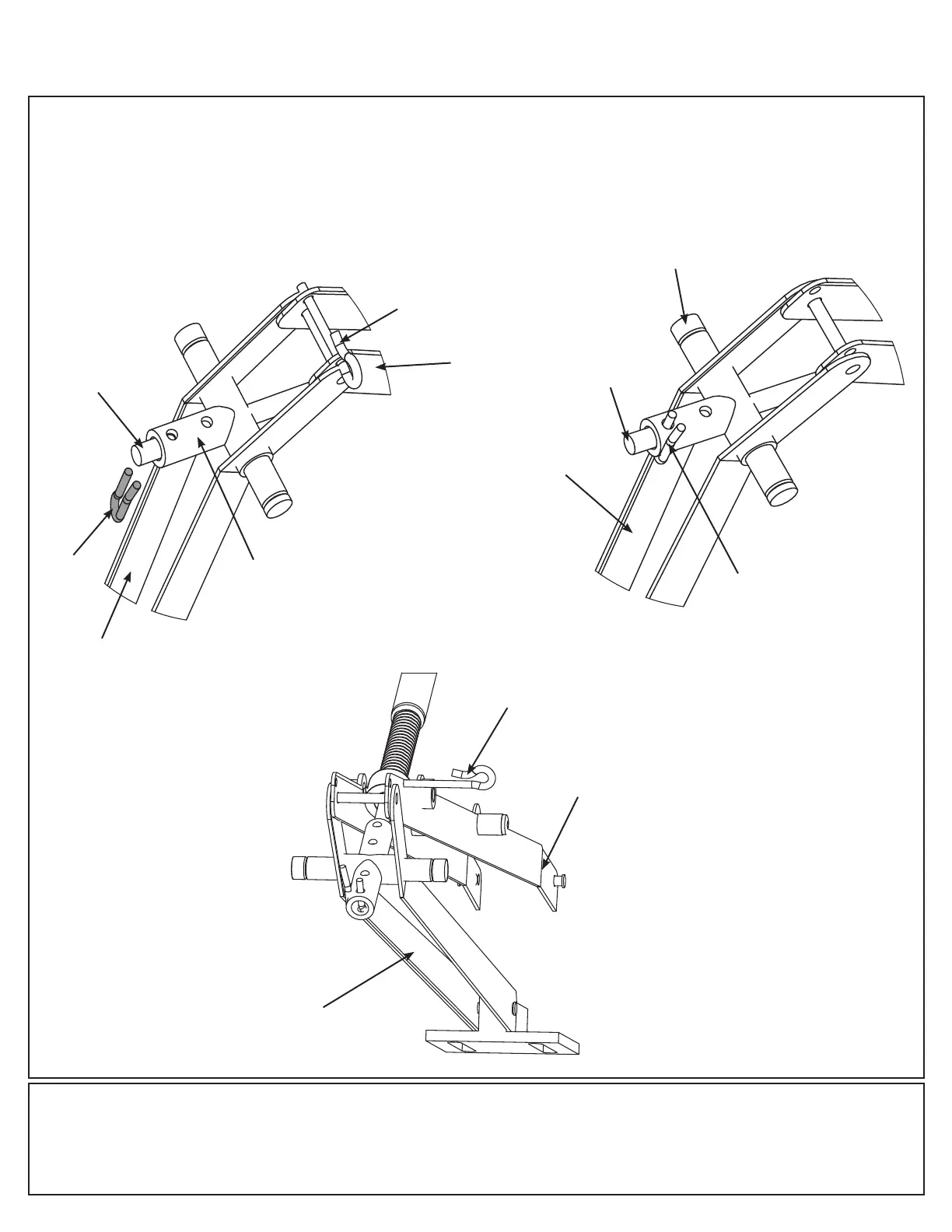

F: From the bottom of T-Tube and Piston Rod insert Cylinder Pin as shown in F15.9 and F15.10.
G: Remove Assembly Pin from Frame Arm. Keep pin for future use. (F15.11)
Frame Arm
Cylinder
Pin
Window
Arm
Piston
Rod
T-Tube
Cylinder
Pin
Piston
Rod
T-Tube
F15.9
F15.10
F15.11
Assembly
Pin
Frame Arm
Assembly
Pin
Window
Arm
Window
Arm
