Step 15: Attach Temperature Control
Part 4

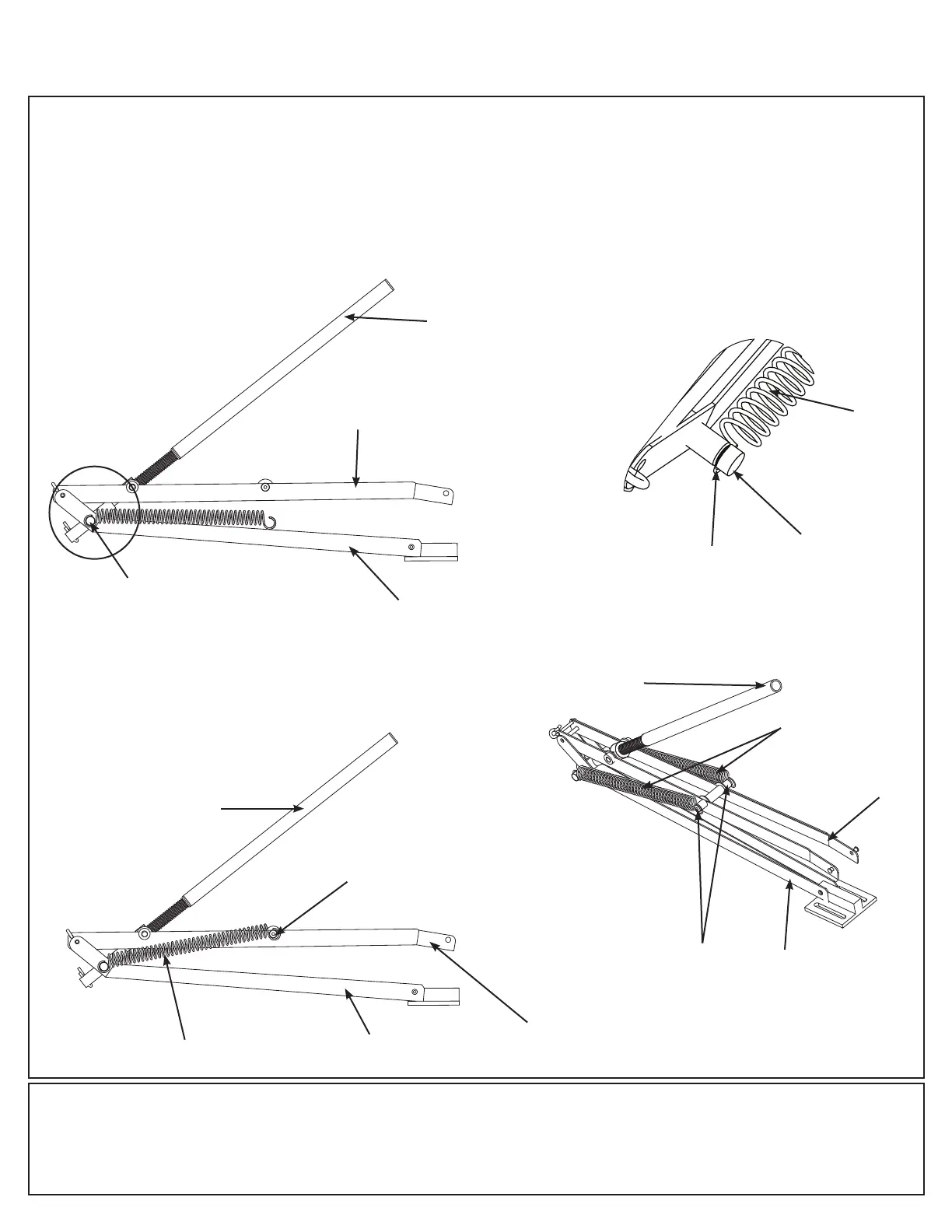

H: Re-attach Springs to T-Tube posts making sure they are seated in the grooves of the posts. (F15.12 and
F15.13)
I: Re-attach other end of Springs to Cylinder Nut posts making sure they are seated in the grooves of the posts.
(F15.14 and F15.15)
Groove
Window
Arm
Cylinder
T-Tube
Post
Spring
Cylinder
Nut Post
F15.12
F15.13
F15.14
F15.15
T-Tube Post
Frame Arm
Window
Arm
Cylinder
Window
Arm
Cylinder
Frame Arm
Frame Arm
Spring
Spring
Cylinder
Nut Post
