26

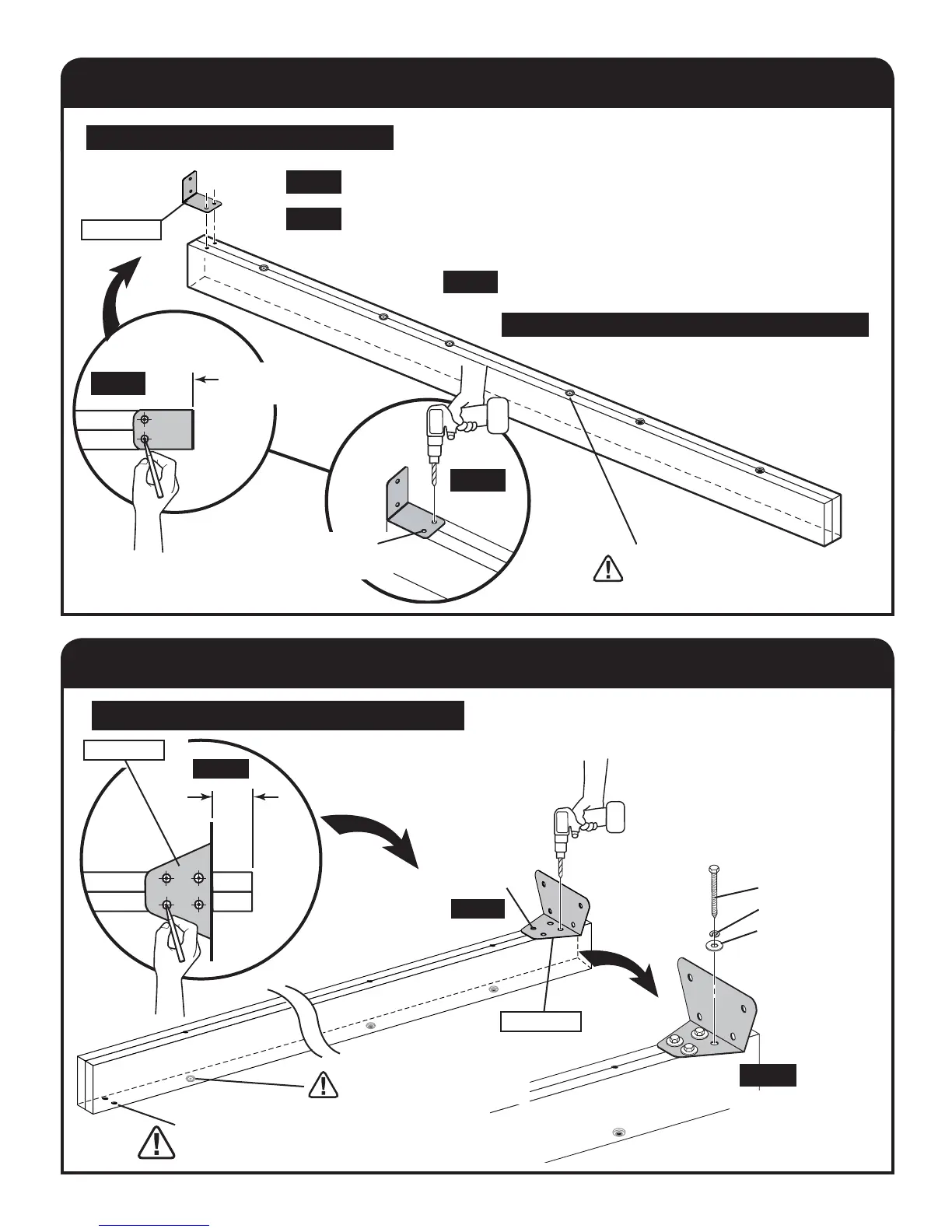

SWING BEAM PRE-DRILL
Pre drill 1/4" holes,
1-1/2” DEEP
Step 3
Step 2
Step 1
Step 3
Step 2
x1
2182
Make sure T-nuts are at top of swing beam.
Pre-drill 1/4" holes at marked bracket
hole locations, 1-1/2” DEEP.
DO NOT install 2182 Bracket at this time.
Locate 2182 Bracket, position as shown and mark
hole location.
SWING BEAM A-FRAME L-BRACKET
3”
x4
5/16 x 3" Lag Bolt
5/16" Lock Washer
5/16" Flat Washer
Pre drill 3/16" pilot holes,
2” DEEP.
Install fasteners.
2106-H
x1
Step 1
Step 2
Step 3
x1
2106-H
Swing Beam end with two
pre-drilled holes.
T-Nuts are on underside
of Swing Beam.
T-Nuts are on top side
of Swing Beam.
Flush with
end of beam.
Keep T-Nuts to top of Swing Beam.
Keep T-Nuts to under-side of Swing Beam.
DO NOT OVER-TIGHTEN LAG BOLTS
