Yardline 4130 - Swing Hangers - Install

27

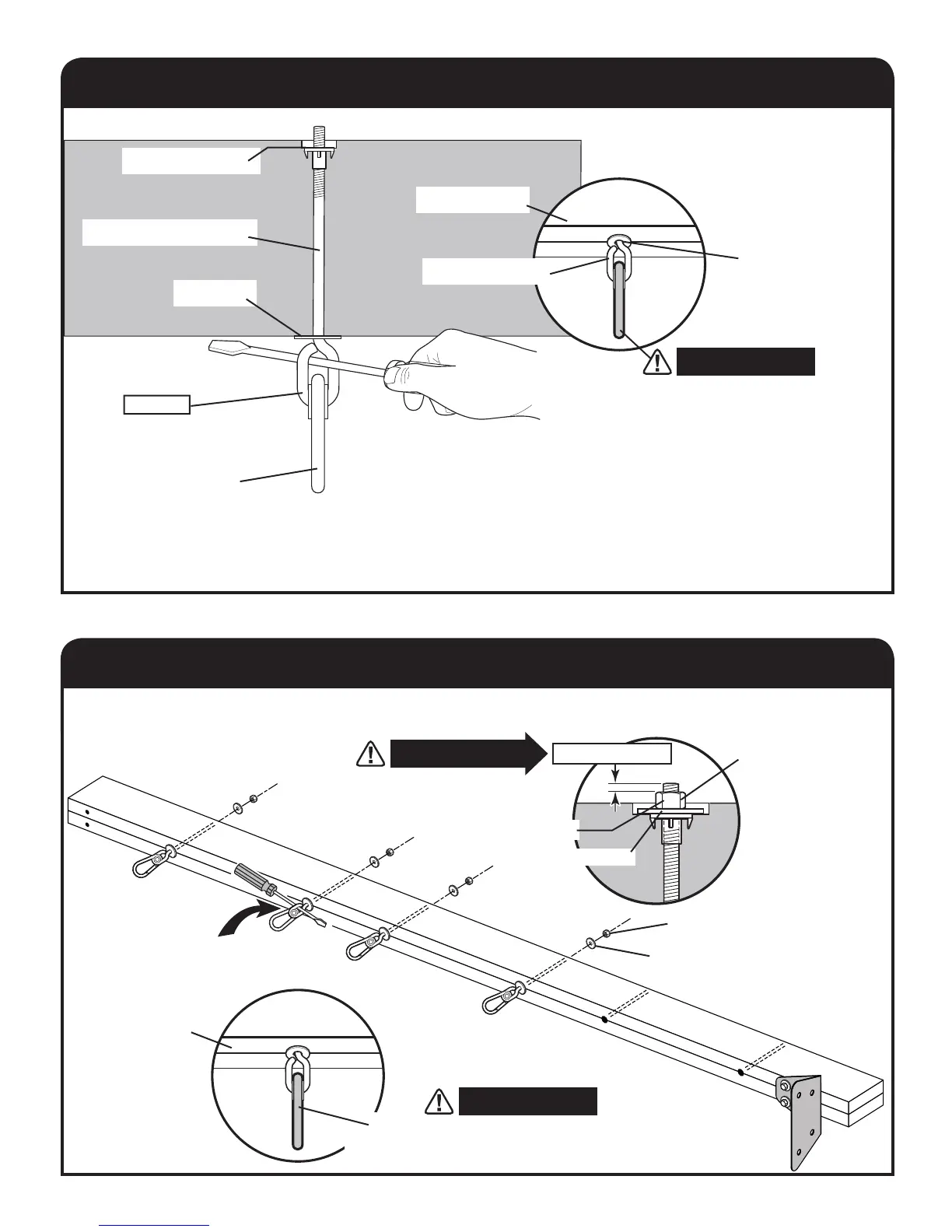

SWING BEAM SWING HANGERS - INSTALL
Insert Swing Hanger and hand-tighten until hanger meets washer.
Use a screwdriver to turn swing hanger until T-Nut is tightly
seated and swing hanger is snug against washer.
Swing Hanger Bolt
T-Nut seated
Hanger is
tightened up
to washer.
Spring Clip
2347
Swing Hanger
x4
Swing Hanger
Swing Beam
Washer
Final position of each Spring Clip is
perpendicular to swing beam.
IMPORTANT!
SWING BEAM SWING HANGERS
Lock Nut
1-3/8"
Washer
2 Threads MIN.
Use a socket
wrench to tighten
Lock Nut securely
against washer.
Swing Hanger Bolt must protrude at least
TWO Threads beyond Lock Nut.
IMPORTANT!
Lock Nut
1-3/8" Washer
HOLD position of
Swing Hanger while
tightening Lock Nut.
Final position of each Spring Clip is
perpendicular to swing beam.
Swing Beam
IMPORTANT!
