Yardline 4130 User Manual

37

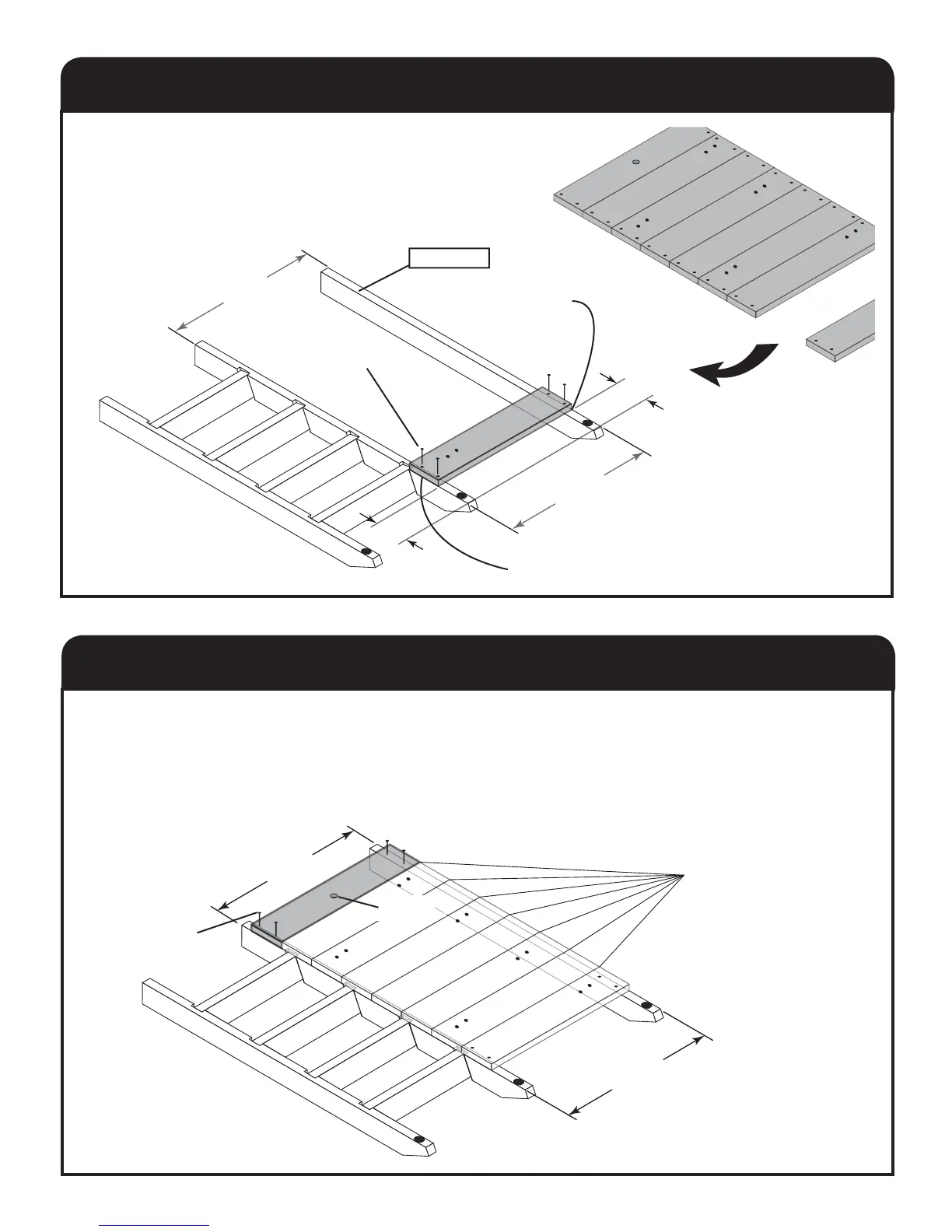

ROCK WALL ASSEMBLE
1
3
2
4
5
6
7
8
9
2
Turn all planks over to original position.
Align two Rails parallel and maintain dimension shown.
Position Plank 2 as shown and attach to Rails.
- Do not attach any other planks at this time.
5-1/4”
22-1/2”
22-1/2”
2-1/2” Screws x4
Flush
Flush
2 x 4 x 51”
x1
2320-MS
5-1/4”
Outside
Dimension
Outside
Dimension
ROCK WALL ASSEMBLE
2
2
3
4
5
6
7
8
9
Place Planks 3 through 9 onto Rails, flush to each other.
With all Planks flush and snug, Secure Plank 9 ONLY
using 4 screws. Maintain dimension shown.
- Do not attach any other planks at this time.
All flush
22-1/2”
22-1/2”
2-1/2” Screws
x4
HOLE
