Yardline 4130 User Manual

36

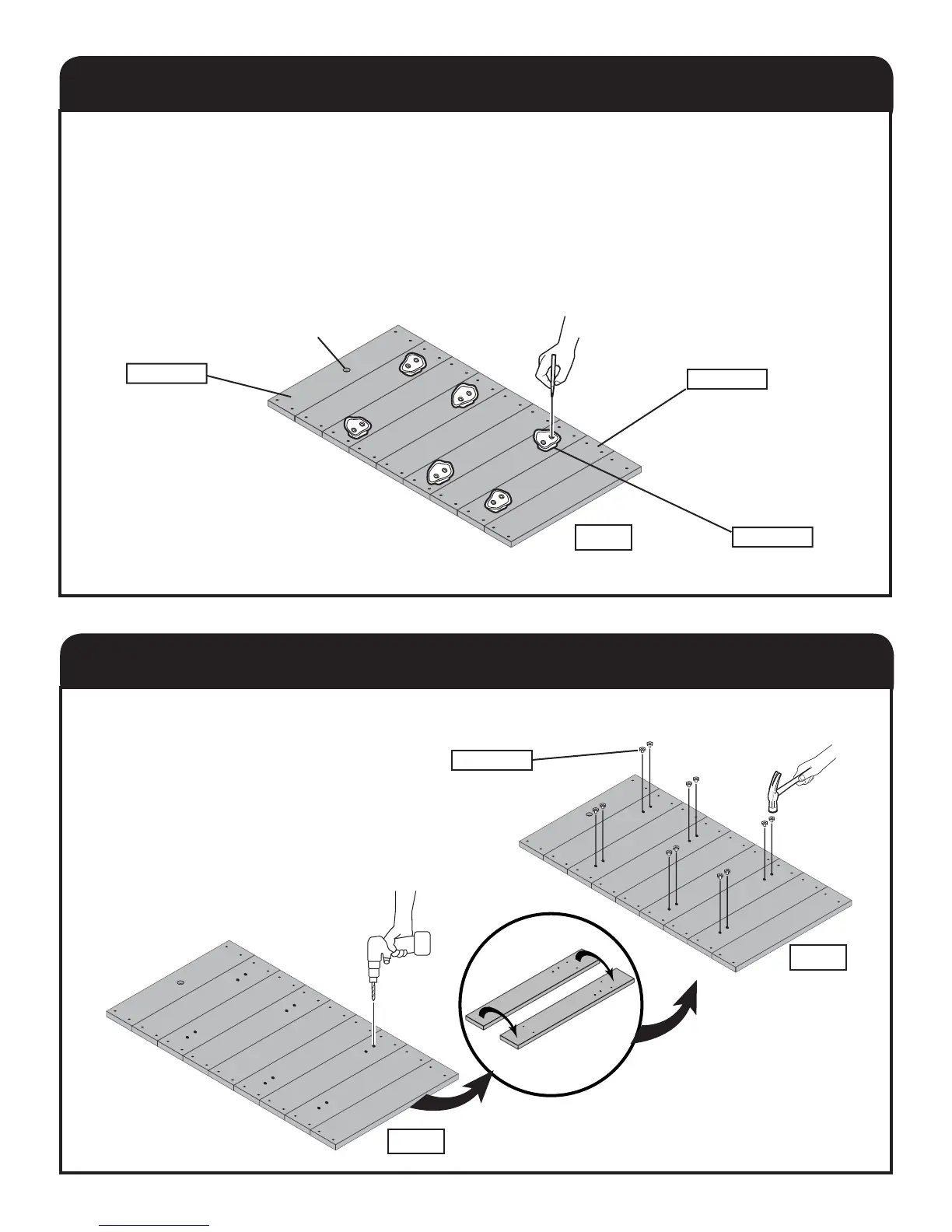

ROCK WALL ASSEMBLE
1
2
3
4
5
6
7
8
9
Place and align planks parallel on a level surface.
We recommend a soft surface to protect planks.
*Hint: Number the order of each plank for correct re-orientation, top to bottom.
Mark parts on back side or use masking tape.
Arrange the Rocks in an attractive and practical fashion. Position Rocks between
pre-drilled holes in planks. DO NOT position Rocks over any pre-drilled holes.
Mark hole position of each Rock in final decided position.
x8
x1
5/4 x 6 x 22-1/2”
5/4 x 6 x 22-1/2”
2360-MS
2392-MS
2338
x1 BAG
TOP
HOLE
ROCK WALL ASSEMBLE
Remove Rocks and drill 1/4” holes through all planks.
1
2
3
4
5
6
7
8
9
Flip each plank over and pound in 1/4” T-Nuts
(Included in Climbing Rock Bag) at each hole location.
1
2
3
4
5
6
7
8
9
x1 BAG
Flip each plank.
TOP
TOP
2338
