93"
16"
32"
48"
60"
72"48"
88"
104"
120"
48"72"
(236,2 cm)
(40,6 cm)
1-1/2"
(3,8 cm)
(81,3 cm)
(121,9 cm)
(152,4 cm)
(182,9 cm)
(121,9 cm)
(223,5 cm)
(264,2 cm)
(304,8 cm)
(121,9 cm)(182,9 cm)
3" (7,6 cm)

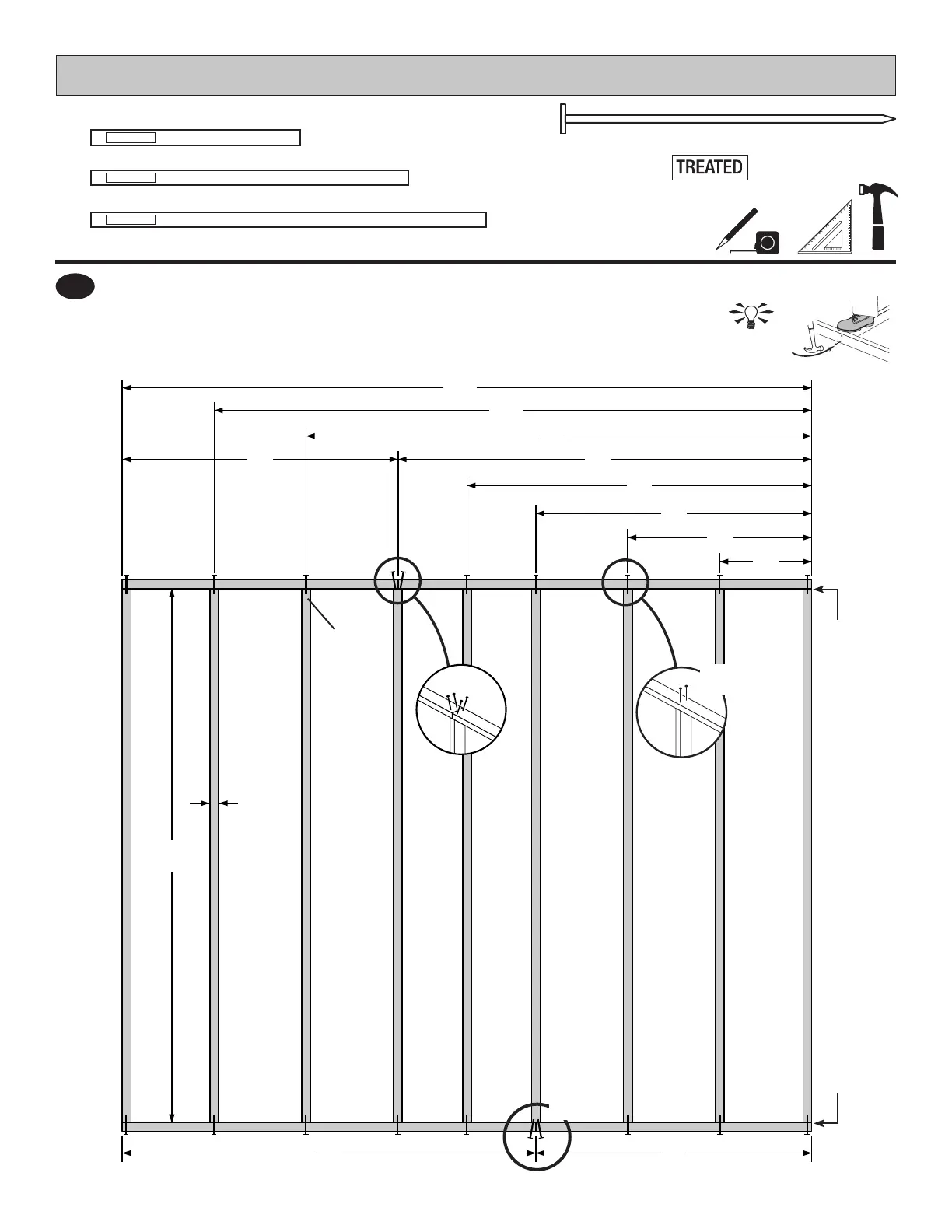

Arrange parts as shown on at surface. Measure and mark each dimension from end of boards.
Secure with (2) 3" nails at each mark and (4) nails at seams.
PARTS REQUIRED:
Flush
at ends
NOTE:
FLOOR FRAME
HINT:
x40
2
Flush
at ends
Seam
Center
on marks
Seam
Nails
x2
2 x 4 x 48" (5 x 10 x 122 cm)
TREATED
x2
2 x 4 x 72" (5 x 10 x 183 cm)
TREATED
2 x 4 x 93" (5 x 10 x 236,2 cm)
x9
TREATED
To Next Page
