Nominal Board Size Actual Size

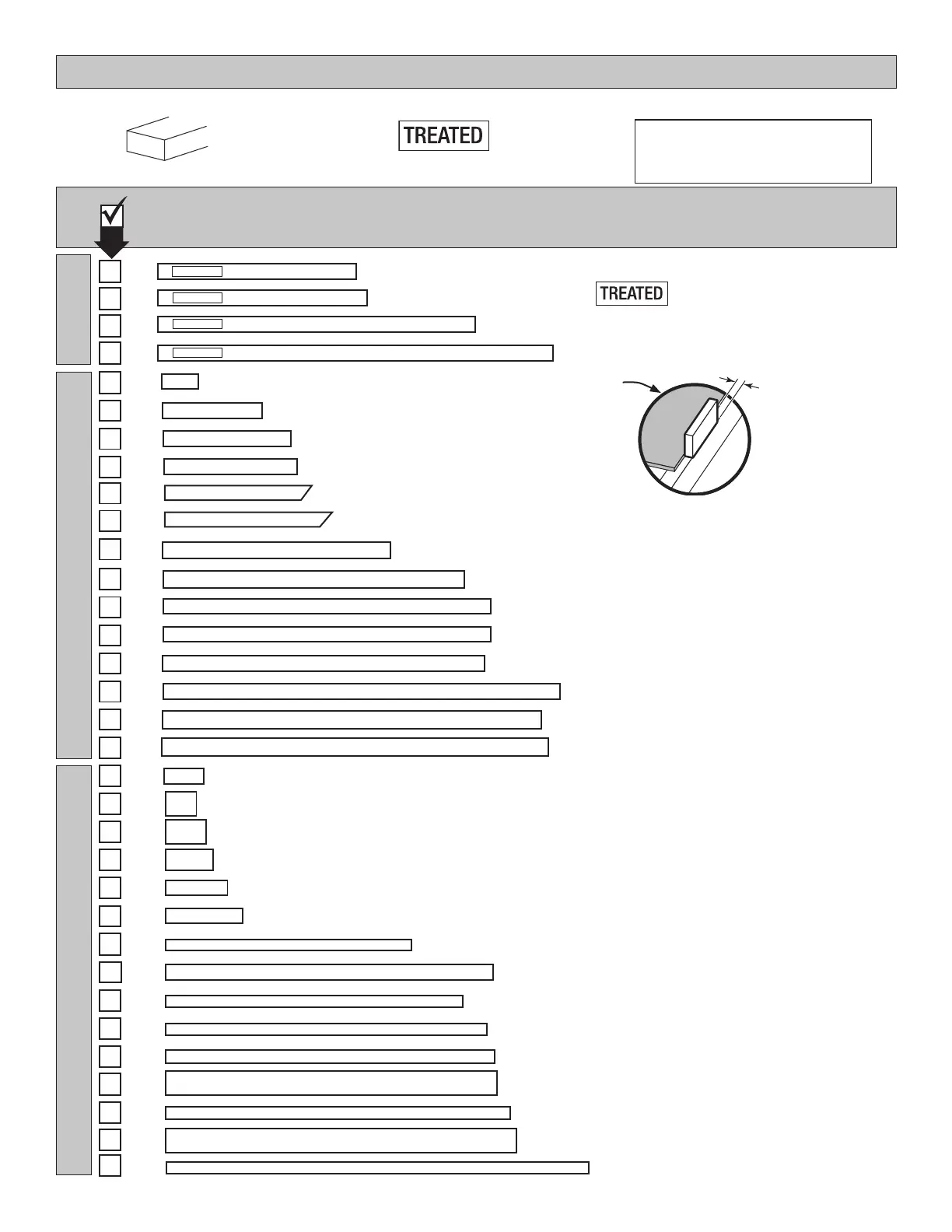

PARTS IDENTIFICATION AND SIZES
RS
RS
Part identication
letters are stamped on some parts.
Check these locations for
part stamp.
Treated lumber is stamped:
All treated lumber
is stamped:
WALLS
x24
2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)
UM
x4
2 x 4 x 46-1/2" (5,1 x 10,2 x 118,1 cm)
OP
PARTS LIST
TRIM
x4
3/8 x 1-3/4 x 67-9/16" (1 x 4,4 x 171,6 cm)
x2
3/8 x 3-1/8" x 79-3/4" (1 x 7,9 x 202,6 cm)
x2
3/8 x 3-1/8" x 71-1/4" (1 x 7,9 x 181 cm)
x4
3/8 x 1-3/4 x 70-1/2" (1 x 4,4 x 179,2 cm)
UN
x4
2 x 4 x 94-1/2" (5,1 x 10,2 x 240 cm)
1 x 3 x 5" (2,5 x 7,6 x 12,7 cm) Gauge Block for 3/4" (1,9 cm) measurement
x1
GAA
3/4"
(1,9 cm)
1 x 4................ 3/4" x 3-1/2" (1,9 x 8,9 cm)
2 x 4..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2 x 3..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1 x 3................ 3/4" x 2-1/2" (3,8 x 6,3 cm)
x1
19/32 x 3-1/2 x 65-1/4" (2,5 x 8,9 x 165,7 cm)
LHC
x2
3/8 x 5-3/16 x 71-1/4" (1 x 13,2 x 181 cm)
x2
3/8 x 5-3/16 x 79-3/4" (1 x 13,2 x 202,6 cm)
x2
2 x 6 x 3-5/8" (5,1 x 15,2 x 9,2 cm)
LUA
x2
2 x 6 x 5-1/4" (5,1 x 15,2 x 13,3 cm)
AYB
x2
3/8 x 2 x 5" (1,0 x 5,1 x 12,7 cm)
x2
3/8 x 4-1/8 x 8-1/2" (1,0 x 10,5 x 21,6 cm)
OY
x1
2 x 3 x 72" (5,1 x 7,6 x 182,9 cm)
TM
x2
2 x 4 x 72" (5,1 x 10,2 x 182,9 cm)
x2
5/8" x 1-1/2" x 46-3/4" (1,6 x 3,8 x 118,7 cm) OSB
x2
5/8" x 1-1/2" x 96" (1,6 x 3,8 x 243,2 cm) OSB
FLOOR
2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
TP
x1
x2
19/32 x 3-1/2 x 18-1/2" (1,5 x 8,9 x 47 cm)
TNE
x2
19/32 x 3-1/2 x 11-1/2" (1,5 x 8,9 x 29,2 cm)
UAF
x9
2 x 4 x 42" (5 x 10 x 106,7 cm)
TREATED
2 x 4 x 48" (5 x 10 x 122 cm)
TREATED
x4
x4
2 x 4 x 72" (5 x 10 x 183 cm)
TREATED
2 x 4 x 93" (5 x 10 x 236,2 cm)
x9
TREATED
x2
2 x 4 x 92-5/8" (5,1 x 10,2 x 235,3 cm)
TJ
JBD
x2
2 x 4 x 20-3/8" (5,1 x 10,2 x 51,8 cm)
x1
2 x 4 x 85-1/4" (5 x 10,2 x 216,5 cm)
CYA
x1
2 x 4 x 27-3/4" (5,1 x 10,2 x 70,5 cm)
BXC
x2
2 x 4 x 28-1/2" (5,1 x 10,2 x 72,4 cm)
QR
x2
2 x 4 x 40-15/16" (5,1 x 10,2 x 86,4 cm)
FOB
x2
2 x 4 x 34" (5,1 x 10,2 x 86,4 cm)
