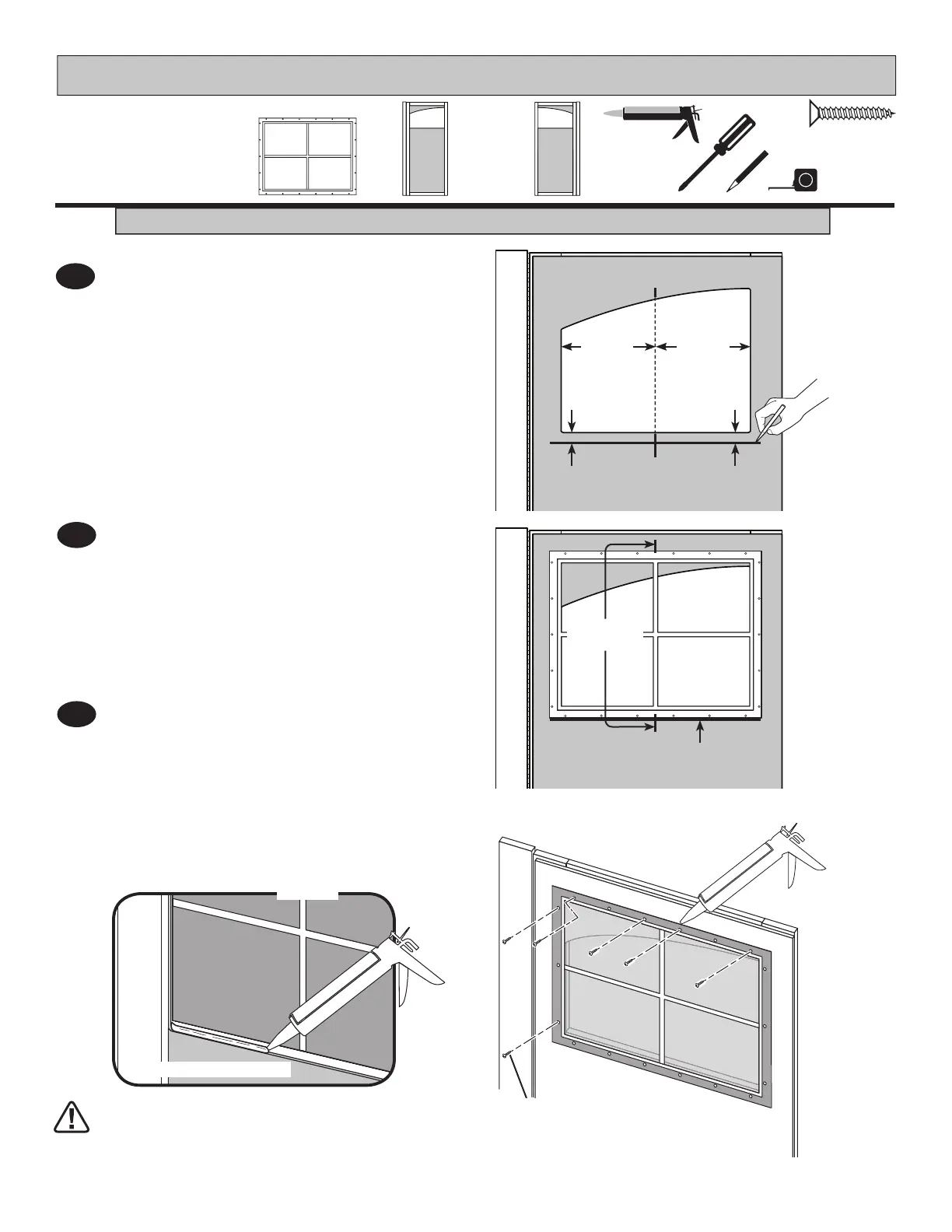

Place window ush to the measured line.
Center the window across the door panel .
Align center of window to center lines.
Seal window with high quality exterior-grade caulk
behind frame before installing window .
Fasten window with (2) 3/4" screws at the hinge
side and with (4) 3/4" screws across top of
window .
2
3
PARTS REQUIRED:
DOOR TRANSOM WINDOWS
3/4" (1,9 cm)
x14
x2
1
Working rst with the right door, measure 1-1/8"
from bottom of opening at two locations .
Mark each measurement.
Scribe a line across door panel.
Mark center of window opening at top and bottom.
x1
Left Door
x1
Right Door
BACK SIDE OF RIGHT DOOR
(2,9 cm)
Flush window
to line
(2,9 cm)
RIGHT DOOR
Screws
You must caulk completely around window
frame and all exposed door panel edges
and trim to validate your warranty.
Use a paintable exterior rated caulk.
At front side of door, apply caulk along bottom edge
of window .
FRONT OF DOOR
CENTER
on lines
CENTER CENTER
Caulk between
frame and door.
To Next Page
