No. Description QTY.
1 Grip 1
2 Upper Handle 1
3 Throttle Control 1
4 Screw M5×35 1
5 Flat Washer 5 1
6 Spring 2
7 Lock Nut M6 4
8 Bolt M6×40 2
9 Bolt M6×50 2
10 Flat Washer 6 4
11 Wheel Kit Pothook 2
12 Bolt M10×70 2
13 Flat Washer 10 6
14 Rubber Sleeve 2
15 Lower Handle Weldment 1
16 Nut M10 3
17 Bolt M10×30 4
18 Link Plate 2
19 Nut M10 12
20 Wheel Bracket 1
21 Pin 2.5×25 2
22 Flat Washer 12 4
23 Wheel 2
24 Oil Drain Pipe 1
25 Washer 10 1
26 Engine 1
27 Belt Guard Bracket 1
28 Bolt M8×20 2
29 Centrifugal Clutch 1
30 Key 5×5×35 1
31 Small Pulley Plate 2
32 Lock Washer 8 8
33 Bolt M8×25 w/glue 1
34 V-Belt 2
35 Belt Guard 1
36 Bolt M8×20 w/glue 3
37 Nut M8 4
38 Flat Washer 8 5
39 Bolt M8×16 1
40 Limited Block 1
No. Description QTY.
41 Handle Shock Absorber 1
42 Engine Base 1
43 Washer 38×11×3 4
44 Bolt M8×45 2
45 Nut M8 2
46 Bolt M8×40 4
47 Shock Absorber 4
48 Plug 1
49 Washer 14 1
50
Base Plate 1
51 Bolt M6×20 12
52 Bearing Cover - Right 1
53 Housing Washer 2
54 Ball Bearing 2
55 Exciter Shaft 1
56 Bearing Cover - Left 1
57 Washer FB30×42×6F 1
58 Pulley 1
59 Key B6×18 1
60 Bolt M8×14 1
61 Spring 2
62 Clutch Lining 4
63 Clutch Pulley Hub 1
64 Clutch Pulley 1
65 Ball Bearing 1
66 Snap Ring 1
67 Circlip 1

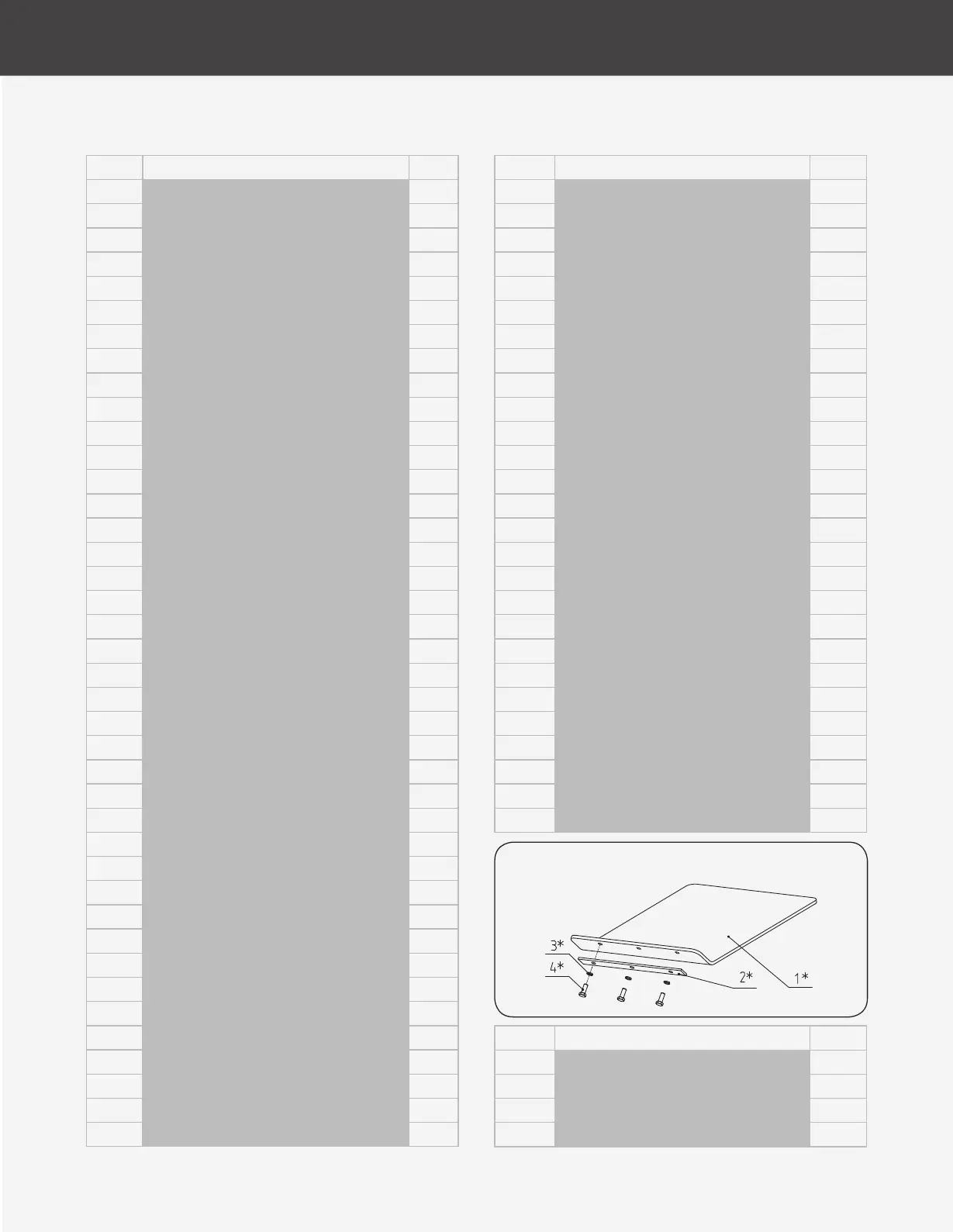

YC1160 PARTS LIST
No. Description QTY.
1* Paving Pad 1
2* Clamp Plate 1
3* Lock Washer 10 3
4* Bolt M10×20 3
Optional Paving Pad Kit - YCP370
20
Plate Compactor
»
Operator’s Manual
YC0850PM01 - 1706
Parts List
|
