YARDMAX YD4103 User Manual

* *
*****
**
*
***
*
* * * * * *
*
*
*
* * * * * *
* *
****
*
*
*
*
*
*
*
*
*
*
*
PLOW BLADE (OPTIONAL)
24
Power Wheelbarrow
»
Operator’s Manual
YD4103PM02 - 1706

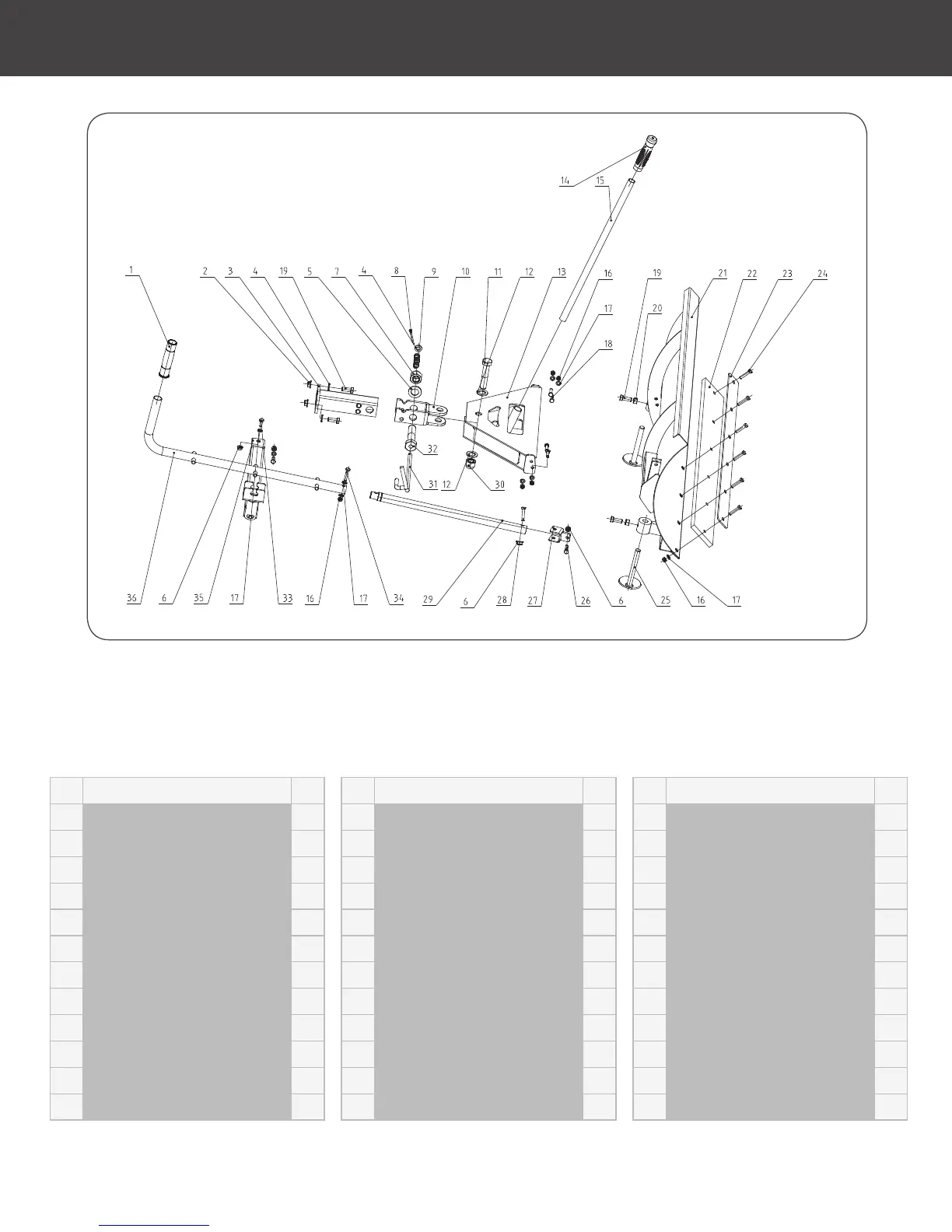

Parts Diagram & Parts List
|
No. Description Qty
13* Connecting Bracket 3 1
14* Handle Sleeve 2 1
15* Handle Grip 2 1
16* Lock Nut M8 11
17* Washer8 14
18* Bolt M8x30 4
19* Bolt M12x30 4
20*
Nut M12 2
21* Blade Weldment 1
22* Blade Plate 1
23* Shave Plate 1
24* Bolt M8x40 6
No. Description Qty
25* Base 2
26* Bolt M8x35 1
27* Connecting Bracket 4 1
28* Bolt M8x50 1
29* Connecting Pipe 1
30* Lock Nut M20 1
31* Limiter 1
32* Bolt M24x110 1
33* Bolt M8x20 2
34* Bolt M8x40 1
35* Connecting Bracket 5 1
36* Handle Grip 1 1
No. Description Qty
1* Handle Sleeve 1 1
2* Nut M12 2
3* Connecting Bracket 1 1
4*
Washer12 2
5* Washer24 1
6* Nut M8 4
7* Lock Nut M24 1
8* Pin 4x40 1
9* Spring 1
10* Connecting Bracket 2 1
11* Bolt M20x95 1
12* Washer20 2
OPTIONAL PLOW BLADE
PARTS LIST

YARDMAX YD4103 Specifications

General

Brand	YARDMAX
Model	YD4103
Category	Farm Equipment
Language	English
